Controls; Joystick - Magic Mobility R-NET CJSM2 User Manual

r-net user guide
4

CONTROLS

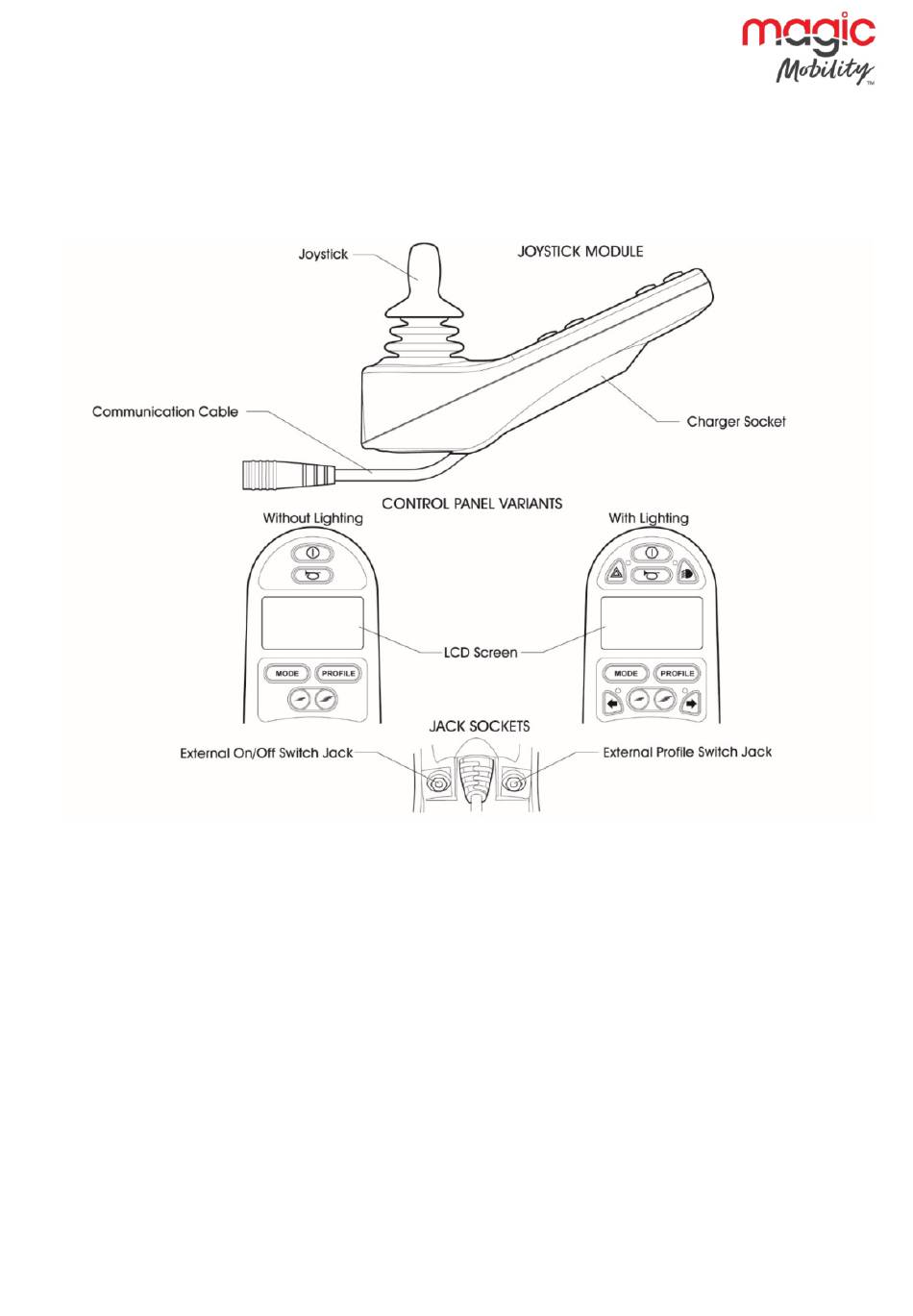

The R-net control system has two versions of Joystick Module – with and without lighting control. Most of the
controls are common to both however, the lighting buttons are only included on the Joystick Module with
lighting control. Each of the controls is explained within this section.
4.1

Joystick

The primary function of the joystick is to control the speed and direction of the wheelchair. The further you
push the joystick from the centre position the faster the wheelchair will move. When you release the joystick,
the brakes are automatically applied.
If the wheelchair is fitted with actuators, the joystick can also be used to move and select actuators, refer to
section 5.5 for more details.
9
5940A R-net User Guide DCR1266 magicmobility.com.au
