Top bar

6.1.1 BATTERY INDICATOR
Steady:
Flashing Slowly:
Stepping Up:
Refer to section 12 for a description of how to read the Battery Gauge.
6.1.2 FOCUS
6.2

Base bar

6.2.1 CURRENT PROFILE
6.2.2 MOTOR TEMPERATURE
6.2.3 CONTROL SYSTEM TEMPERATURE
6.3

Main screen area

Drive Screen
6.3.1 PROFILE NAME
18
5940A R-net User Guide DCR1266

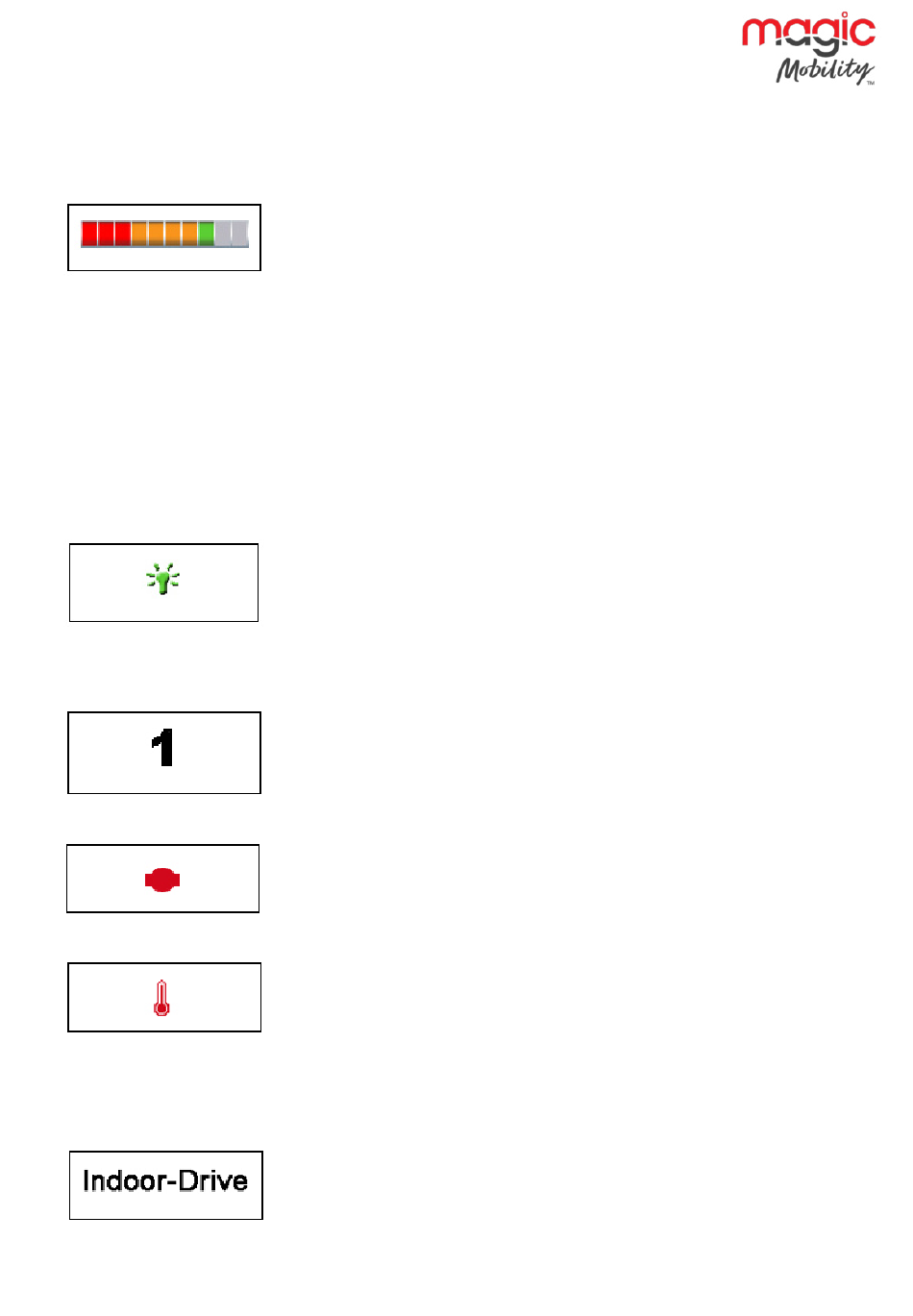

This displays the charge available in the battery and can be used to alert the user
to the status of the battery.
This indicates that all is well.
The control system is functioning correctly, but you should charge the battery as soon
as possible.
The wheelchair batteries are being charged. You will not be able to drive the wheelchair
until the charger is disconnected and you have switched the control system off and on
again.
When the control system contains more than one method of direct control, such
as a secondary Joystick Module or a Dual Attendant Module, then the Module
that has control of the wheelchair will display the In Focus symbol.
The currently selected Profile is shown in numeric form.
This symbol is displayed when the control system has intentionally reduced the
power to the motors, in order to protect them against heat damage.
This symbol is displayed when the control system has intentionally reduced its
own power, in order to protect itself against heat damage.
This is a text string that displays the name of the currently selected Profile.
