r-net user guide
5.3.1
IDENTIFIED MODULE
This identifies which module of the control system has registered the problem, such as:
PM
Power Module
JSM
Joystick Module
ISM
Intelligent Seating/lighting Module
5.3.2
TRIP TEXT
The Trip Text gives a brief description of the trip type.
5.3.3
TRIP CODE
The 4-digit code displayed gives the exact trip that has been recorded.
5.3.4
DIAGNOSTIC PROCEDURE
Please follow this procedure:
Read and note the Trip Text displayed, the identified Module and the Trip Code.
Switch off the control system.
Make sure that all connectors on the listed Module and the wheelchair are mated securely.
Check the condition of the battery.
Note the Trip Text description, and take the required action.
Switch on the control system again and try to drive the wheelchair. If the safety circuits operate again,
switch off and do not try to use the wheelchair. Contact your service agent.

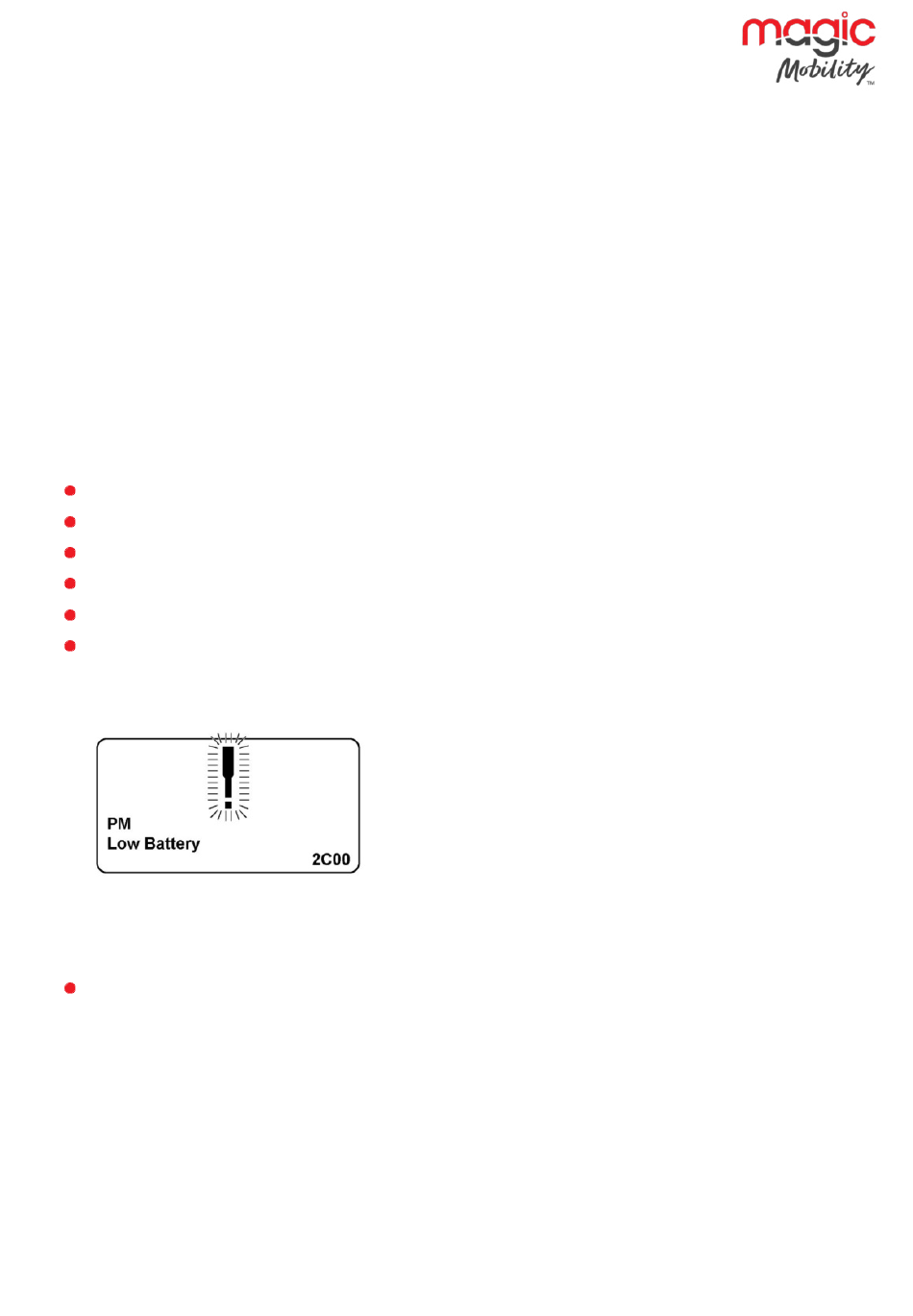

Example:
Identified Module
Trip Text
Trip Code
This means the battery needs charging or there is a bad connection to the battery.
Check the connections to the battery. If the connections are good, try charging the battery.
5.4
Locking the control system
The Control System can be locked in one of two ways. Either using a button sequence on the keypad or with a
physical Key. How the Control System is locked depends on how the wheelchair manufacturer has
programmed the system.
15
5940A R-net User Guide DCR1266
Power Module
Low Battery
2C00
