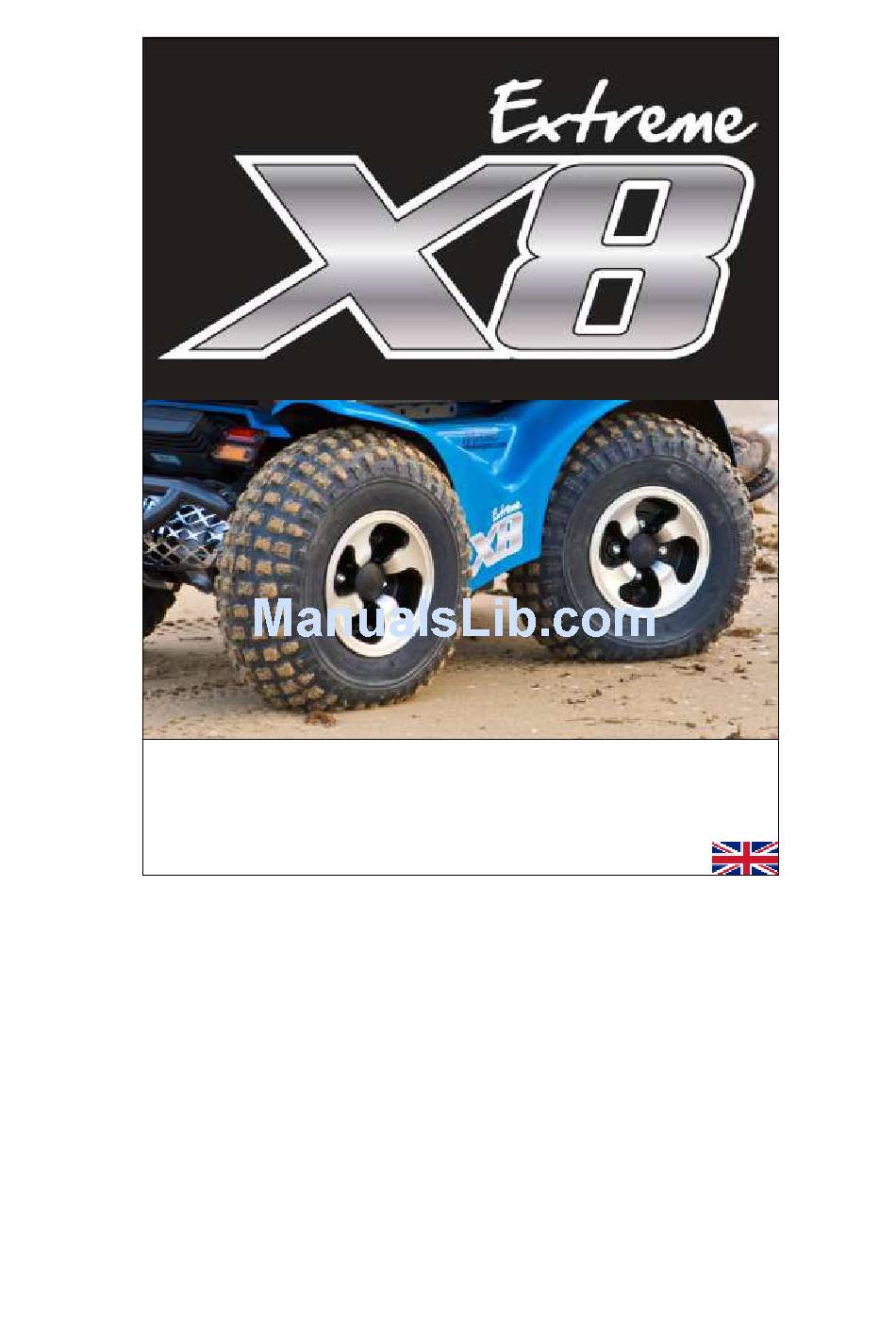

  • Page 1 Owner’s Manual X8 with G90 Page 1...
  • Page 2 YouTube: MAGIC MOBILITY OZ Page 2...

  • Page 3: Table Of Contents

    Contents Power Wheelchair Owner’s Manual ..................5 Intended Use ......................... 5 Safety and Damage Warnings ..................... 5 Safety ..........................6 Transfers ........................6 Motor Vehicle Transport ....................7 Weight Limitations ......................7 Stairs and Escalators ..................... 7 Transportation Products for your wheelchair ..............7 Public Streets and Roadways ..................
  • Page 4 Charging Procedure ....................20 To get the maximum range from your batteries: ..............21 Public Transportation ....................21 Battery Disposal and Recycling ................... 21 Care & Maintenance ......................21 General Guidelines ...................... 22 Batteries ........................22 Tyres ........................... 22 8.3.1 Tyre Inflation ......................

  • Page 5: Power Wheelchair Owner's Manual

    Magic Mobility is not liable for damage to property or personal injury arising out of unsafe use of a power chair. Magic Mobility is also not liable for any property damage or personal injury arising out of the failure of any person and/or user to following the instructions and recommendations set forth in this manual.

  • Page 6: Safety

    Using your Magic Mobility product safely also depends upon your own good judgement and/or common sense, as well as that of your provider, caregiver, and/or health professional. Magic Mobility is not responsible for injuries and/or damage resulting from any person’s failure to...

  • Page 7: Motor Vehicle Transport

    STOP! Trying to negotiate stairs or escalators may result in damage to your power chair. Transportation Products for your wheelchair If it is necessary to use a transportation product such as a vehicle hoist or lift, Magic Mobility recommends that the manufacturer’s instructions and specifications are closely reviewed before using that product.

  • Page 8: Public Streets And Roadways

    Public Streets and Roadways WARNING! You should not operate your power chair on public streets and roadways. This is in accordance with local traffic laws, which vary by country. Please check your local traffic laws. Be aware that it may be difficult for traffic to see you when you are seated on your power chair.

  • Page 9: Maximum Recommended Incline

     Avoid potentially hazardous inclines e.g. areas covered with snow, ice, mud, cut grass, or wet leaves.  As with all four wheel driving adventures, you should always be sure that the terrain ahead of you is clear of unexpected hazards. We advise that you have someone with you who can check ahead for any hazards.

  • Page 10: Electromagnetic Fields (Further Information Is In Section 10.6)

    The following advice is recommended for your safety:  Reduce cornering speed  Reduce steering angle  Beware of uneven, rough and slippery terrain  Avoid turning on inclined surfaces  Be aware of changing surfaces - such as passing from a paved area to a gravel area at high speed while turning ...

  • Page 11: Prescription Drugs/Physical Limitations

    3.15 Prescription Drugs/Physical Limitations Consult your physician if you are taking prescribed or over-the-counter medication or if you have certain physical limitations. WARNING! Some medications and limitations may impair your ability to operate your power chair in a safe manner, possibly resulting in personal injury to yourself and others.

  • Page 12: Specifications

    Information regarding the performance attributes and controlled testing results of the power chair may be obtained from the power chair manufacturer. If you would like access to this information, please contact your Magic Mobility Dealer. 5 Operating Instructions The speed and direction of the power chair is controlled with by the joystick ...

  • Page 13: Performance Adjustments

    Positioning If your power chair was configured at your Magic Mobility Dealer, please consult your health care professional before changing the seat position or making any other adjustment. Some adjustments may degrade your power chair’s performance and safety by changing its centre of gravity.

  • Page 14: Seat Tilt Option - If Fitted

    Rearward stability wheels when fitted to any Magic Mobility wheelchair decrease the chances of the wheelchair being able to tip rearward when the chair is inclined past its safe angle of operation. They do not provide a guarantee that the wheelchair will not and can not be tipped in a rearward or any other direction.

  • Page 15: Steering Lock Option - If Fitted

    ANSI/RESNA WC/Vol 1 – Section 19 and ISO7176-19 restraint system; if fitted. This wheelchair conforms with the requirements of ANRI/RESNA WC/19 and ISO7176-19. Magic Mobility recommends that wheelchair users are NOT transported in vehicles of any kind while in wheelchairs. The Department of Transportation has not approved any tie-down system for transportation of a user while in a wheelchair in a moving vehicle of any type.

  • Page 16: Joystick Controls

    Controller program The controller program affects speed, acceleration, deceleration, and braking. The drive mode settings are preset at the factory. If your Magic Mobility Dealer/ healthcare professional changes these settings, please make note of these changes. WARNING! Do not attempt to reprogram your chair. Only the power chair manufacturer, an authorised representative of the manufacturer, or a trained service technician should program the controller.

  • Page 17: Hand Control Joystick Operation - Figure 3 - G90A

    Hand control joystick operation – figure 3 – G90A Hand Controller DXREMG90A 6.5.1 On/Off Button To turn the power on press the On/Off button. The current battery charge will be indicated and the System Status LED will illuminate and not flash. Press the On/Off button again to turn the power off.

  • Page 18: Left Indicator (If Lights Are Fitted)

    6.5.4 Left Indicator (If Lights Are Fitted) To turn the Left Indicator on/off, press and release (‘short press’) the Left Indicator button. To toggle the Headlights on/off, press and hold (‘long press’) the Right Indicator button. 6.5.5 Mode Each press of the Mode button will increment the drive profile, up to the maximum configured value and then back to profile The current drive profile will be shown in the 7 Segment Display.

  • Page 19: Lighting Menu Mode - If Fitted (Not Standard)

    6.5.7 Lighting Menu Mode – If Fitted (Not Standard) When in Lighting Menu Mode, the 7 Segment display shows 3 horizontal lines. Moving the joystick forward will toggle the Headlights. Moving the joystick left will toggle the Left turn Indicators. Moving the joystick right will toggle the right turn Indicators.

  • Page 20: Charging

    Battery Charging We recommend using only a high quality dual rate intelligent battery charger with your power chair. Only use the supplied off-board charger unless otherwise approved by Magic Mobility. Do not use an automotive-type battery charge. Fully recharge any new batteries prior to use. Operate the power wheelchair around the house and grounds, and do not travel too far until you are accustomed to the controls.

  • Page 21: To Get The Maximum Range From Your Batteries

    When flying with your wheelchair, please call the airline for any specific information they need. Magic Mobility has a “flying with your wheelchair” fact sheet on the website that covers most questions.

  • Page 22: General Guidelines

    10-12 hours to dry. Check the joystick operation and brakes before using your power wheelchair. If there are any doubts or inconsistencies with your wheelchair, please contact your Magic Mobility dealer STOP! DO NOT leave the power wheelchair in rain or a storm of any kind.

  • Page 23: Tyre Inflation

    increasing tyre pressures. It is not recommended that tyre pressures greater than 55 kPa are used. Figure 7 - Advisory Tyre Pressures (Metric) Figure 8 - Advisory Tyre Pressures (Imperial) Note: for chairs that have a seat elevator fitted, a higher tyre pressure will give greater stability 8.3.1 Tyre Inflation Tyre pressures should be checked weekly.

  • Page 24: Upholstery

    Tyre wear varies greatly depending on usage (from months to years), but no matter what sort of time your tyres last this is mostly governed by your typical daily requirements. To achieve the most from your tyres it is important to have them correctly inflated. Always use manufacturer recommended parts.

  • Page 25: Beach, Salt Water And Coastal Areas

    Storage Store your Magic Mobility power chair in a warm dry environment. If you do not use your power chair regularly, it is recommended that the batteries be charged at least once per week.

  • Page 26: Transportation

    8.11 Annual Checks It is highly recommended to service your power chair annually. Take your power chair to your Magic Mobility Dealer to ensure it is functioning correctly (see section 9 - Servicing) 9 Servicing Please contact your Magic Mobility Dealer to arrange your annual service. Your local representative can also discuss the availability of loan or rental units during repairs and servicing.

  • Page 27: Fault Finding

    The Magic Mobility power chair has been engineered to give maximum mobility and utility. Magic Mobility offer a wide range of accessories designed to suit the power chair. Under no circumstances should the power chair be modified in any way not authorised by Magic Mobility.

  • Page 28: Electromagnetic Interference (Emi) From Radio Wave Sources

    14 inch (all-terrain low pressure knobby tyres) Weight without batteries 50kg Weight with 73Ahr batteries 106kg Magic Mobility is not able to provide technical specifications for non Magic Mobility parts, nor can we guarantee performance according to the table above. Page 28...

  • Page 29: Warranty

    12.2 Non OEM parts, assembly by a 3 party and customisation If non Magic Mobility parts are fitted to the wheelchair, Magic Mobility is not responsible for their compatibility, performance or instructions for use. Please refer to the relevant manufacturers manuals for appropriate use.

  • Page 30: Head Office And Operations

    13 Head Office and Operations 2/112 Browns Road Noble Park, Vic. 3174 Australia Phone: +61 3 8791 5600 Fax: +61 3 9701 0144 Email Address: admin@magicmobility.com.au Website: http://www.magicmobility.com.au © Copyright Magic Mobility 2014 Page 30...

  • Page 31: Appendix A - Ansi/Resna Wc/Vol 1 - Section 19 And Iso7176-19 Restraint System; If Fitted

    Appendix A - ANSI/RESNA WC/Vol 1 – Section 19 and ISO7176-19 restraint system; if fitted. The wheelchair is not provided with a wheelchair anchored belt restraint as standard. It must be requested at the time of ordering the wheelchair or it can be retrofitted later on by a Magic Mobility Representative.
  • Page 32 Magic Mobility supply either a 600mm or 700mm compatible crashworthy wheelchair anchored pelvic belt restraint when WC4;19/ISO7176;19 tie downs are requested. This belt is designed to accommodate use on either side of the vehicle.
  • Page 33 Figure 11 – Preferred and optimal zones for angles of pelvic belt restraints The belt restraint buckle of three point belt restraints must be placed in contact with the occupant’s body and away from wheelchair components Upper torso belt restraints should fit directly over, and in contact with, the middle of the shoulder.
  • Page 34 Figure 133 – Illustration of proper routing an positioning of belt restraints on the wheelchair occupant Belt restraints should be adjusted as snugly as possible, consistent with user comfort. Belt restraints should not be worn or twisted in a manner that reduces the area of contact of the belt webbing with the occupant This wheelchair has the following ratings if WC4-19/ISO7176-19 tie downs are fitted Ease of proper belt positioning: Excellent...
  • Page 35 in motor vehicles should be used to reduce the risk of serious injuries to wheelchair occupants Alterations or substitutions should not be made to the wheelchair or seating system structural members, or to its parts and components, without consulting the wheelchair manufacturer The use of postural pelvic belts attached to the wheelchair base or seat frame is encouraged during travel, but these belts should be positioned so they don’t interfere with the proper positioning of crashworthy belt restraints and...
  • Page 36 Figure 14 Recommended forward and rearward clear zones for wheelchair seated occupants Vehicle interior components that cannot be removed from the clear zones of Figure 14, or that are near the wheelchair occupant space at a level that may be contacted by a wheelchair occupant’s head during a side impact collision or a vehicle rollover, should be padded with material that complies to FMVSS 201.
  • Page 37 For people who use heavy wheelchairs transportation in larger vehicles is recommended when the option exists The wheelchair should be inspected by a manufacturer’s representative before reuse following involvement in any type of collision Care should be taken when applying the occupant restraint to position the seatbelt buckle so that the release button will not be contacted by wheelchair components during a crash Page 37...
  • Page 38 Page 38...

  • Page 39: Appendix B - Electromagnetic Interference (Emi)

    Appendix B – Electromagnetic Interference (EMI) Electromagnetic Interference (EMI) From Radio Wave Sources Powered Wheelchairs may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios and cellular phones. The interference (from radio wave sources) can cause the powered wheelchair to release its brakes, move by itself, or move in unintended directions.
  • Page 40 Do not operate hand held transceivers (transmitter-receivers), such as citizens band (CB) radios, or turn ON personal communication devices, such as cellular phones, while the powered wheelchair is turned ON. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming close to them.
