**A remote toggle replicates the function of the toggle on the MULTI-MODE ACTIVATOR and
therefore cannot be used simultaneously as they could conflict
2.2

Controls and Connections

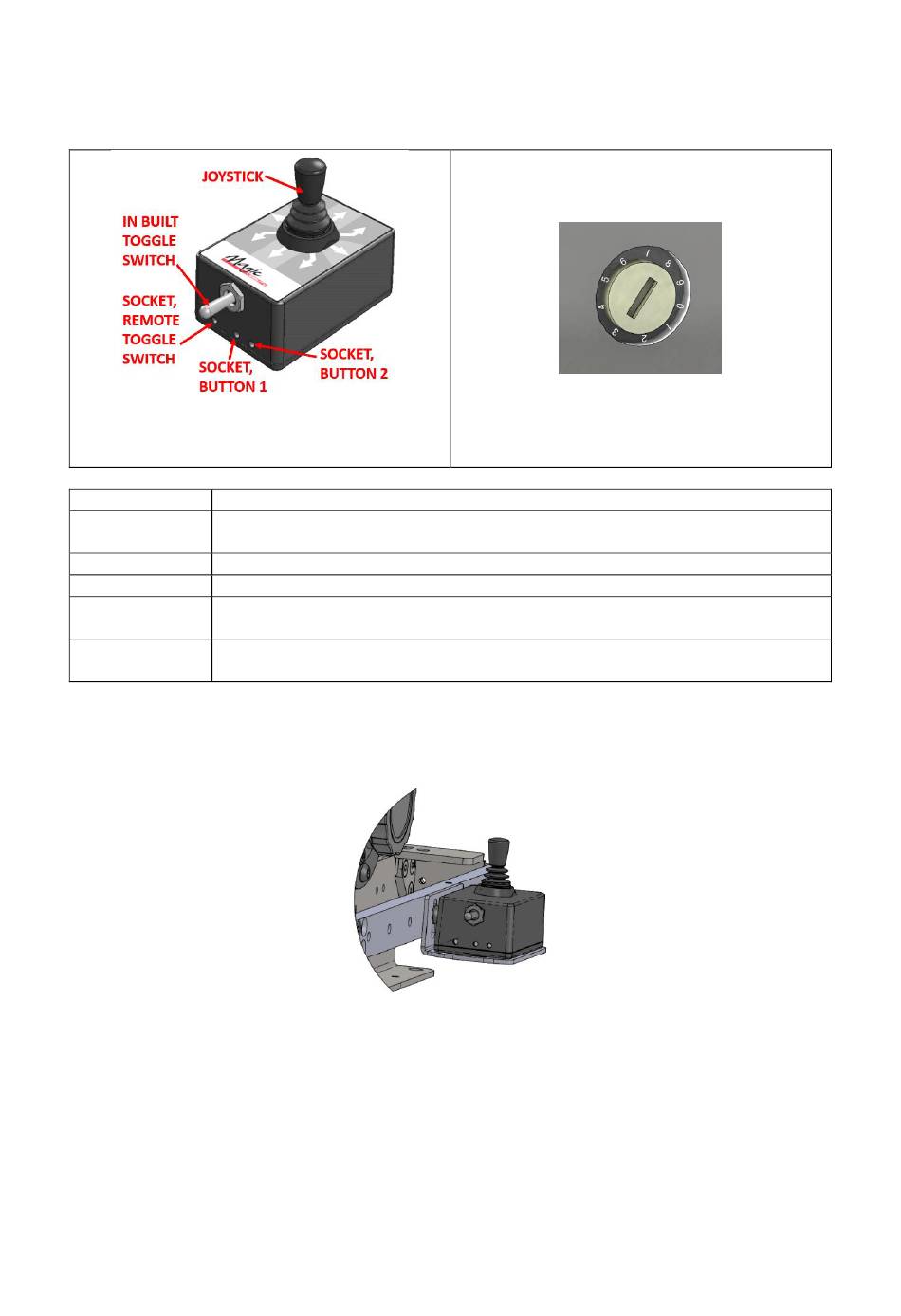

Figure 1 – Hardware: General Controls and
Connections
Item Function
Remote Toggle Plug in remote toggle switch. The switch behaves the same way as the in-built
Switch Socket toggle and drives the same functions according to the selected program
Socket 1 Plug in user button 1. Press button to drive tilt actuator
Socket 2 Plug in user button 2. Press button to drive layback actuators.
Joystick Deflect joystick in one of 8 directions to drive actuators according to the selected
program
In Built Toggle Deflect to left, centre or right to select or drive actuators according to the
Switch selected program
2.3

Mounting

The Auxilliary Switch Box can be mounted on either of the side rails next to the seat
Form 07M Multi-mode activator User Guide
© Magic Mobility
Only positions 0 to 4 contain programs
Figure 2 – Hardware: Selecting a Program
Figure 3 - Hardware: Mounting
Switch is on base of switch box
Revision No.4
Page 3 of 14
