If the trip is still present after the batteries and connections have been checked, then the Power Module may
be defective. Refer to section 5.
3.3

High battery voltage

This occurs when the control system detects that the battery voltage has risen above 35V. The most common
reasons for this are overcharging of the battery or bad connections between the control system and the
batteries.
Check the condition of the batteries and the connections to the control system.
If the trip is still present after the batteries and connections have been checked, then the Power Module may
be defective. Refer to Section 5.
3.4

Brake error

This occurs when the control system detects a problem in the solenoid brakes or the connections to them.
1505: M1 Brake Error
1506: M2 Brake Error
Check the solenoid brakes, cables and connections to the control system.
If the trip is still present after the above checks have been made, then the Power Module may be defective.
Refer to Section 5.
3.5

Motor error

This occurs when the control system detects that a motor has become disconnected.
3B00: M1 Motor Error
3C00: M2 Motor Error
Check the motors, cables and connections to the control system.
If the trip is still present after the above checks have been made, then the Power Module may be defective.
Refer to Section 5.
3.6

Inhibit active

This occurs when any of the Inhibit inputs are active and in a latched state.
Cycle the power. This will drop out of Latched Mode that might clear the trip.
Check all wiring and switches connected to the indicated Inhibits.
If the trip is still present after the above checks have been made, then the PM or ISM may be defective. Refer
to Section 5.
3.7

Joystick calibration error

This occurs when the Joystick Calibration process has not been successful.

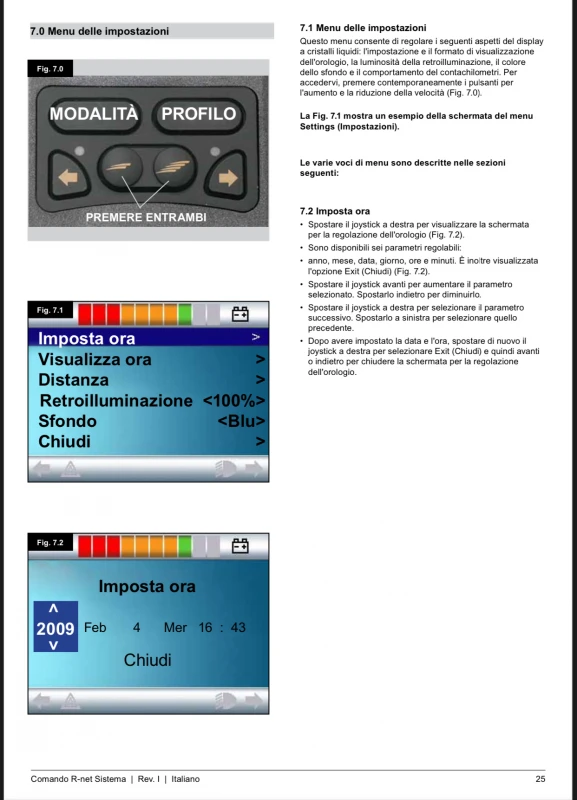

Enter OBP and attempt calibration.
If the trip is still present after the above has been attempted, then the Joystick Module may be defective. Refer
to Section 5.
