r-net user guide

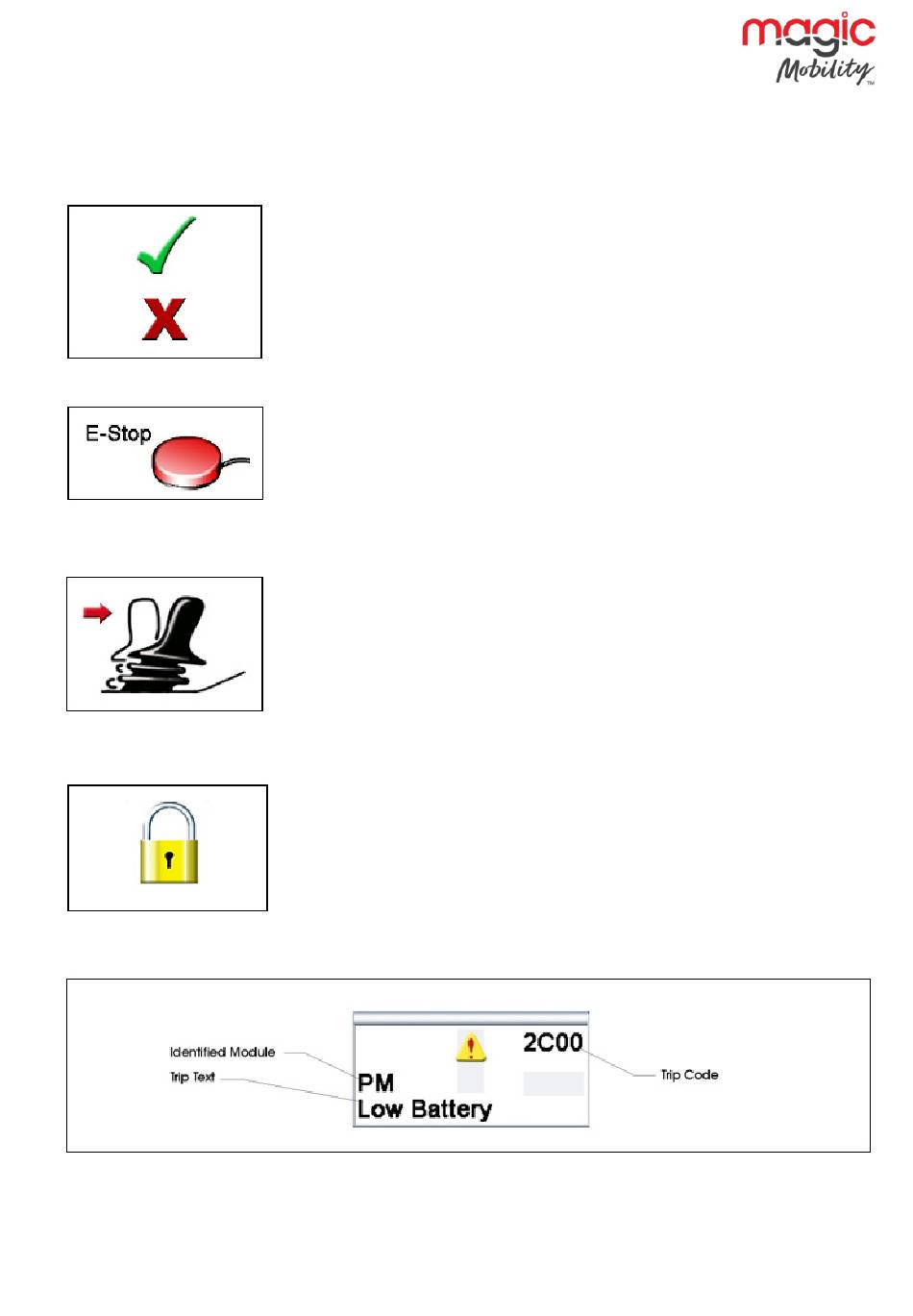

6.4.4 CROSS & TICK
These symbols will be displayed during configuration procedures.
6.4.5 E-STOP
6.4.6 JOYSTICK DISPLACED
6.4.7 CONTROL SYSTEM LOCKED
6.4.8 DIAGNOSTIC SCREEN
When the control system safety circuits have operated and the control system has been prevented from
moving the wheelchair a diagnostics screen will be displayed.
21
5940A R-net User Guide DCR1266
Process completed correctly.
Process not completed correctly.
If the External Profile Switch is activated during drive, or actuator operation, this
symbol will be displayed.
If you operate the Joystick before or just after you switch the control system on,
the screen will flash the joystick displaced screen.
You must release and centre the Joystick to resume normal operation. If you do
not release the Joystick within five seconds the wheelchair will not be able to
move, even if you release the Joystick and operate it again. The screen will
display a diagnostic screen at this time. You can reset this condition by
switching the control system off and on again.
The Control System can be locked in one of two ways. Either using a sequence
of deflections and presses with a Joystick or with a physical Key. How the
Control System is locked depends on how the wheelchair manufacturer has
programmed it.
Refer to Section 5 for a detailed description of the Locking and Unlocking
procedures.
