6.2 Alignment parameters

The "alignment point" is deined as the position inside the ticket to use for the black mark alignment.
The distance between the black mark edge and the alignment point is deined as "Black Mark Distance".
Referring to the front of the black mark, the value of "Black Mark Distance" value varies from -5 mm minimum and 99.9
mm maximum.
If the "Black Mark Distance" value is set to 0, the alignment point is set at the beginning of the black mark.
Positive values of
"Black Mark Distance"

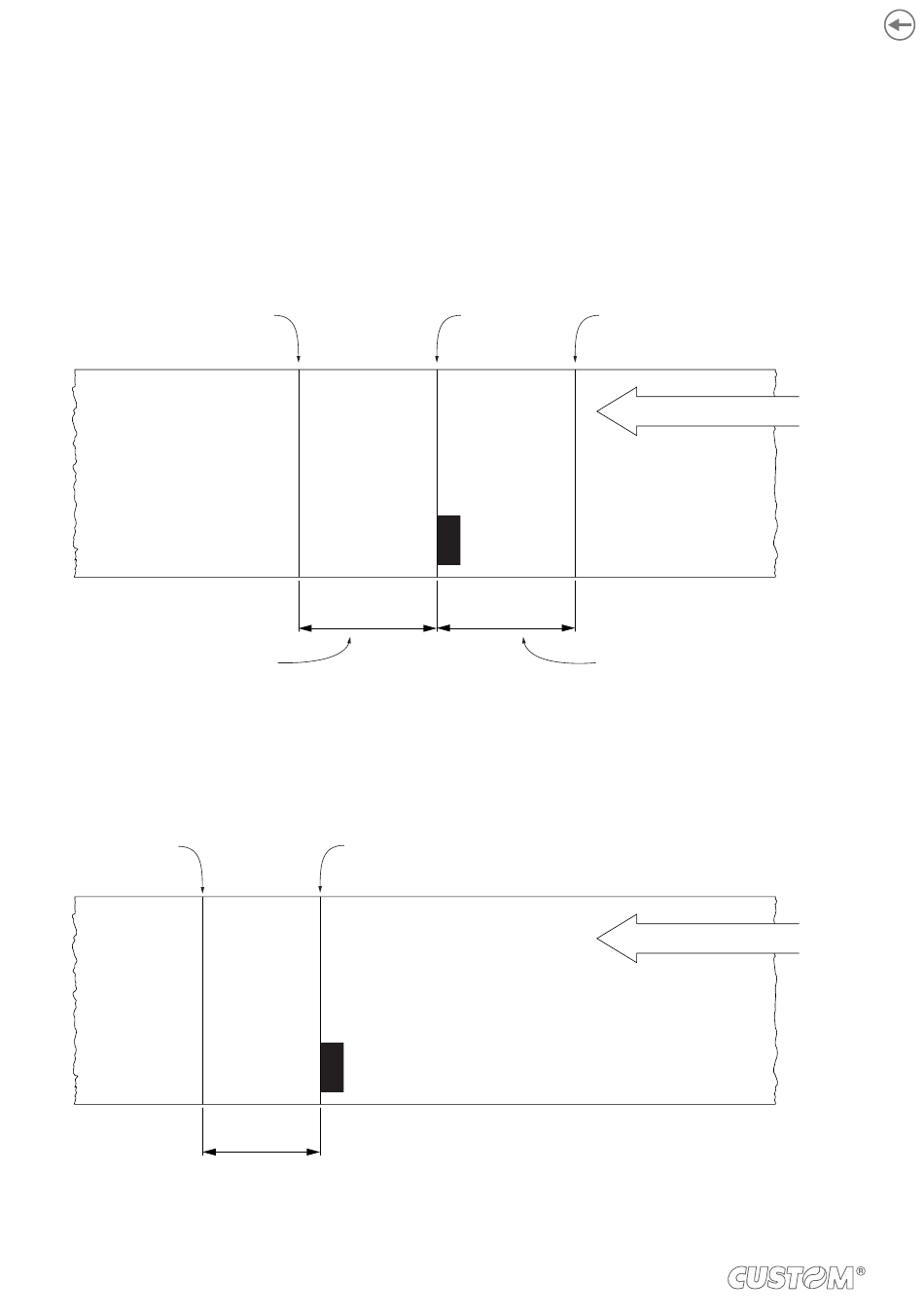

The following igure shows an example of paper with alignment point set by a positive value of "Black Mark Distance"
("Black Mark Distance" = + A):
Alignment
point
44
Alignment
point
+
Black mark
front
+ A
0
Alignment point:
Alignment
black mark front
-
0
Negative values of
"Black Mark Distance"
point
PRINTING DIRECTION
PRINTING DIRECTION
