Custom Audio Electronics MODUS3 User Manual page 29

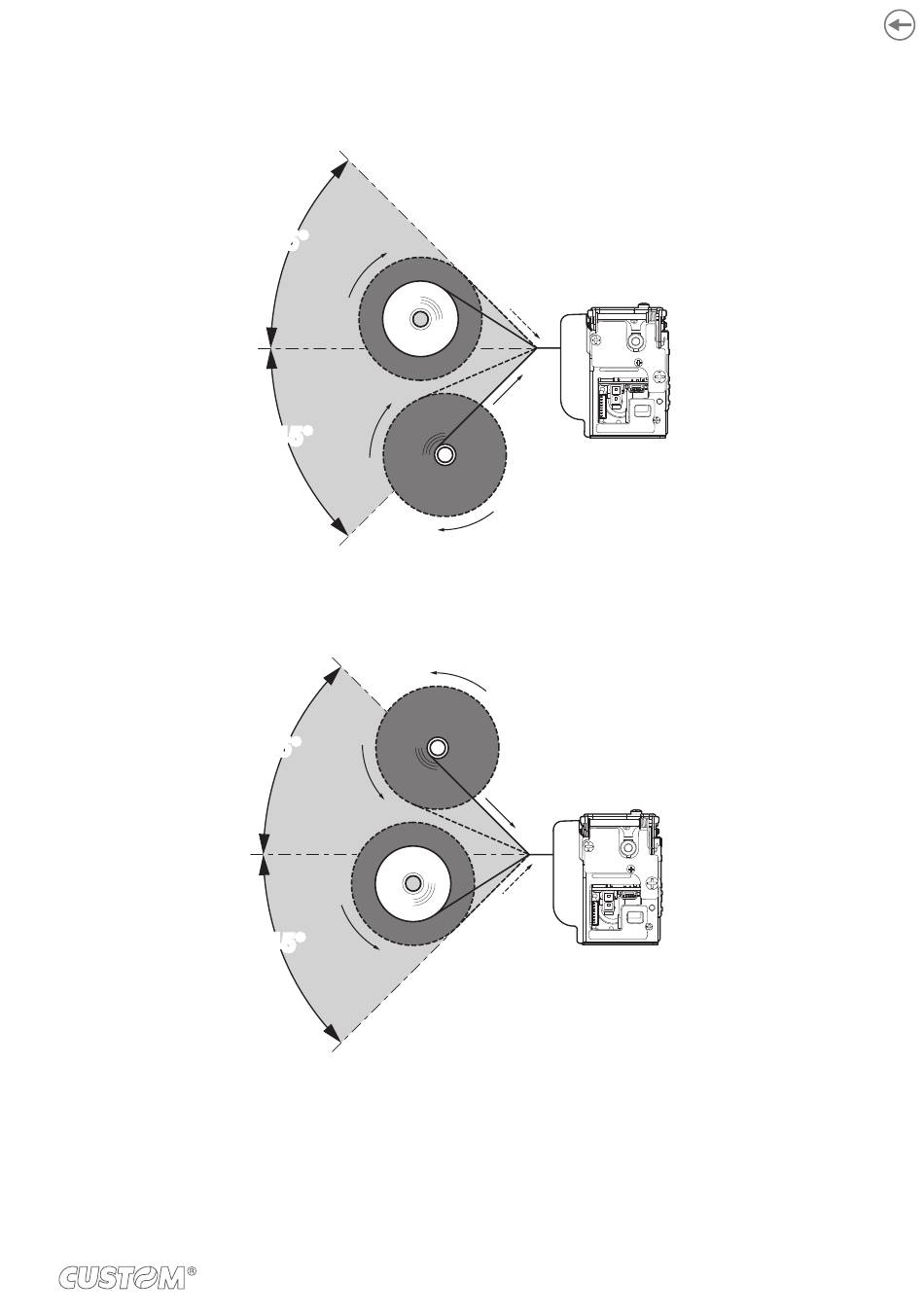

The following igure gives the limit positions of the paper roll related to the device for a correct paper loading without a
paper roll holder support.
The direction of the paper will always form a maximum angle of 45° or -45° with the insertion plane of paper inside the device.
45° 45°
-45° -45°
45° 45°
-45° -45°
Paper with thermal side
on outside of roll
Paper with non-thermal side
on outside of roll
