3 INSTALLATION
3.1 Fastening

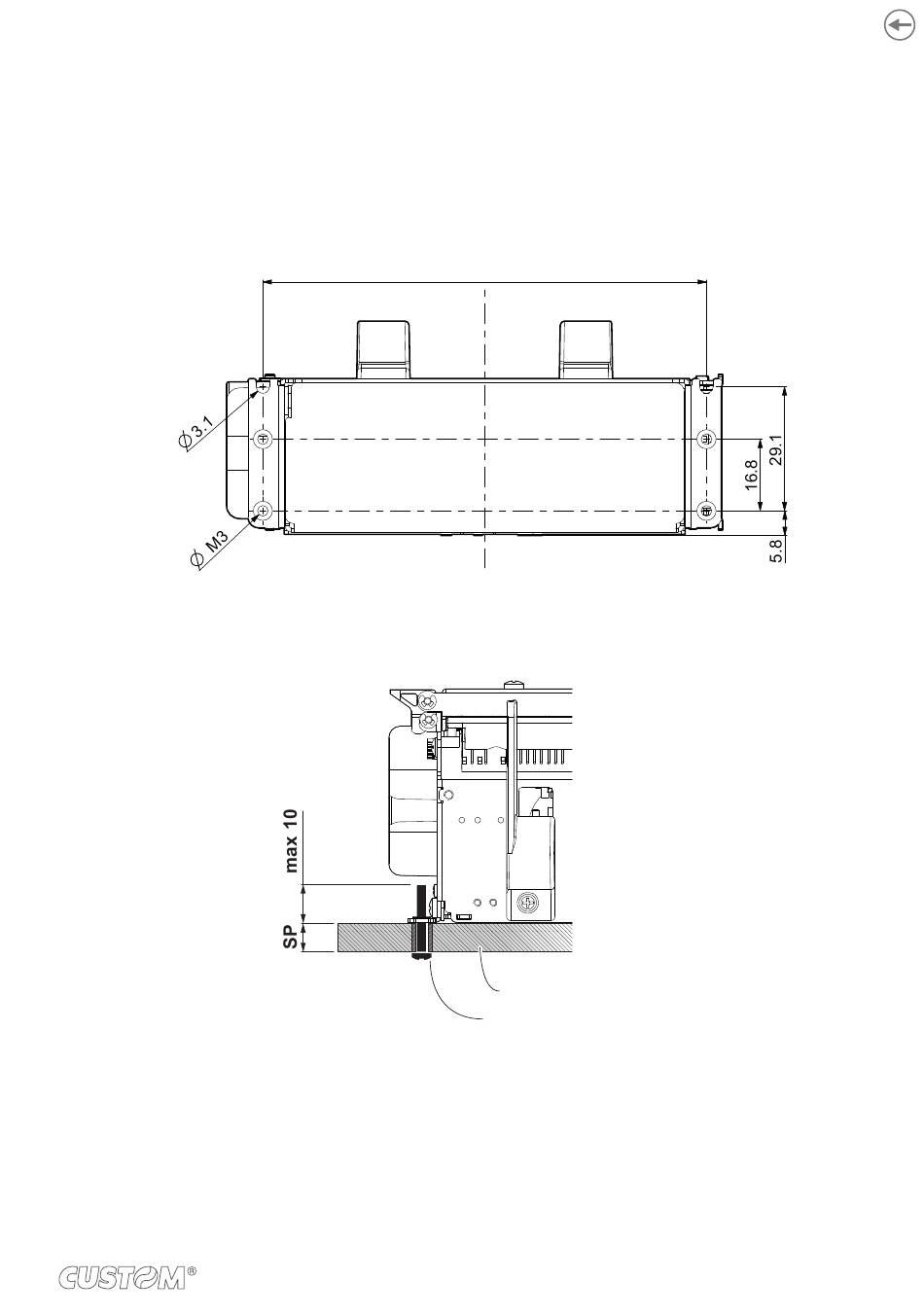

The device is provided with four ixing holes on the bottom of device (see following igure).
All the dimensions shown in following igures are in millimetres.
To fasten the device on a panel, use four M3 screws.
104
It's very important to consider the screws length not to damage the internal components placed near the ixing holes (see
following igure).
Fixing panel
Fixing screw
The screw length (L) will be calculated according to the thickness of the panel (Sp) on which the device is ixed, as follows:
L ≤ 10 mm + Sp
For example, if panel thickness is 10 mm (Sp = 10 mm), the maximum length for screws will be 20 mm.
