4.2 Adjusting paper width

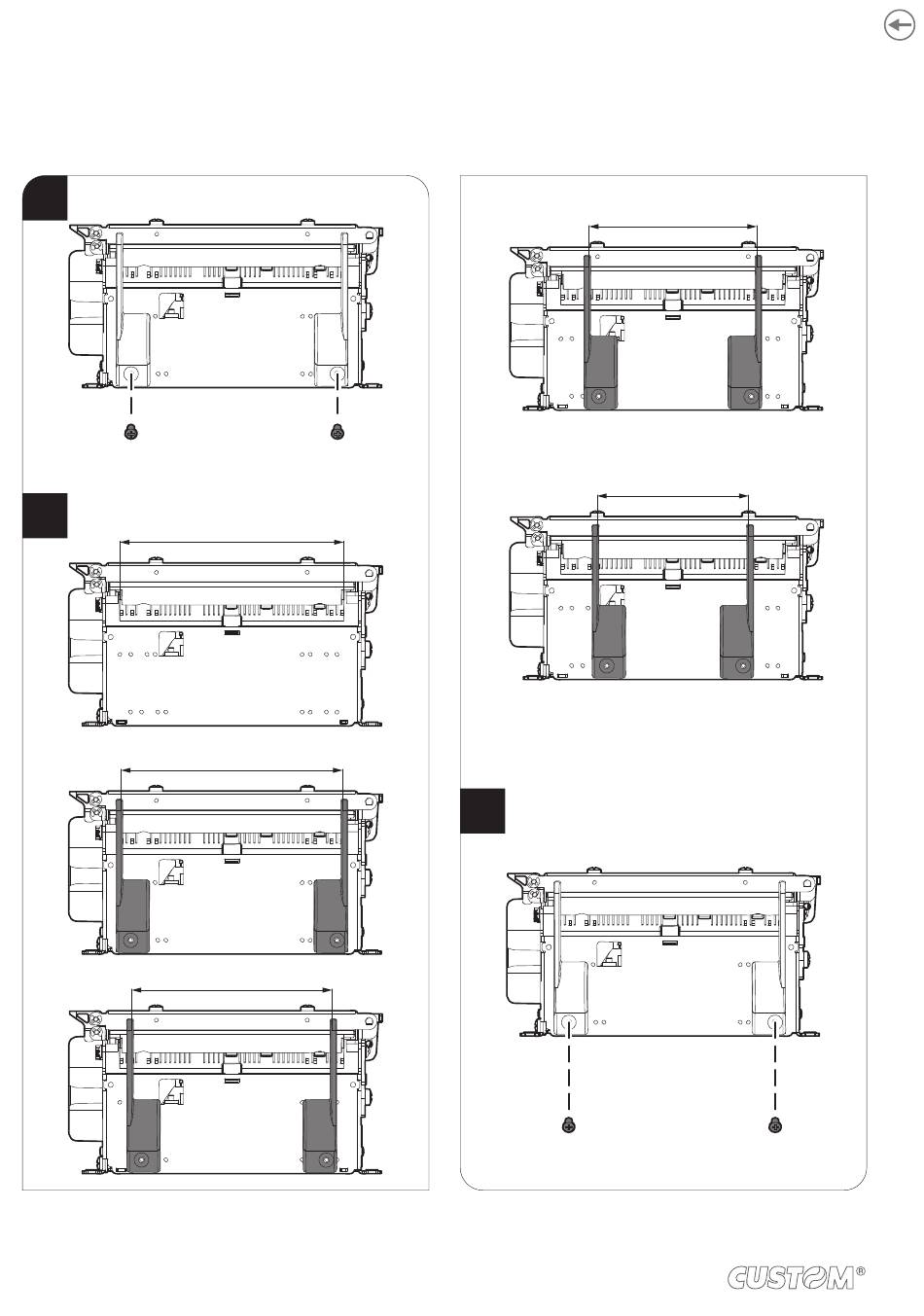

Paper width may be adjusted from 54 mm to 82.5 mm by moving the paper guides as shown in the following igure.
The minimum width that allows the black mark sensor to detect the black mark on the non-thermal side of the paper is 72 mm.
1
Unscrew the paper guides fixing screws.
2
26
82.5
80
72
Adjust the paper guides according to
the desired width.
3
Screw the paper guides fixing screws.
60
54
