3.0 GENERAL INFORMATION

The Tornado monitor is a 2 ¼ inch waterway, 500 gpm maximum monitor. It is available in a manually operated model as well as an
electric remote or joystick controlled model, and hydraulically oscillating version. The electric remote model is known as the Tornado
RC, the joystick model is known as the Tornado LT, and the hydraulically oscillating version is known as the Tornado OSC.

3.1 VARIOUS MODELS AND TERMS

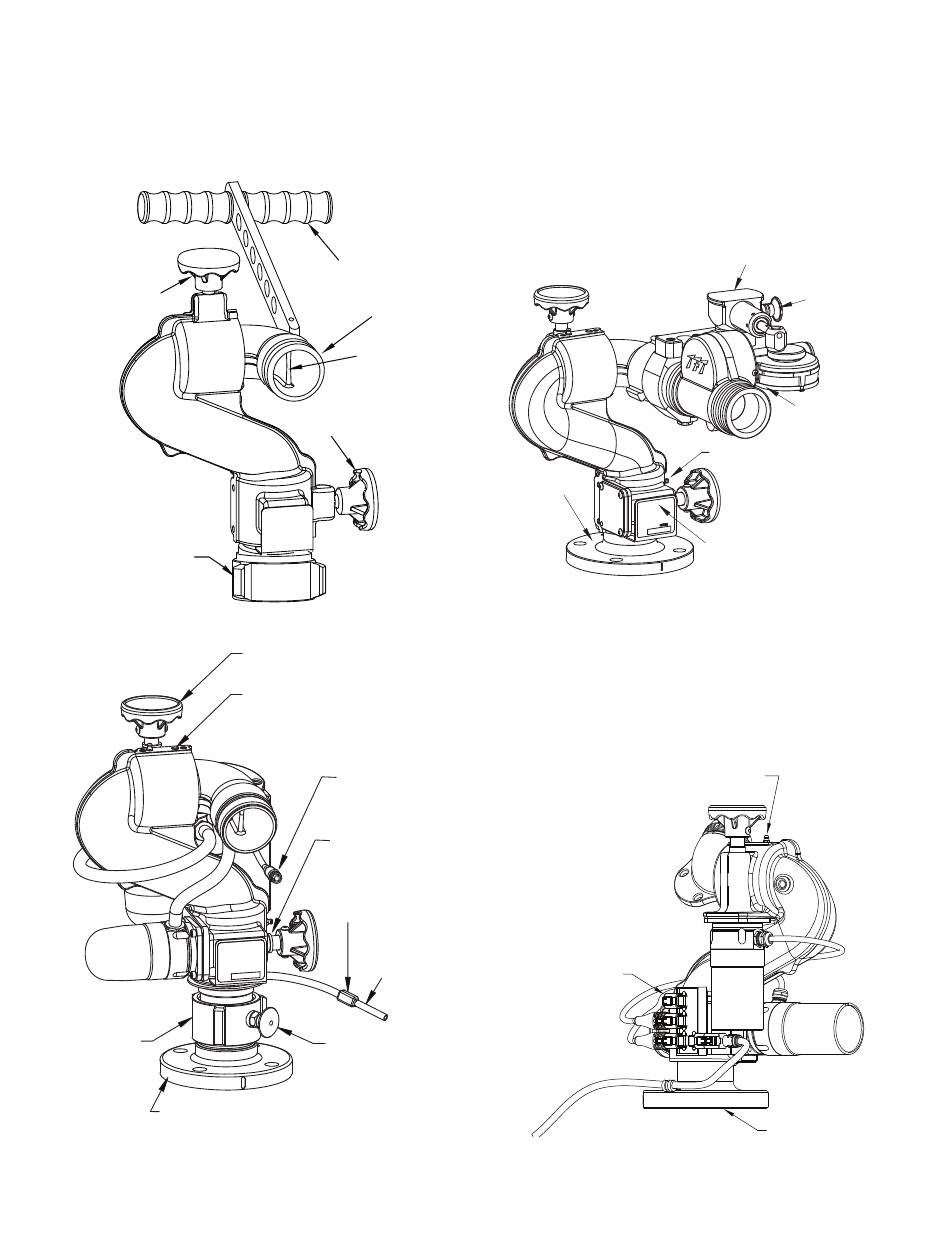

The Tornado monitor is available in several diff erent models and inlet connections. Basic body styles are shown below, along with
some various parts and controls.
ELEVATION
LOCKING
KNOB
2-1/2" NH
COUPLING
Manual Tornado Monitor Part Identifi cation
2 1/2" NH
COUPLING
WITH LOCK
QUICK CONNECT INLET
(2 1/2" ANSI 150 FLANGE SHOWN)
Tornado RC Monitor Part Identifi cation
©Copyright Task Force Tips LLC 2008-2019
TILLER BAR
OUTLET
TURNING
VANE
HORIZONTAL ROTATION
LOCKING KNOB
Fig. 3.1A
MANUAL OVERRIDE KNOB
FOR ELEVATION
ELEVATION TRAVEL STOP
SEE SECTION 4.2
ELECTRIC NOZZLE
CONNECTION
HORIZONTAL ROTATION
TRAVEL STOP
SEE SECTION 4.2
ELECTRICAL
CONNECTOR
POWER AND
COMMUNICATION
CORD
COUPLING LOCK
RELEASE PULLPIN
Fig. 3.1C
INLET FLANGE
Tornado OSC Monitor Part Identifi cation
ELECTRIC
NOZZLE
CONNECTION
Tornado LT Monitor Part Identifi cation
5
OSCILLATION
SWEEP SETTING
OSCILLATION
ENGAGE KNOB
OSCILLATION
UNIT
GREASE FITTING
FOR HORIZONTAL ROTATION
MODEL & SERIAL
NUMBER ON LABEL
Fig. 3.1B
ELEVATION
GREASE FITTING
INLET FLANGE
Fig 3.1D
