INSTRUCTIONS FOR INSTALLATION, SAFE OPERATION, AND MAINT ENANCE
INSTRUCTIONS FOR INSTALLATION, OPERATION, AND MAINTENANCE
WARNING
TASK FORCE TIPS LLC
MADE IN USA · tft.com
©Copyright Task Force Tips LLC 2012-2021
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/serial-
number.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.
®

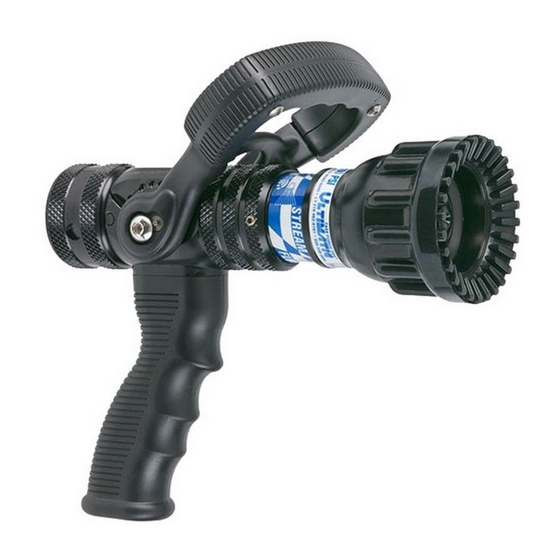

Ultimatic
ER Nozzles
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 · 219-462-6161 · Fax 219-464-7155
1
LIB-065 February 22, 2021 Rev02
