BlitzForce
™
Portable Monitor
INSTRUCTIONS FOR INSTALLATION, OPERATION, AND MAINTENANCE
Understand manual before use. Operation of this device without understanding the manual and
DANGER
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/
serial-number.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.
MAXIMUM FLOW
500 GPM @ 175 PSI
(2000 L/min @ 12 BAR)
HYDROSTATIC PROOF TEST
BlitzForce Portable Monitor
900 PSI (62 BAR) per NFPA 1964
BlitzForce OSC Portable Monitor
TASK FORCE TIPS LLC
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 · 219-462-6161 · Fax 219-464-7155
MADE IN USA · tft.com
©Copyright Task Force Tips LLC 2006-2021
1
LIX-730 February 3, 2021 Rev09
Advertisement
Table of Contents
Related Manuals for Task Force Tips BlitzForce Portable Monitor
Summary of Contents for Task Force Tips BlitzForce Portable Monitor
- Page 1 900 PSI (62 BAR) per NFPA 1964 BlitzForce OSC Portable Monitor TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2006-2021 LIX-730 February 3, 2021 Rev09...
- Page 2 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2006-2020 LIX-735 November 30, 2020 Rev04 LIX-735 - BLITZFORCE XXL-B Storage Bracket ©Copyright Task Force Tips LLC 2006-2021 LIX-730 February 3, 2021 Rev09...
-
Page 3: Table Of Contents
4.2 STACKED TIPS OR SMOOTHBORE NOZZLES 4.3 STREAM STRAIGHTENERS 4.4 USE WITH FOAM 4.5 PRESSURE LOSS 5.0 DEPLOYMENT OF BLITZFORCE PORTABLE MONITOR 5.1 CARRYING WITH AN UNCHARGED HOSE 5.2 CARRYING WITH A CHARGED HOSE 5.3 PRESSURE GAUGE PORT 6.0 ANCHORING 6.1 ANCHORING BY USING THE TIE DOWN STRAP... -
Page 4: Meaning Of Safety Signal Words
NFPA 1962, if dissimilar metals are left coupled together, an anti-corrosive lubricant should be applied to the connection and the coupling should be disconnected and inspected at least quarterly. To prevent mechanical damage, do not drop or throw equipment. ©Copyright Task Force Tips LLC 2006-2021 LIX-730 February 3, 2021 Rev09... -
Page 5: General Information

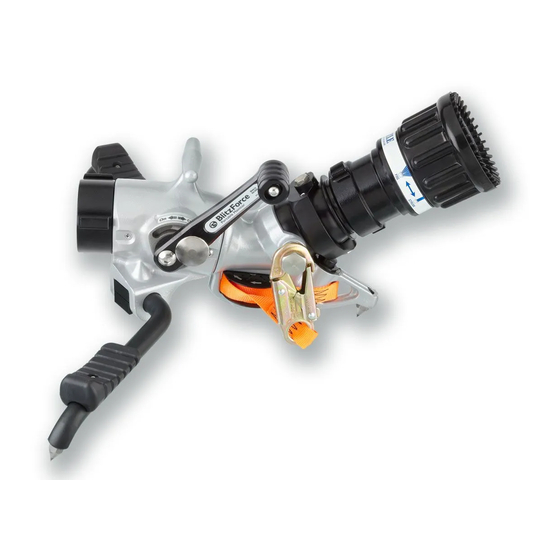

GENERAL INFORMATION The BlitzForce Portable Monitor is an efficient, compact and easy to maneuver portable monitor. The monitor is a lightweight aluminum unit, capable of delivering up to 500 gpm of water. This monitor can be mounted in a pre-connected state on the truck-mounted storage bracket to achieve a quick and effective initial attack. -
Page 6: Operating Envelope
WARNING can cause an out of control monitor resulting in injury or death. Do not operate as a portable monitor with one or both legs in the folded position. ©Copyright Task Force Tips LLC 2006-2021 LIX-730 February 3, 2021 Rev09... -
Page 7: Carbide Spikes
CARBIDE SPIKES The BlitzForce Portable Monitor has 3 tungsten carbide tipped spikes on the legs and the base to resist sliding by digging into the surface the monitor is sitting on. The amount of sliding force these spikes can withstand depends upon the amount of downward and sideways force that is on the base and the hardness and texture of the surface the spikes are in contact with. -
Page 8: Flow Characteristics
FLOW CHARACTERISTICS The BlitzForce Portable Monitor is designed for maximum flows of 500 GPM (2000 LPM) and a maximum pressure of 175 PSI (12 BAR). Do not exceed these limits. AUTOMATIC, FIXED, AND SELECTABLE FLOW NOZZLES A variety of water or foam nozzles may be used with the BlitzForce Portable Monitor. -
Page 9: Deployment Of Blitzforce Portable Monitor
CARRYING WITH A CHARGED HOSE On a charged hose the BlitzForce Portable Monitor may be carried by holding the T-shaped handle located on top of valve body as shown. Shut-off valve handle should be locked in the closed position to keep the valve from inadvertently opening. -
Page 10: Pressure Gauge Port
ANCHORING The nozzle reaction force on the BlitzForce Portable Monitor may be as high as 330 lbs - 500 GPM at 175 PSI (150 kg- 2000 LPM at 12 BAR). This nozzle reaction must be restrained to keep the monitor from moving. -
Page 11: Anchoring By Spike Holds
ANCHORING BY HOOKING LEGS The legs on the BlitzForce Portable Monitor point back slightly so they can act as a hook for anchoring on posts, walls, door frames or other fixed objects. Sliding can occur if the legs are unhooked due to the influence of the hose, nozzle, or operator. -
Page 12: Oscillating Unit (Osc)
OSCILLATING UNIT (OSC) An automatic oscillating mechanism is available for the BlitzForce Portable Monitor. The BlitzForce Portable Monitor can be purchased with the oscillating mechanism factory installed or installed at the factory by a qualified technician if purchased at a later date. -
Page 13: Oscillation Speed And Coverage
Always properly deploy the monitor before flowing. ©Copyright Task Force Tips LLC 2006-2021 LIX-730 February 3, 2021 Rev09... -
Page 14: Warranty
WARRANTY Task Force Tips LLC, 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its products (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the five (5) year period from the date of purchase. -
Page 15: Maintenance
Repair parts and service procedures are available for those wishing to perform their own repairs. Task Force Tips assumes no liability for damage to equipment or injury to personnel that is a result of user service. Contact the factory or visit the web site at tft.com for parts lists, exploded views, test procedures and troubleshooting guides. -
Page 16: Operation And Inspection Checklist
Operating equipment that has failed the checklist is a misuse of this equipment. TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2006-2021 LIX-730 February 3, 2021 Rev09...
