G-Force
INSTRUCTION FOR SAFE OPERATION AND MAINTENANCE
WARNING
TASK FORCE TIPS LLC
MADE IN USA · tft.com
©Copyright Task Force Tips LLC 2020
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/serial-
number.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.

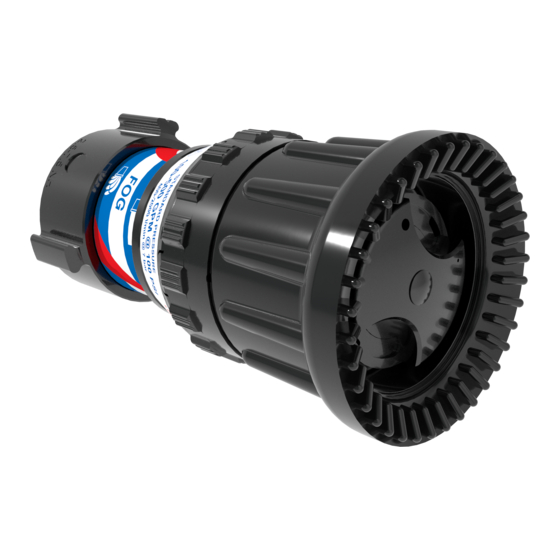

Master Force
Automatic Dual Pressure Nozzles
1
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 · 219-462-6161 · Fax 219-464-7155
LIM-027 December 15, 2020 Rev00
Advertisement
Table of Contents
Related Manuals for Task Force Tips Master Force Series
Summary of Contents for Task Force Tips Master Force Series
- Page 1 TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2020 LIM-027 December 15, 2020 Rev00...
- Page 2 6. Failure to follow these guidelines may result in death, burns or other severe injury. Fire and Emergency Manufacturers and Service Association FEMSA P.O. Box 147, Lynn eld, MA 01940 • www.FEMSA.org ©Copyright Task Force Tips LLC 2020 LIM-027 December 15, 2020 Rev00...
- Page 3 Stream reach and height at non-optimal elevations can be estimated as a factor of the performance at the optimal 30° elevation. Refer to LIM-030 and LIM-035 for effective stream trajectories of Task Force Tips Masterstream nozzles at 30° elevation. This graph cannot be used to estimate maximum reach for elevation angles below 30°.
-
Page 4: Table Of Contents
6.1 FLOW CHART 6.2 REACH AND TRAJECTORY 7.0 WARRANTY 8.0 MAINTENANCE 8.1 FIELD LUBRICATION 8.2 SERVICE TESTING 8.3 REPAIR 9.0 EXPLODED VIEWS AND PARTS LISTS 10.0 OPERATION AND INSPECTION CHECKLIST ©Copyright Task Force Tips LLC 2020 LIM-027 December 15, 2020 Rev00... -
Page 5: Meaning Of Safety Signal Words
NFPA 1962, if dissimilar metals are left coupled together, an anti-corrosive lubricant should be applied to the connection and the coupling should be disconnected and inspected at least quarterly. To prevent mechanical damage, do not drop or throw equipment. NOTICE ©Copyright Task Force Tips LLC 2020 LIM-027 December 15, 2020 Rev00... -
Page 6: General Information
GENERAL INFORMATION The Task Force Tips Master Force series automatic nozzles operate by sensing the pressure at the nozzle inlet and adjusting the discharge opening to maintain a constant pressure throughout the flow range of the nozzle. The Master Force operates at either a standard or low pressure as selected by the nozzle operator. -
Page 7: Use With Salt Water
To return to 100 PSI operation, shut off water flow to the nozzle and turn knob clockwise. Knob In Knob In Standard Low Pressure Operating Mode Mode Figure 3.8 ©Copyright Task Force Tips LLC 2020 LIM-027 December 15, 2020 Rev00... -
Page 8: Flushing Debris
Within its flow range, the Master Force automatic nozzle operates at the nominal pressure of 100 PSI (7 BAR, 700 KPA). The following chart shows the typical performance of this nozzle. ©Copyright Task Force Tips LLC 2020 LIM-027 December 15, 2020 Rev00... -
Page 9: Reach And Trajectory
• Tail or head winds of 20 MPH (30 KPH) may increase or decrease the range approximately 30%. CURVE CURVE L/min FLOW REACTION FLOW REACTION 1100 1500 2000 2300 2700 3000 CURVE CURVE L/min FLOW REACTION FLOW REACTION 1100 1500 2000 2300 2700 3000 ©Copyright Task Force Tips LLC 2020 LIM-027 December 15, 2020 Rev00... -
Page 10: Warranty
WARRANTY Task Force Tips LLC, 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its products (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the five (5) year period from the date of purchase. -
Page 11: Maintenance
Repair parts and service procedures are available for those wishing to perform their own repairs. Task Force Tips assumes no liability for damage to equipment or injury to personnel that is a result of user service. Contact the factory or visit the web site at tft.com for parts lists, exploded views, test procedures and troubleshooting guides. -
Page 12: 10.0 Operation And Inspection Checklist
Operating equipment that has failed the checklist is a misuse of this equipment. TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2020 LIM-027 December 15, 2020 Rev00...
