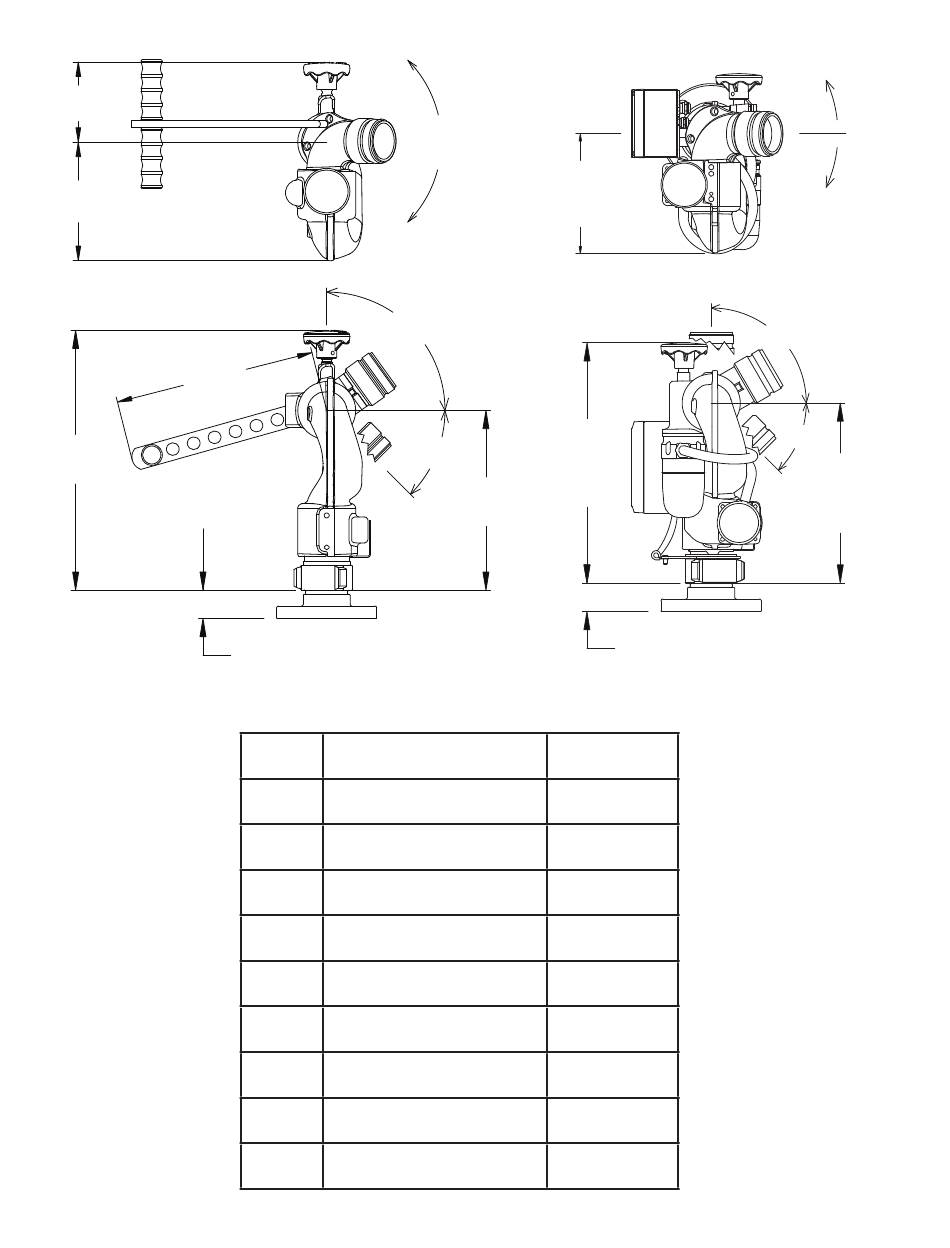

3.5 OVERALL DIMENSIONS

5.50
(140 mm)
8.25
(210 mm)
14.00
(360 mm)
18.00
(460 mm)
Manual Tornado Monitor Dimensions
©Copyright Task Force Tips LLC 2008-2019
CONTINUOUS
90°
See table below for additional height
from Inlet Fitting
Fig 3.5a
MODEL INLET FITTING
TYPE
Y2-*1*A 2-1/2" - 7.5 NH FEMALE
(no inlet fi tting)
Y2-*2*A 2-1/2" - 11 BSP FEMALE
Y2-*3*A 2.0" - 11.5 BSP FEMALE
Y2-*6*A 2.5" ANSI 150 FLANGE
Y2-*0*A 3.0" ANSI 150 FLANGE
Y2-*7*A 2-1/2" - 8 NPT FEMALE
Y2-*8*A 2.0" - 11.5 NPT FEMALE
Y2-*9*A 3.0" - 8 NPT FEMALE
Y2-*L*A TFT CODE-RLF
(fi ts Extend-A-Gun RC3)
360°
8.25
(210 mm)
17.80
45°
(452 mm)
12.40
(315 mm)
Electric Tornado RC Monitor Dimensions
ADDITIONAL
HEIGHT
0.00"
0 mm
2.00"
51 mm
1.50"
38 mm
2.00"
51 mm
2.10"
53 mm
2.00"
51 mm
1.50"
38 mm
2.44"
62 mm
2.00"
51 mm
9
185° LEFT
185° RIGHT
90°
45°
See table below for additional height
from Inlet Fitting
Fig 3.5b
LIY-300 August 12, 2019 Rev17
13.70
(348 mm)
