3.0

GENERAL INFORMATION

The Task Force Tips Master Force series automatic nozzles operate by sensing the pressure at the nozzle inlet and adjusting the
discharge opening to maintain a constant pressure throughout the flow range of the nozzle. The Master Force operates at either a
standard or low pressure as selected by the nozzle operator.
The Master Force are deluge nozzles with clean, far reaching straight stream capability. Stream pattern can be varied from straight
stream to a dense, wide fog pattern. Turning the shaper past the wide fog setting allows flushing the nozzle of debris without shutting
down flow. The Master Force nozzles are intended for use on fixed or portable monitors.
3.1

VARIOUS MODELS AND TERMS

Master-Force nozzles are available in several different models and inlet connections. Basic body styles are shown below.
3.2

MECHANICAL SPECIFICATIONS

Weight
Flow Range
Operating Pressure (Standard Mode)
Operating Pressure (Low Mode)
Maximum fog angle
Operating temperature range of fluid
Storage temperature range
Materials used
3.3

ELECTRICAL SPECIFICATIONS

©Copyright Task Force Tips LLC 2020
Aluminum 6000 series hard anodized MIL8625 class 3 type 2,
Nominal Operating Voltage
Maximum Voltage
Minimum Voltage - 12 Volt System
Minimum Voltage - 24 Volt System

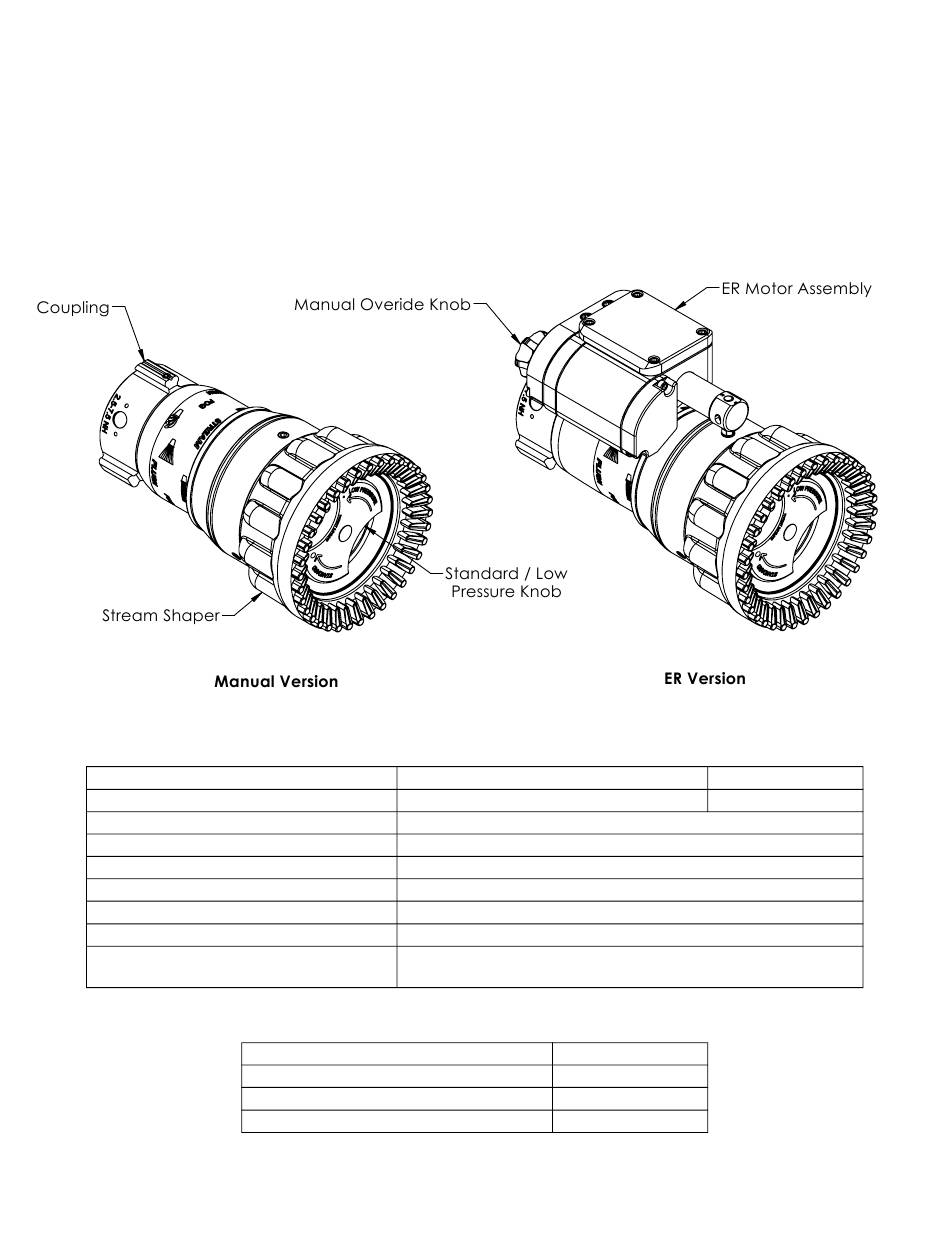

Figure 3.1
Manual Version
9.5 lbs (4.3kg)
300 - 800 GPM (1100 - 3000 L/min)
100 psi (7 bar)
55 psi (3.7 bar)
103°
33 to 120°F / 1 to 50°C
-40 to 150°F / -40 to 65°C
stainless steel 300 series, nylon 6-6, nitrile rubber
Table 3.2
12 or 24 VDC
32 VDC
9 VDC at monitor
18 VDC at monitor
Table 3.3
6
ER Version
14.2 lbs (6.4kg)
LIM-027 December 15, 2020 Rev00
