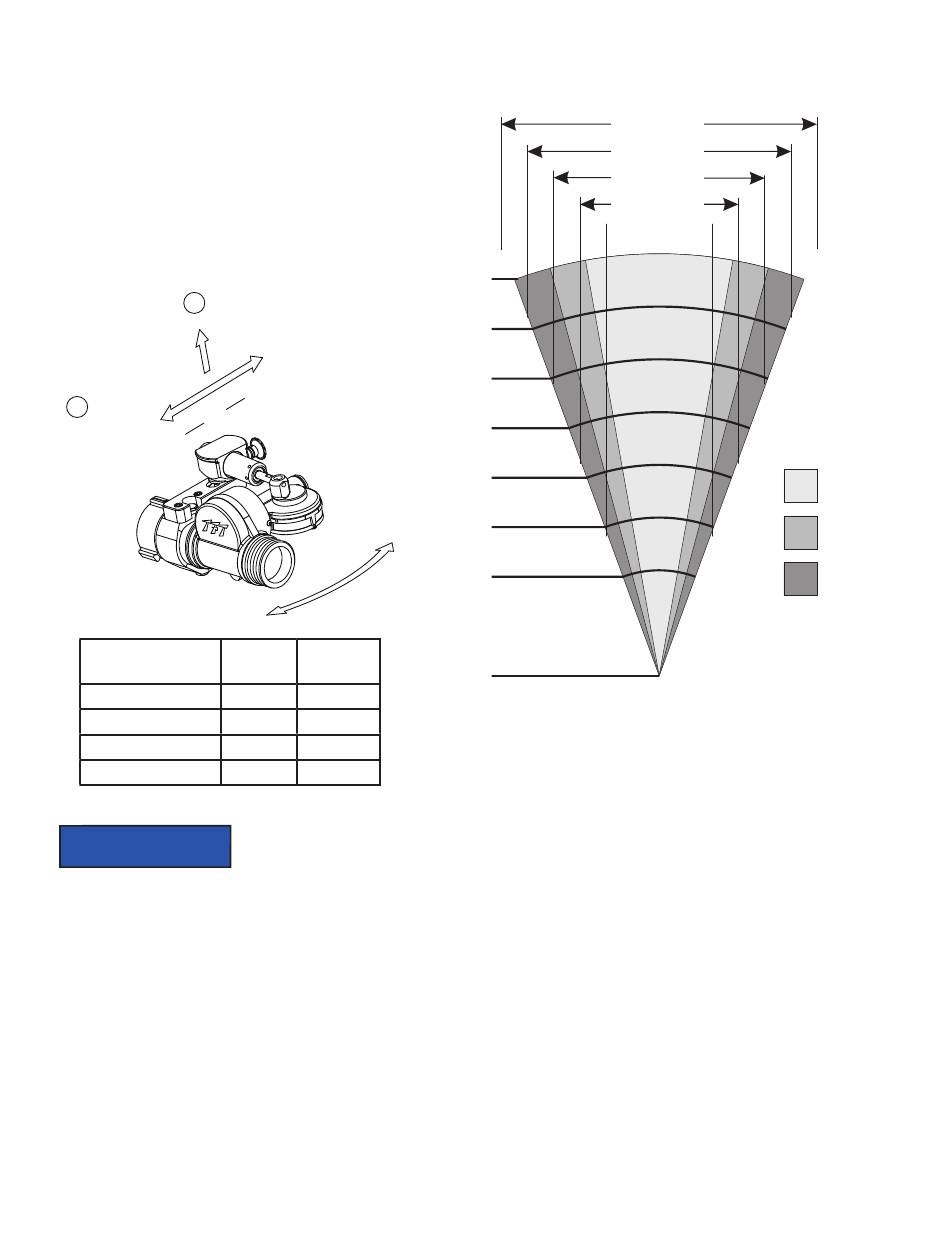

6.5 COVERAGE AREA OF OSCILLATING MONITOR

To adjust the area of coverage, refer to fi gure 6.3.
Engage the oscillating mechanism once the desired
angle has been set.
Oscillation speed: The chart shows how many times
per minute the oscillator makes one complete cycle
as a function of fl ow. The higher the fl ow, the faster
it oscillates.
For nozzle reach, refer to the operating manual
for the specifi c nozzle. For reach with oscillation,
subtract 20% from the distance
LIFT TO CHANGE
1
SWEEP SETTING
SLIDE TO
2
30°
CHANGE
ANGLE
40°
Fig. 6.3 Adjusting Sweep Angle
APPROXIMATE
CYCLES/MIN
8
13
21
28
OSCILLATION SPEED
NOTICE

7.0 OPERATION OF RC MONITORS

See Remote Control (RC) Monitor Electrical Controls Supplemental Instructions LIY-500 for operation of the Tornado RC Monitors.
©Copyright Task Force Tips LLC 2008-2019
200' / 61m
175' / 53m
150' / 45m
20°
125' / 38m
100' / 30m
SWEEP
DISTANCE
GPM L/MIN
175 650
250 1000
375 1500
500 2000
The type of nozzle and fl ow pressure are critical to the coverage area. The graph shows coverage
area based on the movement capability of the oscillating mechanism. Actual coverage will
depend on fl ow, pressure, type of nozzle, angle of fog pattern and wind conditions.
WIDTH OF COVERAGE
75' / 22m
50' / 15m
0'
COVERAGE AREA OF OSCILLATING MONITOR
15
150' / 45m
125' / 38m
100' / 30m
75' / 23m
50' / 15m
TOP VIEW
LIY-300 August 12, 2019 Rev17
