INSTRUCTION FOR OPERATION AND MAINTENANCE
WARNING
©Copyright Task Force Tips LLC 2011-2024
G-Force Fixed, Selectable,
and Automatic Nozzles
North American Models
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/serial-
number.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.

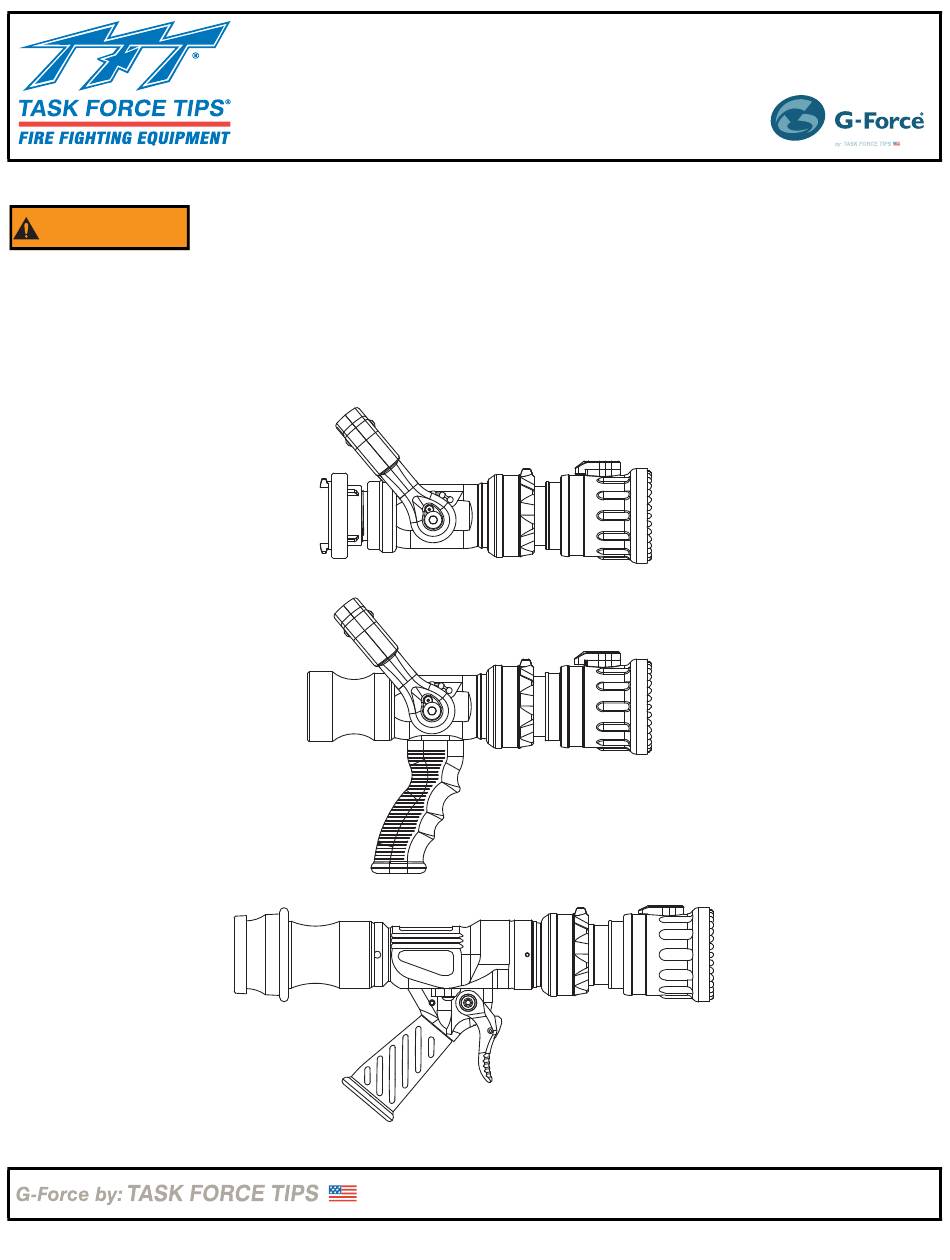

G-Force
with Lever Handle
G-Force
with Lever Handle
and Pistol Grip
G-Force
with IMPULSE
Trigger Valve System
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
1
+1 219-462-6161 tft.com
LIG-012 June 27, 2024 Rev09
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Task Force Tips G-Force GP A Series
Summary of Contents for Task Force Tips G-Force GP A Series
- Page 1 G-Force with Lever Handle G-Force with Lever Handle and Pistol Grip G-Force with IMPULSE Trigger Valve System 3701 Innovation Way, Valparaiso, IN 46383-9327 USA +1 219-462-6161 tft.com ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09...
- Page 2 SUPPORTING MATERIALS The following documents contain supporting safety and operating information pertaining to the equipment described in this manual. LTT-108 LIA-025 Instruction: Pistol Grip Manual: Foam Aspirators Replacement Kit ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09...
-
Page 3: Table Of Contents
9.2 FIELD LUBRICATION (SLIDE VALVE AND PATTERN CONTROLS) 9.3 IMPULSE TRIGGER VALVE LUBRICATION 9.4 SERVICE TESTING 9.5 REPAIR 10.0 EXPLODED VIEWS AND PARTS LISTS 11.0 OPERATION AND INSPECTION CHECKLIST ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09... -
Page 4: Meaning Of Safety Signal Words
Do not direct water stream to cause injury or damage to persons or property. To prevent mechanical damage, do not drop or throw equipment. ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09... -
Page 5: General Information
GENERAL INFORMATION The Task Force Tips G-Force nozzles are designed to provide excellent performance under most fire fighting conditions. Their rugged construction is compatible with the use of fresh water as well as fire fighting foam solutions. Two body sizes are available - a 1.5”/38 mm size with flow rates up to 150 gpm/570 l/min and a compact 1.0”/25 mm size with flow rates up to 100 gpm/400 l/min. -
Page 6: Nozzle Couplings
150 GPM @ 75 PSI SELECTABLE GALLONAGE GPM @ 75 PSI FLUSH l/min @ 500 kPa (5 bar) Flow (gpm) Figure 4.1B 1.5”/38 mm 75 psi/5 bar Fixed and Selectable Nozzles ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09... -
Page 7: Automatic
AUTOMATIC G**E** 230 - 570 l/min @ 700 kPa (7 bar) AUTOMATIC 60-150 GPM @ 100 PSI FLUSH Flow (gpm) Figure 4.2A 1.5”/38 mm 100 psi/7 bar Automatic Nozzles ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09... - Page 8 100 150 200 250 300 350 400 450 500 550 600 GD**P** AUTOMATIC 20-80 gpm @ 75psi AUTOMATIC 75-300 l/min @ 5 bar FLUSH Flow (gpm) Figure 4.2D 1.0”/25 mm 75 psi/5 bar Automatic Nozzles ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09...
-
Page 9: Automatic With Flow Limiting
G**X** AUTO 1.7 - 6 6 - 9.5 L /s @ 700 kPa (7 bar) FLUSH Flow (gpm) Figure 4.3A 1.5”/38 mm 100 psi/7 bar Nozzles with Flow Limiting ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09... - Page 10 110-150 GPM @ 75 PSI G**W** 100-300 240-420 420-570 l/min @ 500 kPa (5 bar) FLUSH Flow (gpm) Figure 4.3B 1.5”/38 mm 75 psi/5 bar Nozzles with Flow Limiting ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09...
- Page 11 100 150 200 250 300 350 400 450 500 550 600 GD**P** AUTOMATIC 20-80 gpm @ 75psi AUTOMATIC 75-300 l/min @ 5 bar FLUSH Flow (gpm) Figure 4.3D 1.0”/25 mm 75 psi/5 bar Nozzles with Flow Limiting ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09...
-
Page 12: Certified 6 Bar Nozzles - En15182-2 And En15182-4 Pn40
Flow Straight Narrow Wide 50 L/min 100 L/min 150 L/min Pressure (bar) Figure 4.4.1C GP**D** (L/min) Reach (meters) Flow Straight Narrow Wide Auto 500 Range Pressure (bar) Figure 4.4.1D ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09... - Page 13 Straight Narrow Wide Pulsing 250 Auto 500 Range Pressure (bar) Figure 4.4.1G GP**L** (L/min) Reach (meters) Flow Straight Narrow Wide Pulsing 150 Auto 250 Range Pressure (bar) Figure 4.4.1H ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09...
- Page 14 (L/min) Reach (meters) Pulsing 500 Flow Straight Narrow Wide Range Pressure (bar) Figure 4.4.1K GP**V** (L/min) Reach (meters) Pulsing 150 Flow Straight Narrow Wide Range Pressure (bar) Figure 4.4.1L ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09...
- Page 15 100 L/min 235 L/min Pressure (bar) Figure 4.4.1M GP**Y** (L/min) Reach (meters) Flow Straight Narrow Wide 500 L/min 400 L/min 300 L/min 200 L/min 100 L/min Pressure (bar) Figure 4.4.1N ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09...
-
Page 16: 25 Mm Models
100 L/min 40 L/min (PN 16 models only) Pressure (bar) Figure 4.4.2C GDP**F** (L/min) Reach (meters) Flow Straight Narrow Wide 400 L/min 235 L/min 100 L/min Pressure (bar) Figure 4.4.2D ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09... - Page 17 Reach (meters) Flow Straight Narrow Wide Auto 300 Range Pressure (bar) Figure 4.4.2G GDP**U** (L/min) Reach (meters) Flow Straight Narrow Wide Pulsing 235 Auto 400 Range Pressure (bar) Figure 4.4.2H ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09...
-
Page 18: Nozzle Controls
This permits more effective use and ease of advancement, while minimizing strain and fatigue. Figure 5.1.2 In partially open positions, a ball valve will cause turbulence and adversely affect stream quality. ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09... -
Page 19: Impulse Trigger Flow Control
Loss of control or a burst hose could result in injury or death. Use caution when adjusting the closing speed, always verify performance after adjustment, and ensure that all adjustments are made by qualified personnel under the direction of the AHJ. ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09... -
Page 20: Normal Operating Position
Care must be taken to avoid dents or nicks in the nozzle tip. Turning the shaper further forward will cause stream crossover and reduce the reach of the nozzle. FLOW FLOW COUNTER- CLOCKWISE CLOCKWISE Figure 5.2 ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09... -
Page 21: Shaper Tactile Indicator
4) Tighten the clamp ring with a pin spanner. 3) While keeping the tactile indicator or lock out lever on top, rotate the shaper guide to obtain the desired stream pattern. ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09... -
Page 22: Flush Control
1.5”/38 mm G-Force MX FJ-MX-G 1.5”/38 mm G-Force LX FJ-LX-G 1.0”/25 mm G-Force MX FJ-UMX 1.0”/25 mm G-Force LX Long FJ-LX-U 1.0”/25 mm G-Force LX Short FJ-GD Table 6.1 ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09... -
Page 23: Color Coded Handle Cover And Pistol Grips
5. Reinstall or reposition the Adjusting Screw if it has been moved from its original (3/16 in Allen Wrench) location. 6. Flow nozzle to check performance of slow closer. Adjust as needed. Figure 7.1 ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09... -
Page 24: Warranty
WARRANTY Task Force Tips LLC, 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its products (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the five (5) year period from the date of purchase for mechanical components, and the two (2) year period from the date of purchase for electrical components. -
Page 25: Maintenance
FIELD LUBRICATION All Task Force Tips nozzles are factory lubricated with high quality silicone grease. This lubricant has excellent wash out resistance, providing long term performance. If your agency has unusually hard or sandy water, the moving parts of the nozzle may be affected. -
Page 26: Impulse Trigger Valve Lubrication
Figure 9.3 IF THIS PROCEDURE DOES NOT RESTORE SMOOTH OPERATION OF THE IMPULSE TRIGGER SYSTEM, THEN FACTORY SERVICE IS NEEDED. • 24-HOUR HOT LINE — 800-348-2686 • tft.com ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09... -
Page 27: Service Testing
Repair parts and service procedures are available for those wishing to perform their own repairs. Task Force Tips assumes no liability for damage to equipment or injury to personnel that is a result of user service. Contact the factory or visit the web site at tft.com for parts lists, exploded views, test procedures and troubleshooting guides. -
Page 28: Operation And Inspection Checklist
Operating equipment that has failed the checklist is a misuse of this equipment. 3701 Innovation Way, Valparaiso, IN 46383-9327 USA +1 219-462-6161 tft.com ©Copyright Task Force Tips LLC 2011-2024 LIG-012 June 27, 2024 Rev09...
