G-Force
INSTRUCTION FOR SAFE INSTALLATION, OPERATION, AND MAINTENANCE
DANGER
CONTROL BOX
(complete with 10 ft (3m) of power & communication cable
for connection to monitor communication link & power,
12 ft (3.6m) of cable for connection to RC monitor,
and 12 ft (3.6m) of cable for connection to Extend-A-Gun RC motor)
OPTIONAL PUSHBUTTON STATION
(complete with 12 ft (3.6m) of cable for
connection to control box)
TASK FORCE TIPS LLC
MADE IN USA · tft.com
©Copyright Task Force Tips LLC 2004-2020
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/
serial-number.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.

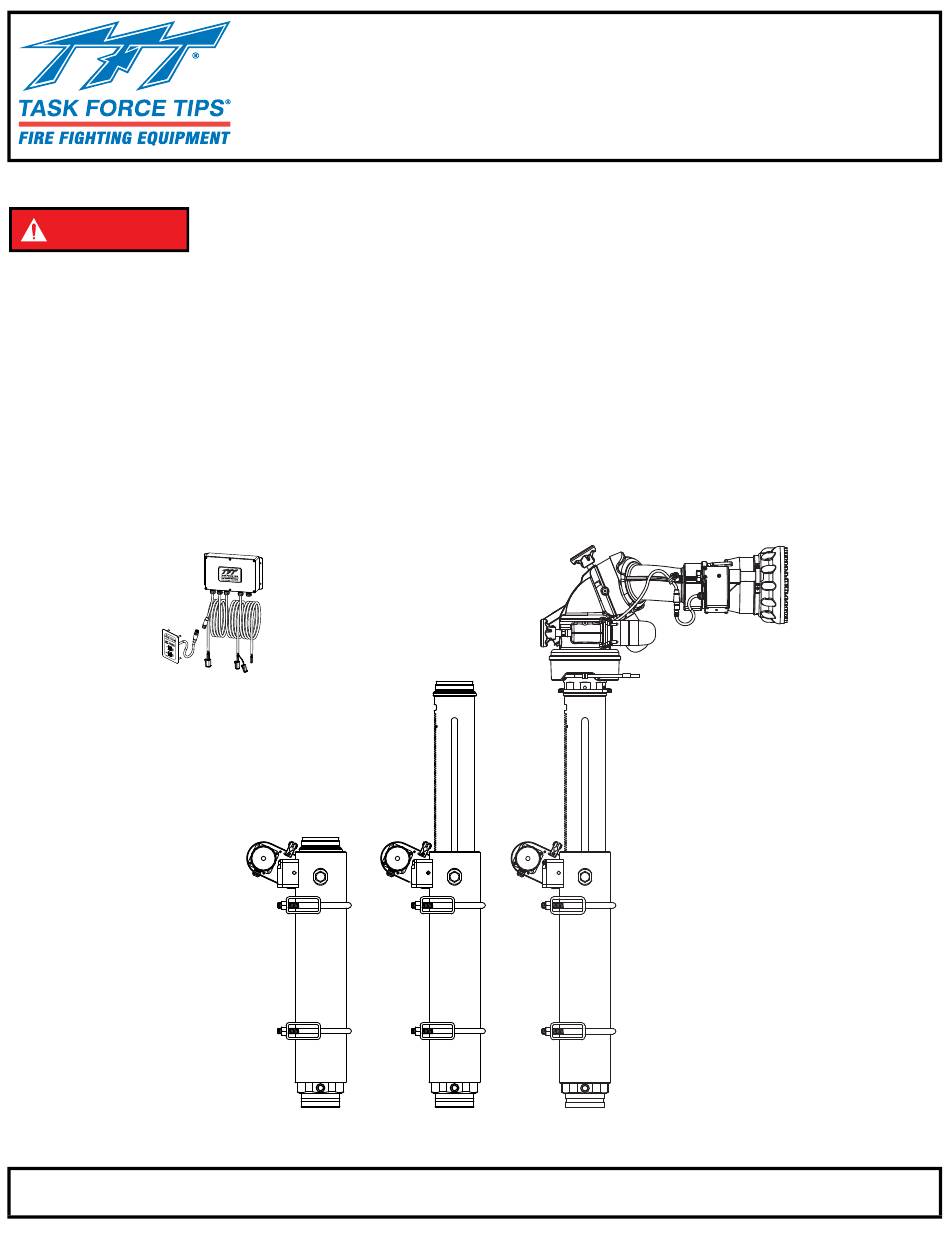

Extend-A-Gun RC3 & RC4
Remote Control Telescoping Waterway
for Deck Mounted Monitors
1
Shown with
Monsoon RC Monitor
and Master 2000 Nozzle.
(Monitor, Nozzle, and
Mounting Brackets not included)
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 · 219-462-6161 · Fax 219-464-7155
LIX-530 March 17, 2020 Rev15
Advertisement
Table of Contents
Related Manuals for Task Force Tips Extend-A-Gun RC3
Summary of Contents for Task Force Tips Extend-A-Gun RC3
- Page 1 (Monitor, Nozzle, and Mounting Brackets not included) TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15...
- Page 2 TASK FORCE TIPS LLC 3701 Innovation Way, IN 46383-9327 USA 800-348-2686 • 219-462-6161 • Fax 219-464-7155 MADE IN USA • tft.com ©Copyright Task Force Tips LLC 2008-2019 LIY-500 April 8, 2019 Rev14 LIY-500 Remote Control (RC) Monitor Electrical Controls ©Copyright Task Force Tips LLC 2004-2020...
-
Page 3: Table Of Contents
4.3.2.1 SADDLE BRACKET WELDING 4.3.3 PLATE BRACKET INSTALLATION 5.0 RC3 AND RC4 SIDE LOADS AT MOUNTING POINTS WORKSHEET 5.1 12” EXTEND-A-GUN RC3 (XGA32 SERIES) LOAD CHART 5.2 12” EXTEND-A-GUN RC4 (XGA42 SERIES) LOAD CHART 5.3 18” EXTEND-A-GUN RC3 (XGA38 SERIES) LOAD CHART 5.4 18”... -
Page 4: Meaning Of Safety Signal Words
Pressurizing a retracted waterway with closed shutoffs or caps on the monitor discharge disables waterway extension. Relieving pressure trapped in the waterway will restore the lift function. ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15... -
Page 5: General Information
Use with salt water is permissible provided the equipment is thoroughly cleaned with fresh water after each use. The service life of the equipment may be shortened due to the effects of corrosion, and is not covered under warranty. ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15... -
Page 6: Parts Identification
CROSSFIRE OUTLET (RC3 ONLY) CLAMP TUBE/SADDLE BRACKET MOTOR (RC3 ONLY) INNER TUBE OVERRIDE KNOB OUTER TUBE PLATE/SADDLE BRACKET MODEL # SERIAL # SADDLE/SADDLE BRACKET NPTM BSPM VICTAULIC Figure 3.3 ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15... -
Page 7: Dimensions
TFT P/N XGB-33 ALTERNATE: ALTERNATE: TUBE/SADDLE PLATE/SADDLE TFT P/N XGB-13 TFT P/N XGB-23 FROM PUMP 3” VICTAULIC 3” NPTM 3” BSPM - POSITION ADJUSTABLE BY U-BOLTS IN MOUNTING TUBE. Figure 3.4A ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15... - Page 8 FOR DISTANCE 23-3/4” (XGA48) OUTER TUBE ALTERNATE: PLATE/SADDLE TFT P/N XGB-43 4” NPTM 4” BSPM 4” VICTAULIC FROM PUMP - POSITION ADJUSTABLE BY U-BOLTS IN MOUNTING TUBE. Figure 3.4B ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15...
-
Page 9: Bracket Sets
Task Force Tips strongly recommends that Extend-A-Gun be installed using the bracket sets sold by Task Force Tips that are designed for this purpose. The Task Force Tips bracket sets are designed to fit the Extend-A-Gun outer tube very closely to prevent distortion of the outer tube and to give it adequate support. -
Page 10: Saddle Bracket Installation
1/2-13 Hex Bolt 1/2-13 Hex Bolt 5 = Washer 1/2” I.D. 1/2” I.D. 6 = Plate Bracket XG485 XG487 7 = Deck Nut 1/2-13 Hex Nut 1/2-13 Hex Nut Table 4.3.3 ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15... -
Page 11: Rc3 And Rc4 Side Loads At Mounting Points Worksheet
• Inferior welding or poor plate installation could result in serious injury or equipment damage. • Torque all fasteners to specified values. Extend-A-Gun RC3 & RC4 Side Load Worksheet prior to Extend-A- NAME: _______________________________________ DATE: ______ / _____ / __________... - Page 12 5000 lbf F2 Max 2200 lbf 3500 lbf 2200 lbf 3500 lbf If either value for F1 and F2 Height and D3 and repeat Step 6 F1 and F2 ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15...
-
Page 13: 12" Extend-A-Gun Rc3 (Xga32 Series) Load Chart
12” EXTEND-A-GUN RC3 (XGA32 SERIES) LOAD CHART ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15... -
Page 14: 12" Extend-A-Gun Rc4 (Xga42 Series) Load Chart
12” EXTEND-A-GUN RC4 (XGA42 SERIES) LOAD CHART ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15... -
Page 15: 18" Extend-A-Gun Rc3 (Xga38 Series) Load Chart
18” EXTEND-A-GUN RC3 (XGA38 SERIES) LOAD CHART ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15... -
Page 16: 18" Extend-A-Gun Rc4 (Xga48 Series) Load Chart
18” EXTEND-A-GUN RC4 (XGA48 SERIES) LOAD CHART ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15... -
Page 17: Control Box Installation
A depth of 3” (75mm) is required behind the panel. Refer to the figure below for panel space requirements and hole placement dimensions. Install supplied cable clamp to relieve strain on push button wires. Figure 6.2 ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15... -
Page 18: Control Box Wiring
RC Monitor Insert wires for feedback relays Connect this plug into the connector Connect this cable to RC Extend-A-Gun to Power & Communication Link retracted sensor Figure 6.3 ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15... -
Page 19: Circuit Board Configuration
DISABLE MONITOR BUTTON EXTEND-A-GUN EXTENDED INTERLOCK INTERLOCK USER CONFIGURABLE RELAY USE AUX2 USER RELAY SET FOR DISABLE AT PARK ENABLE MONITOR BUTTON INTERLOCK INTERLOCK EXTEND-A-GUN EXTENDED OR RETRACTED Figure 6.4 ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15... -
Page 20: Verify Proper Voltage And Operation
Use size 16 contacts for all positions. Maximum allowed current draw through relay contacts is 10 amps. The connector pin configuration is shown as viewed from the wire side of the 6-position plug. ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15... -
Page 21: Indicator Light Mounting & Wiring
Lower Before Damage Will Occur. Moving Vehicle. Moving Vehicle. XGL040 Near the water valve for the Next to the indicator light Around the indicator light deck monitor Figure 7.0 ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15... -
Page 22: Mounting The Monitor
1500 lbs. Task Force Tips monitors may be mounted directly on the Extend-A-Gun. Monitors are attached to the Extend-A-Gun by a threaded joint with an O-ring seal. The joint between the Extend-A-Gun and monitor is locked rotationally by a two piece clamp rotational lock. - Page 23 To avoid damage to the monitor, ensure Clamps ALTERNATE BOLTS do not interefere with RC monitor Power/Com WITH EACH HALF TURN cable and that Screws are not overtightened. Figure 8.1B ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15...
-
Page 24: Use Of Drain
This provides a safer lowering of the unit and prevents a crushing injury in case someone is under the unit when it is lowered. (Note: Monitor will automatically perform PARK pattern if not at the “AT PARK” position.) ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15... -
Page 25: Manual Override
When the Extend-A-Gun RC is being lowered, the drive is programmed to run at a slower speed and the current limit is reduced. ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15... -
Page 26: Warranty
11.0 WARRANTY Task Force Tips LLC, 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its products (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the five (5) year period from the date of purchase. -
Page 27: Maintenance
Repair parts and service procedures are available for those wishing to perform their own repairs. Task Force Tips assumes no liability for damage to equipment or injury to personnel that is a result of user service. Contact the factory or visit the web site at tft.com for parts lists, exploded views, test procedures and troubleshooting guides. -
Page 28: Operation And Inspection Checklist
Operating equipment that has failed the checklist is a misuse of this equipment. TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2004-2020 LIX-530 March 17, 2020 Rev15...
