INSTRUCTIONS FOR INSTALLATION, SAFE OPERATION, AND MAINT ENANCE
INSTRUCTIONS FOR OPERATION, AND MAINTENANCE
WARNING
Twister Series
TASK FORCE TIPS LLC
MADE IN USA · tft.com
©Copyright Task Force Tips LLC 2002-2020
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/serial-
number.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.

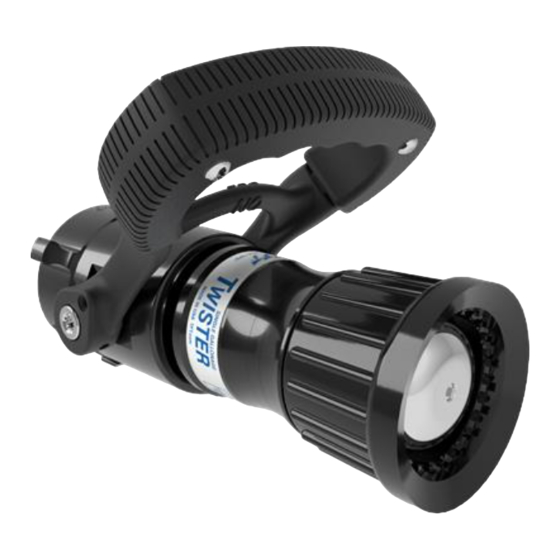

Twister
Bubble Cup
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
1
and
®
Nozzles
®
Bubble Cup Series
800-348-2686 · 219-462-6161 · Fax 219-464-7155
LKB-100 September 17, 2020 Rev12
Advertisement
Table of Contents
Related Manuals for Task Force Tips Twister Series
Summary of Contents for Task Force Tips Twister Series
- Page 1 Twister Series Bubble Cup Series TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2002-2020 LKB-100 September 17, 2020 Rev12...
-
Page 2: Table Of Contents
SUPPORTING MATERIALS The following documents contain supporting safety and operating information pertaining to the equipment described in this manual. LIA-025 LTT-108 Manual: Foam Aspirators Instruction: Pistol Grip Replacement Kit ©Copyright Task Force Tips LLC 2002-2020 LKB-100 September 17, 2020 Rev12... -
Page 3: Meaning Of Safety Signal Words
Do not direct water stream to cause injury or damage to persons or property. To prevent mechanical damage, do not drop or throw equipment. ©Copyright Task Force Tips LLC 2002-2020 LKB-100 September 17, 2020 Rev12... -
Page 4: General Information
This manual describes nozzles calibrated at 100 psi (7 bar). Contact the factory for data specific to models that operate with metric flow calibrations. Task Force Tips Twister and Bubble Cup nozzles are economical, lightweight, and dependable. Their rugged construction is compatible with the use of fresh water as well as firefighting foam solutions. -
Page 5: Nozzle Couplings
FLOW (L/min) FLOW (L/min) FLOW (GPM) FLOW (GPM) 20, 95 GPM TWISTER or BUBBLE CUP 10, 40 GPM TWISTER OR BUBBLE CUP or 95 GPM BUBBLE CUP Figure 4.0 ©Copyright Task Force Tips LLC 2002-2020 LKB-100 September 17, 2020 Rev12... -
Page 6: Flow Charts
• Number in each box is flow in gallons per minute. • Actual flows may vary with brand and condition of hose. • Flows are approximate and do not account for losses in preconnected piping or changes in elevation. ©Copyright Task Force Tips LLC 2002-2020 LKB-100 September 17, 2020 Rev12... -
Page 7: Metric
• Actual flows may vary with brand and condition of hose. • Flows are approximate and do not account for losses in preconnected piping or changes in elevation. • 1 bar = 100 kPa ©Copyright Task Force Tips LLC 2002-2020 LKB-100 September 17, 2020 Rev12... -
Page 8: Nozzle Controls
If an immediate wide protective fog pattern is needed, the sleeve can be retracted instantly to its regular position. SHAPER ASPIRATING SLEEVE EXTENDED TO WHITE LINE Retracted Position Extended Position Figure 6.3 ©Copyright Task Force Tips LLC 2002-2020 LKB-100 September 17, 2020 Rev12... -
Page 9: Use With Foam
- Gray Preconnect #3 Yellow - Pink Preconnect #4 White - Purple Preconnect #5 Blue - Tan Preconnect #6 Black Preconnect #7 Green Foam Lines Red w/ White Border (Red/White) ©Copyright Task Force Tips LLC 2002-2020 LKB-100 September 17, 2020 Rev12... -
Page 10: Warranty
WARRANTY Task Force Tips LLC, 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its products (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the five (5) year period from the date of purchase. -
Page 11: Maintenance
Any returns should include a note as to the nature of the problem and whom to reach in case of questions. Repair parts and service procedures are available for those wishing to perform their own repairs. Task Force Tips assumes no liability for damage to equipment or injury to personnel that is a result of user service. -
Page 12: Operation And Inspection Checklist
Operating equipment that has failed the checklist is a misuse of this equipment. TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2002-2020 LKB-100 September 17, 2020 Rev12...
