GENERAL INFORMATION

The BlitzForce Portable Monitor is an efficient, compact and easy to maneuver portable monitor. The monitor is a lightweight aluminum
unit, capable of delivering up to 500 gpm of water. This monitor can be mounted in a pre-connected state on the truck-mounted storage
bracket to achieve a quick and effective initial attack.
3.1

VARIOUS MODELS AND TERMS

3.2

MECHANICAL SPECIFICATIONS

Size (legs folded)
Size (legs unfolded)
Weight (without nozzle)
Maximum inlet pressure with valve shut off
Maximum inlet pressure at maximum flow
Flow Range
Operating temperature of fluid
Storage temperature range
Standard Inlet Coupling
Standard Outlet
Vertical Stream Range (manned)
Vertical Stream Range (unmanned)
Horizontal Stream Range
Materials used
©Copyright Task Force Tips LLC 2006-2023

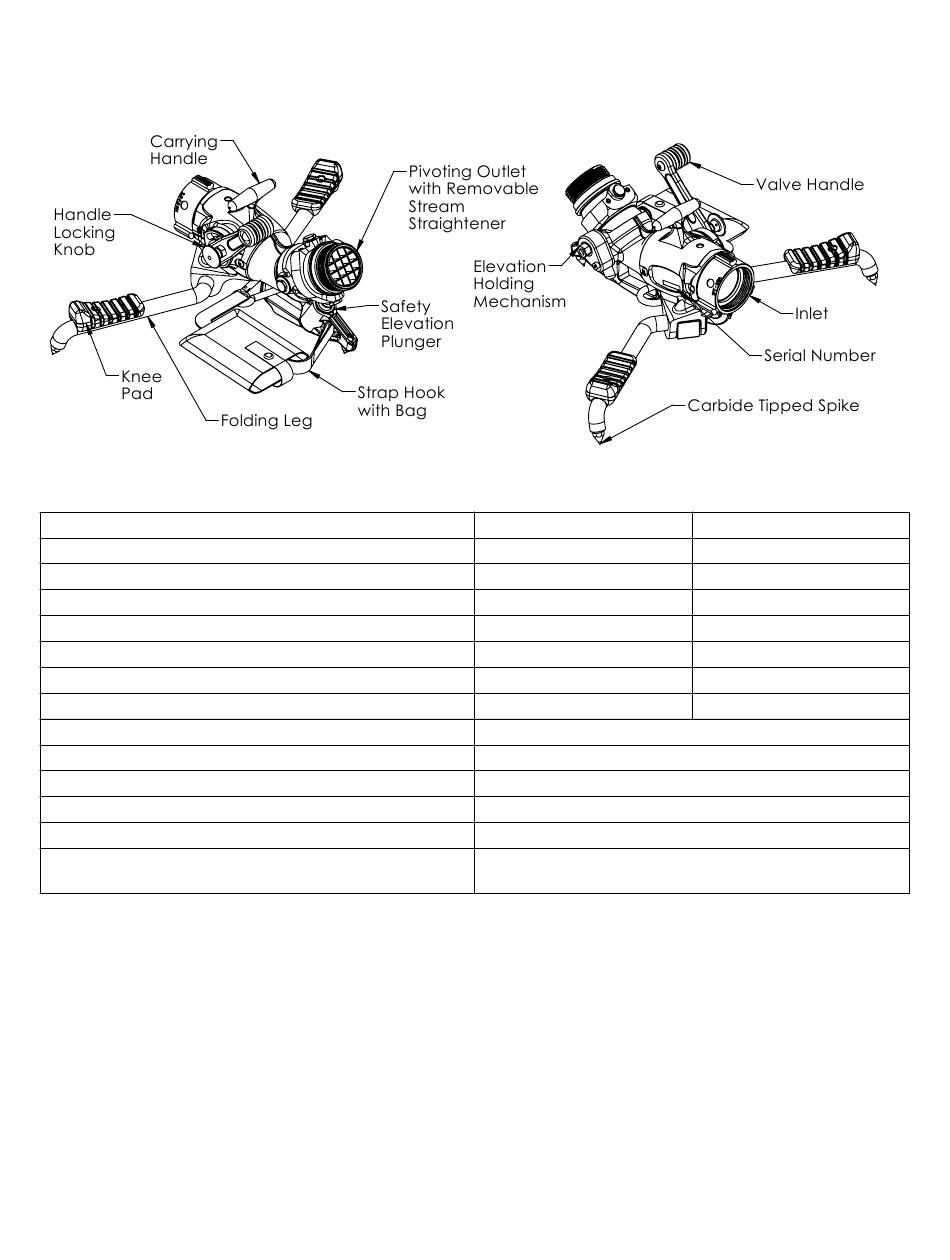

Figure 3.1
14.8"L x 9.0"W x 9.4"H
15"L x 25.8"W x 10"H
15 lbs
300 psi
175 psi
up to 500 gpm
33 to 120°F
-40 to 150°F
20 to 60° above horizion
30 to 60° above horizon
+/- 20° either side of centerline
Aluminum 6000 series hard anodized MIL8625 class 3 type
2, stainless steel 300 series, nylon 6-6
Table 3.2
5
(375mm x 230mm x 240mm)
(380mm x 655mm x 254mm)
(6.9 kg)
(20 bar)
(12 bar)
(up to 2000 l/min)
(1 to 50°C)
(-40 to 65°C)
2 ½" NH Female
2 ½" NH Male
