GENERAL INFORMATION

Master Foam nozzles come in three ranges. Each range determines water flow with baffle options. The removable baffle allows for
flushing debris. On most Master Foam nozzles, changing the baffle changes the nozzle's water flow rate.
A vacuum created by water velocity pulls foam concentrate into the nozzle. Foam concentrate enters the peripheral jet uniformly at
discharge without causing turbulence. Mixing and aeration happen immediately, resulting in superior stream quality and reach.
Master Foam Nozzles come with calibrated orifice plates to set the foam percentage. Orifice plates are easily inserted into the side foam
port. A concentrate hose with camlock fitting (military standard MS27019) connects to the foam port capturing the orifice plate.
Fog angle is user adjustable between 90° wide fog and straight stream. Higher flow (1000 GPM and higher) nozzles provide a set screw
for locking in a fog angle.
3.1

VARIOUS MODELS AND TERMS

RANGE
INLET COUPLING
RATED PRESSURE
FLOW RATING
FOAM ORIFICE PLATES
CONCENTRATE HOSE
SIZE
NOZZLE CAMLOCK
CONNECTION SIZE
FOG ADJUSTMENT
FOG TEETH
OPTIONAL FOAM
ASPIRATOR
Understand manual before use
Obtain safety information at
tft.com/serial-number
©Copyright Task Force Tips LLC 2015-2020
SMALL
2.5" (65mm) NH, NPSH, or BSP
100 psi (7bar)
250, 350, 500, or 750 gpm
(950, 1325, 1900, or 2900 l/min)
0.5%, 1%, 3%, and 6%
10' x 1.5" diameter (2.4m x 38mm)
UV Resistant
1.5" (38mm)
Halo ring is made from a non-
corroding high temperature
polymer
Rubber molded bumper and fog
teeth
FJ-LX-M FoamJet low expansion
air-aspirating attachment
®
+1 219 462-6161 • 800 348-2686
®
tft.com • MADE IN USA
WARNING
U.S. Patent # 6,102,308
Serial Number
Coupling
Foam Inlet
Orifice Plate
MEDIUM
3.5" (89mm) NH, NPSH, or BSP
100 psi (7bar)
1000 or 1250 gpm
(3800 or 4800 l/min)
1% and 3%
10' x 1.5" x 2.0" diameter
(2.4m x 38mm x 52mm)
UV Resistant
1.5" (38mm)
All aluminum
Rotate using folding handles
Cut metal fog teeth, hard anodized
aluminum
n/a
Table 3.1
TM
Halo Ring

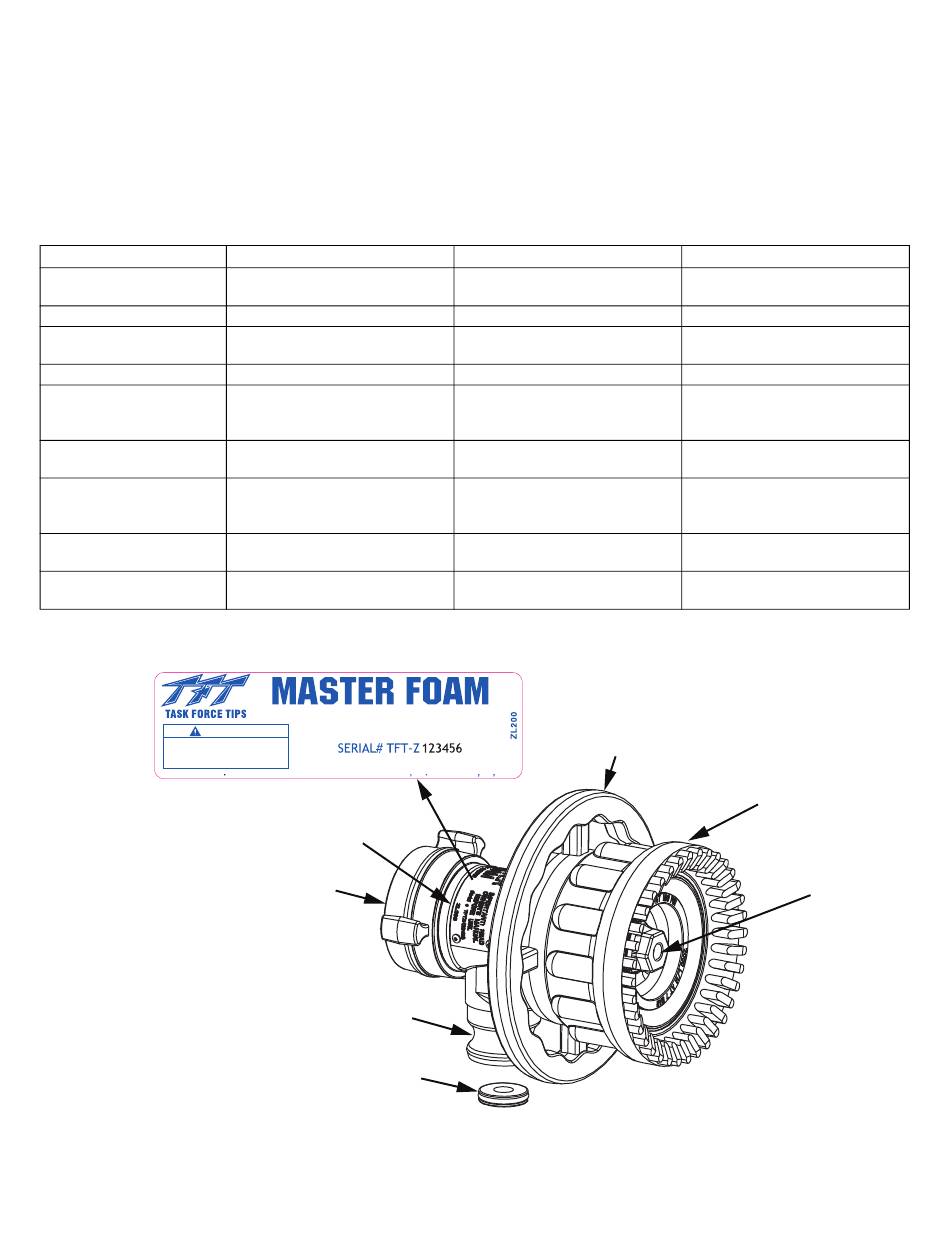

Figure 3.1A
6
LARGE
3.5" (89mm) NH
4.0" (100mm) BSP
100 psi (7bar)
1500 or 2000 gpm
(5700 or 7600 l/min)
1% and 3%
10' x 2.0" diameter (2.4m x 52mm)
UV Resistant
2.0" (52mm)
All aluminum
Rotate using folding handles
Cut metal fog teeth, hard anodized
aluminum
n/a
Stream Shaper and Bumper
Baffle
