INSTRUCTION FOR INSTALLATION, OPERATION, AND MAINTENANCE
DANGER
TASK FORCE TIPS LLC
MADE IN USA · tft.com
©Copyright Task Force Tips LLC 2010-2021
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/
serial-number.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.

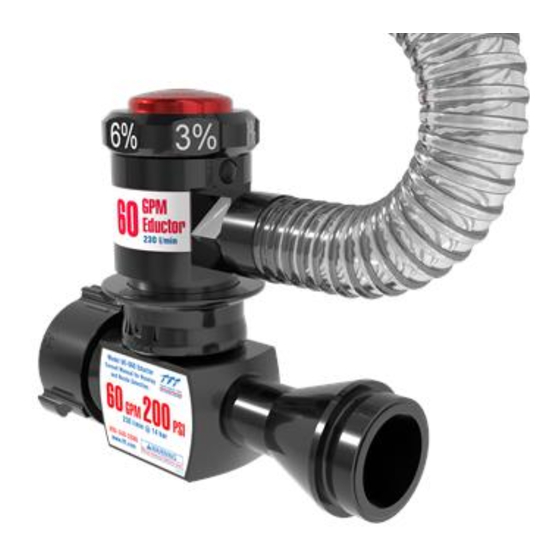

EDUCTOR
125 SERIES IN-LINE
Models:
60 gpm (225 L/min)
95 gpm (263 L/min)
120 gpm (450 L/min)
125 gpm (475 L/min)
Concentration Settings:
OFF, 1/4%, 1/2%, 1%, 3%, 6%
Inlet Pressure:
200 psi (13.8 bar)
160 psi (11 bar)
145 psi (10 bar)
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 · 219-462-6161 · Fax 219-464-7155
1
Maximum
Back Pressure:
130 psi (9 bar)
100 psi (6.9 bar)
95 psi (6.5 bar)
LIU-330 February 15, 2021 Rev09
