1

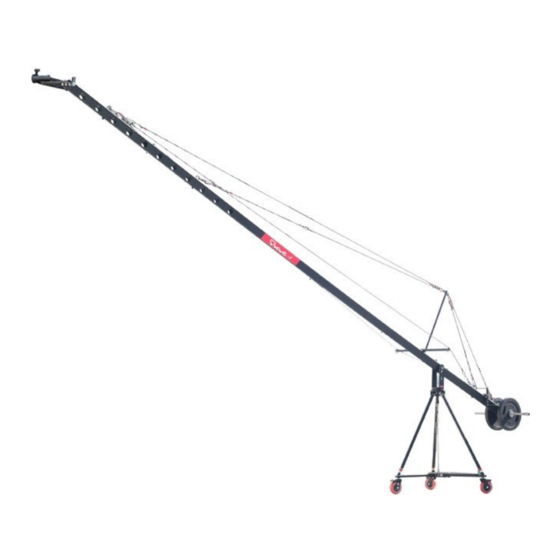

24ft Camera Crane Base Kit
(P-W5P24-BASE)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.

Advertisement

loading

Related Manuals for PROAIM P-W5P24-BASE

Summary of Contents for PROAIM P-W5P24-BASE

  • Page 1 24ft Camera Crane Base Kit (P-W5P24-BASE) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

  • Page 2: Safety Hints

    Hooks Weight Bar with Closers Please use following sequence of pictures and text in order they appear to set up your new PROAIM 24FT BASE KIT. Technical assistance is available by contacting our sales representative. Safety Hints ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT DAMAGE TO EQUIPMENT &...
  • Page 3  To prevent any harm or injury, properly join all sections of the crane. It is suggested to use the support stand while telescoping the complete length.  Test operation before usage. Neglect of such a step can cause harm to equipment or operator. ...
  • Page 4  Set the position of wheels and lock wheels with provided lever which allows you to have stable shoots.  Attach dolly platform to D-37, screw in the Allen bolts to desired positions and tighten all connections with the help of Allen key. ...
  • Page 5  To add stability to your Jib, attach wire tensioner with hook on Locking clamp, then attach one end of safety chain with hook on D-37 dolly and attach other end with wire tensioner as shown below.  Wire tensioner and safety chain setup should be properly aligned to ensure stability.
  • Page 6  Using the same approach insert 4th, 3rd and remaining sections to the joints and secure via bolts as shown below. Cable Guide & Rod Support Setup  Attach cable guide to cable guide clamp on 5th section properly. Loosen the bolts on cable guide clamp in order to attach cable guide support rod to it.
  • Page 7  Attach 3 hooks one after another to four wire tensioners.  Attach 2 hooks on both slots on cable guide. Then attach two extra hooks to hook attach to front side and two hooks to hook attached on back side. Cables Setup ...
  • Page 8  Now join 3.7ft cable & 6.7ft Cable with Red Sleeves.  Attach the end of 6.7ft cable to one of the hook attached on front side of cable guide and another end of 3.7ft cable with hook attached to 3rd section of jib. ...
  • Page 9 Head Platform Setup  Install Head Platform assembly (leveling arm up) to the end of the smallest section with the provided bolt, shaft collars, washers and nut. Tighten all the Allen bolts and nuts to secure properly. NOTE: Install the pan tilts head. ...
  • Page 10 Attach LCD mount L-bracket to bracket already attached to rear section with knob.  Now mount LCD (not included) to L-bracket and tighten with screw driver. YOUR PROAIM 24ft CAMERA CRANE BASE KIT ALL DRESSED UP AND READY TO GO (SHOWN WITH OPTIONAL ACCESSORIES)
  • Page 11 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
