PROAIM P-WV-2PL-SD Assembly Manual

10' wave-2 jib crane, dolly stand for camera heads
Hide thumbs Also See for P-WV-2PL-SD:

Advertisement

Quick Links

Download this manual
1

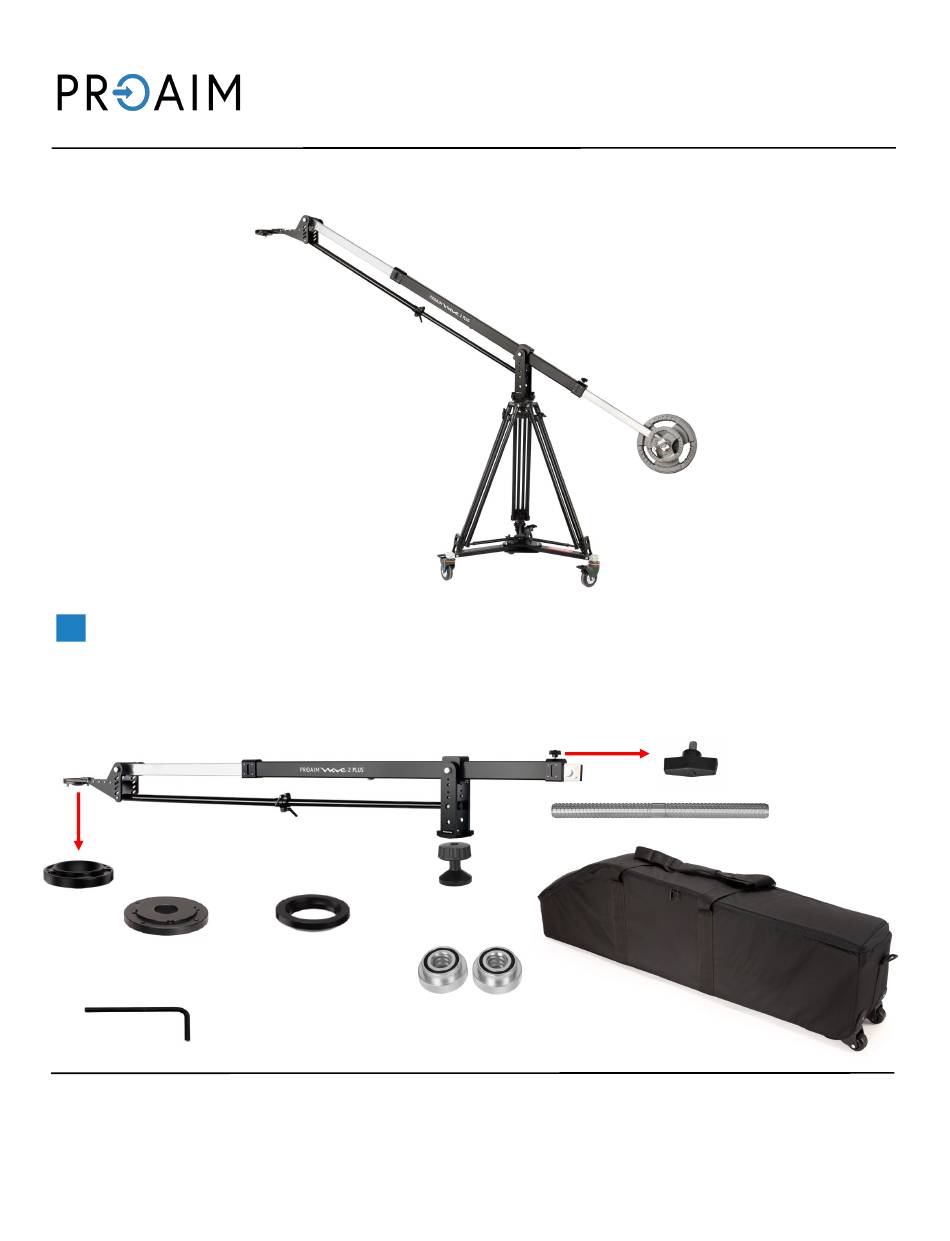

10' Wave-2 Jib Crane, Dolly Stand for Camera Heads
(P-WV-2PL-SD)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Knob
Weight Rod
10' Wave Jib Crane with 100mm Bowl
Locking Knob
75 mm
Flat Base Plate
Conversion Ring
Storage Bag
1 X L-Type Allen Key
(Size: 3/16")
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.

Advertisement

loading
Need help?

Need help?

Do you have a question about the P-WV-2PL-SD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROAIM P-WV-2PL-SD

Summary of Contents for PROAIM P-WV-2PL-SD

  • Page 1 10' Wave-2 Jib Crane, Dolly Stand for Camera Heads (P-WV-2PL-SD) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

  • Page 2: Table Of Contents

    CST-100 Tripod Stand , Spreader & Portable Dolly Portable Dolly Aluminum Spreader CST-100 Tripod Stand Storage Bag INDEX Sr. No Particulars Page No. CST-100 Tripod Stand Assembly Aluminum Tripod Spreader Portable Dolly Assembly CST-100 Stand Mounting on Dolly Jib Section Assembly Jib mounting on Tripod Stand Weight Rod &...

  • Page 3: Cst-100 Tripod Stand Assembly

    Camera Jib Setup CST-100 Tripod Stand Assembly • Stretch and open the legs of the Tripod Stand. • To adjust the height of the tripod, loosen all three adjustment knobs. • Adjust the tripod at the desired height and re-tighten the knobs to secure the tripod. NOTE: The Stand has a minimum and maximum height of 33.5"...

  • Page 4: Aluminum Tripod Spreader

    Aluminum Tripod Spreader • Take out the Spreader and spread it on the floor. • Loosen the Spreader's knob and extend the feet's length. Re-tighten the knob to secure them at the desired length. Feature: Each leg has adjustable knobs that allow for stable adjustment of the tripod's height.

  • Page 5: Portable Dolly Assembly

    Portable Dolly Assembly • Loosen the side bolt of the Portable Dolly us- ing the 13mm spanner. • Remove the Bolt nut, washer, and Bolt. • Follow the same steps to remove the side Bolt from other sides of the Dolly. •...

  • Page 6: Cst-100 Stand Mounting On Dolly

    CST-100 Stand Mounting on Dolly • Place the tripod feet on the Dolly and secure them using the elastic clips. • Press the clamps to lock the wheels at a static position. Feature: The Tripod with Spreader provides immense support with an incredible payload of up to 80kg / 176lb, ensuring your setup is highly stable and secure.

  • Page 7: Jib Mounting On Tripod Stand

    NOTE: Ensure the central fork is properly seated in the tripod bowl, maintaining a perpendicular position. Any off-axis installation can hinder the jib's movement. During installation, the arm will be front-heavy; therefore, use a grip stand or have an assistant hold the camera end to prevent it from falling. Similarly, when mounting the camera, you may need a grip stand or assistance at the rear of the jib to ensure stability and prevent any mishaps.
  • Page 8 • After adding the weight, insert a weight closure to secure the weight from falling. NOTE: It's crucial to ensure that the opposite end of the jib arm is correctly secured to prevent any sudden upward movement when adding additional weights. •...

  • Page 9: 75Mm Conversion Ring Setup

    75mm conversion Ring 100mm Bowl Flat Base Plate 75mm Conversion Ring Setup NOTE: Wave jib has a 100mm bowl attached to it’s Camera plate. • Attach the 75mm conversion ring to the 100mm bowl. • Mount 75mm Fluid head (Not Included) on the Conversion ring and secure it using the locking knob.

  • Page 10: 100Mm Bowl Setup

    • Unlock the Red knob and mount the Camera (Not Included) on the fluid head. • Your Camera is now securely mounted on the fluid head. 100mm Bowl Setup • Mount the 100mm Fluid head (Not Included) on the 100mm bowl and secure it using the locking knob.

  • Page 11: Flat Baseplate Setup

    • Remove the bowl. Flat Baseplate Setup NOTE: Remove the 100mm Bowl before mounting the Flat baseplate. • Remove the bolts and attach the Flat Baseplate to the bottom of the camera mount. • Insert the bolts. NOTE: Attach the flat base plate to the bottom of the camera mount for the underslung Camera setup.

  • Page 12: Joystick Controller Box Mounting

    Joystick Controller Box (Not Included) Mounting • Attach Joystick Controller (Not Included) by sliding it on the weight rod and securely tighten it using the provided knob. Balancing Tips Counter Weight 15kg 20kg 25kg Counter Balance 30kg 40kg 50kg Measured Length 305cm 259cm 208cm...

  • Page 13: Final Setup

    YOUR PROAIM 10 WAVE-2 JIB CRANE DOLLY STAND ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
