PROAIM P-WV-2PL Assembly Manual

10 wave-2 jib crane for camer

Download this manual

10' Wave-2 Jib Crane for Camer

(P-WV-2PL)

A s s e m b l y M a n u a l

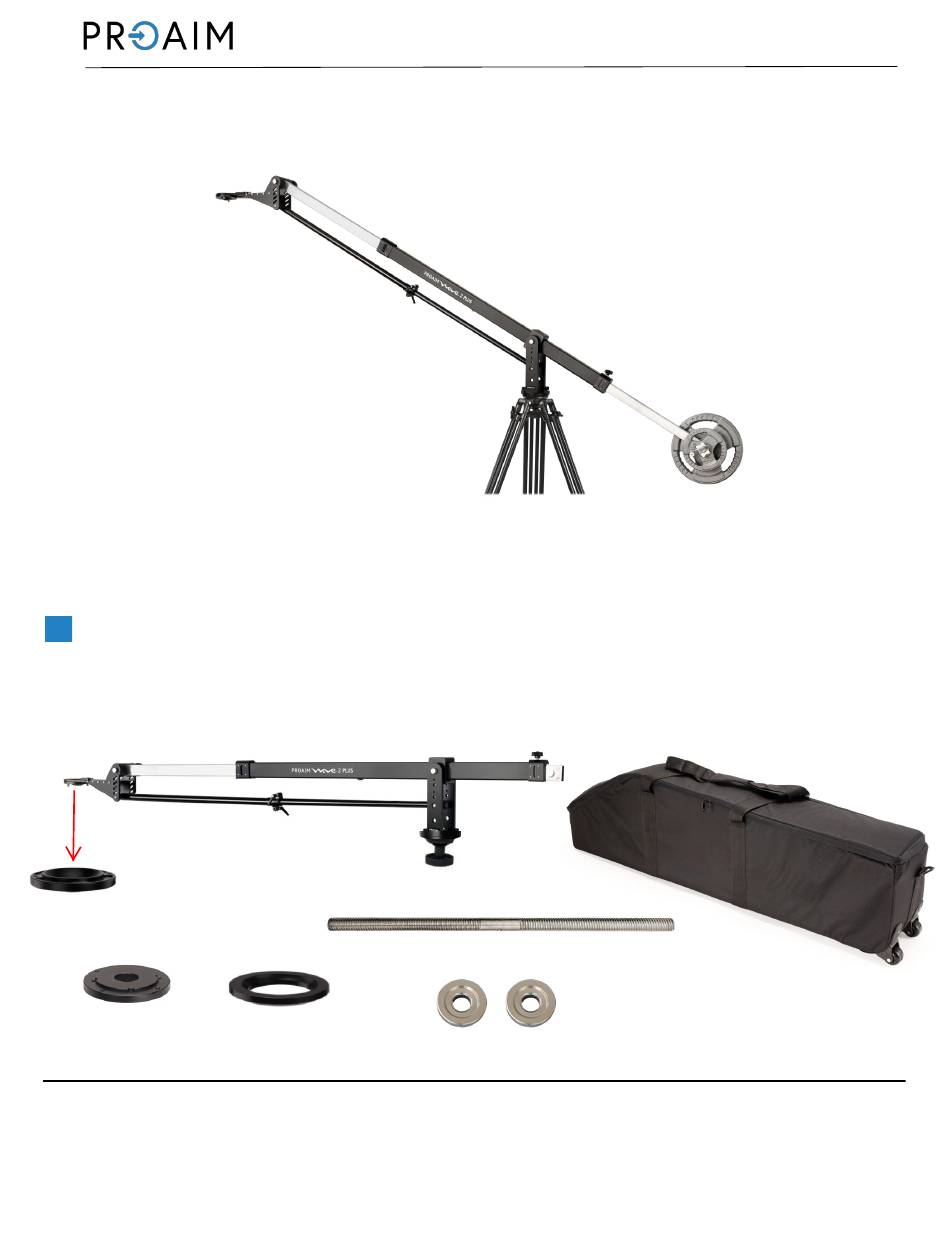

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Wave-2 Plus Camera Jib Arm

With 100mm Bowl Adapter

100 mm Bowl

Weight Bar

Storage Bag

Flat Base Plate

75mm Conversion Ring

Weight Closer

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Page 1 10' Wave-2 Jib Crane for Camer (P-WV-2PL) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Camera Jib Setup Mount the central fork of the Jib arm to the 100mm bowl mount tripod (Not-Included) and attach the  bottom clamp for a secure connection. NOTE: Ensure that the Central Fork is seated in the bowl properly, i.e., perpendicular to the tripod bowl. Off-axis installation may hamper the jib movement.
Page 3 Loosen the knobs of the Jib arm, extend the front telescopic post as per your requirement and tighten all  knobs to secure. Camera Mounting Setup Mount your fluid head (Not Included) onto the 100mm bowl plate attached to the jib camera mount ...
Page 4: Balancing Tips
For an under-slung setup, attach the flat base plate to the bottom of the camera mount. Mount • the camera setup, and secure the camera properly. Lcd Mounting Setup LCD Mounting: Attach your LCD Mounting Arm to Jib Fork and secure it properly •...
Page 5 YOUR PROAIM 10’ WAVE-2 JIB CRANE FOR CAMERA ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
