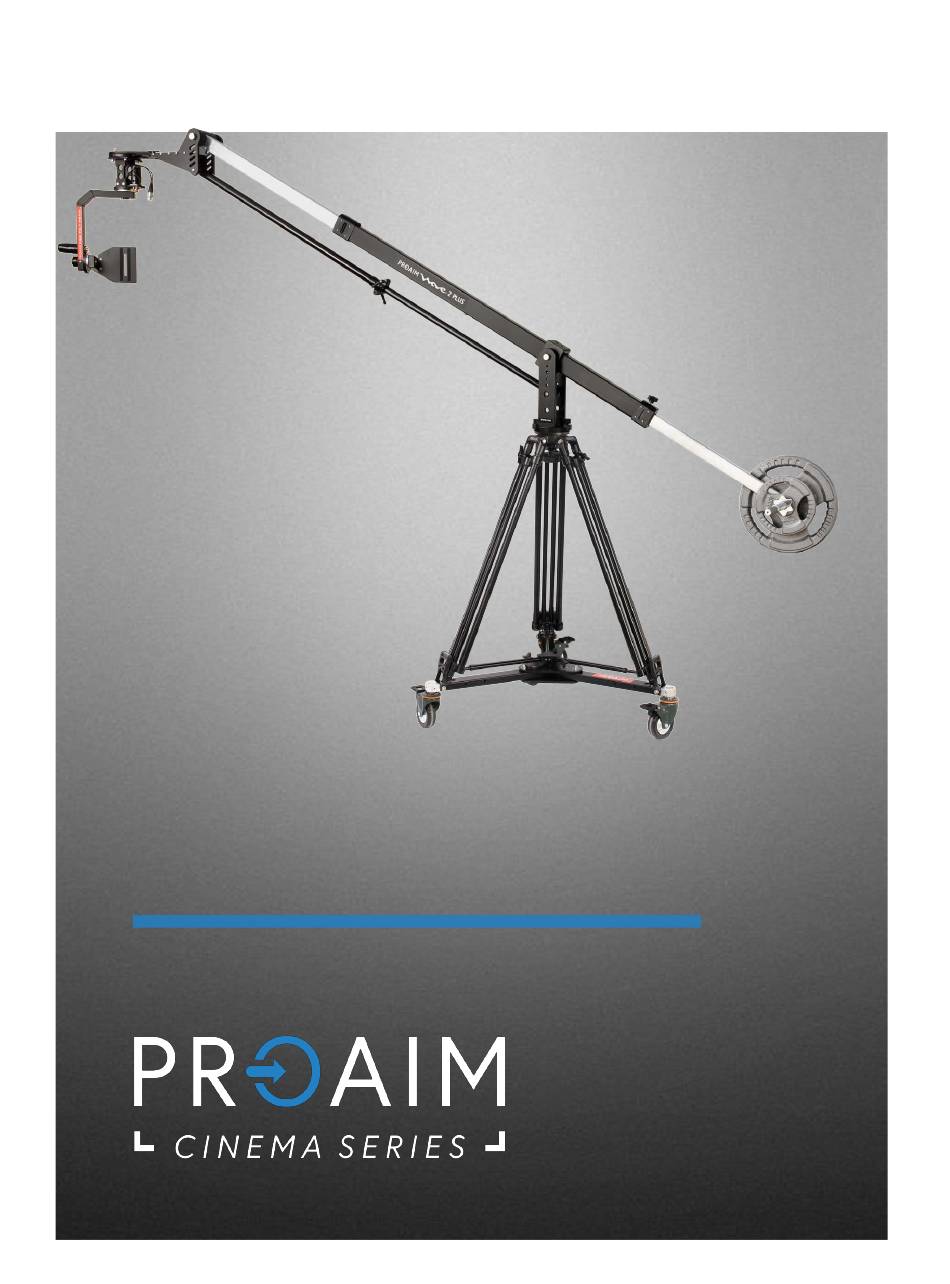

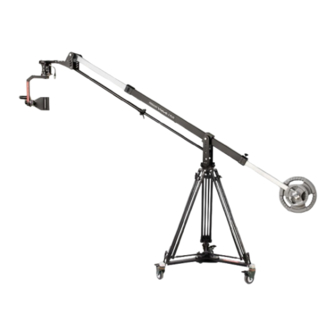

- Page 1 10' Wave-2 Camera Jib Crane (P-WV-2PL-PP) Instruction Manual...
- Page 2 At Proaim, our goal is to ensure 100% Customer Satisfaction in all that we do. We back our sales with a 1 year warranty from the date of purchase and work hard to resolve any problems in the unlikely event one should arise.
- Page 3 Our mantra of continuous improvement has been the guiding principle of how we conduct our business since day one. Once you have the opportunity to experience your new Proaim 10' Wave-2 Plus Telescopic Jib Arm Crane Film Production Package, we hope you will agree that we craft quality products at a competitive price.
-
Page 4: What's In The Box
Introduction PROAIM welcomes you to the new and modernized era with its Proaim 10' Wave-2 Plus Telescopic Jib Arm Crane with CST-100 Stand, Portable Dolly, SR. Pantilt head & Zoom Controller a portable filming solution to increase your production value. The Robust jib crane is specifically designed travel crane for indoor &... - Page 5 ALUMINUM TRIPOD SPREADER In case of spreader, Take out the Spreader and spread it on floor and open the legs (as per your requirement) of spreader with the help of provided knob. Now mount the Tripod Stand on Spreader, lock it in place with the rubber grips. ...
- Page 6 Now mount the Tripod Stand on Dolly, lock it in place with the rubber grips. Adjust riser height of Tripod by loosening lock controls located on each leg, slide the stand up to a desired level position and lock leg extensions in place to secure. ...
- Page 7 NOTE: It is important to make sure that the Central Fork is seated in the bowl properly. That means perpendicular to the tripod bowl. Off axis installation may hamper movement of the jib. Also you may need the assistance of a grip stand to hold the camera end of the arm during installation preventing it from falling as it will be front heavy at this point.
- Page 8 Loosen the knobs of Jib arm to extend the front telescopic post of the Jib. Extend the Jib as per your requirement and tighten all the knobs to secure. Loosen the bolts and remove the 100mm bowl. ...
- Page 9 Mount Sr. Pan Tilt Head, follow these steps: Attach the flate base plate and secure by tightening the bolts and then attach the Pan Tilt • Head and secure by tightening the bolts. Now, mount your camera with camera • mounting screw on Pan Tilt Head.
-
Page 10: Balancing Tips
Camera Weight 10kg Counter Balance PROAIM 10' WAVE-2 CAMERA JIB CRANE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
