7' Wave-2 Jib Crane for Camera/Gimbals/Pan
Tilt Heads (P-WV-2)
A s s e m b l y M a n u a l

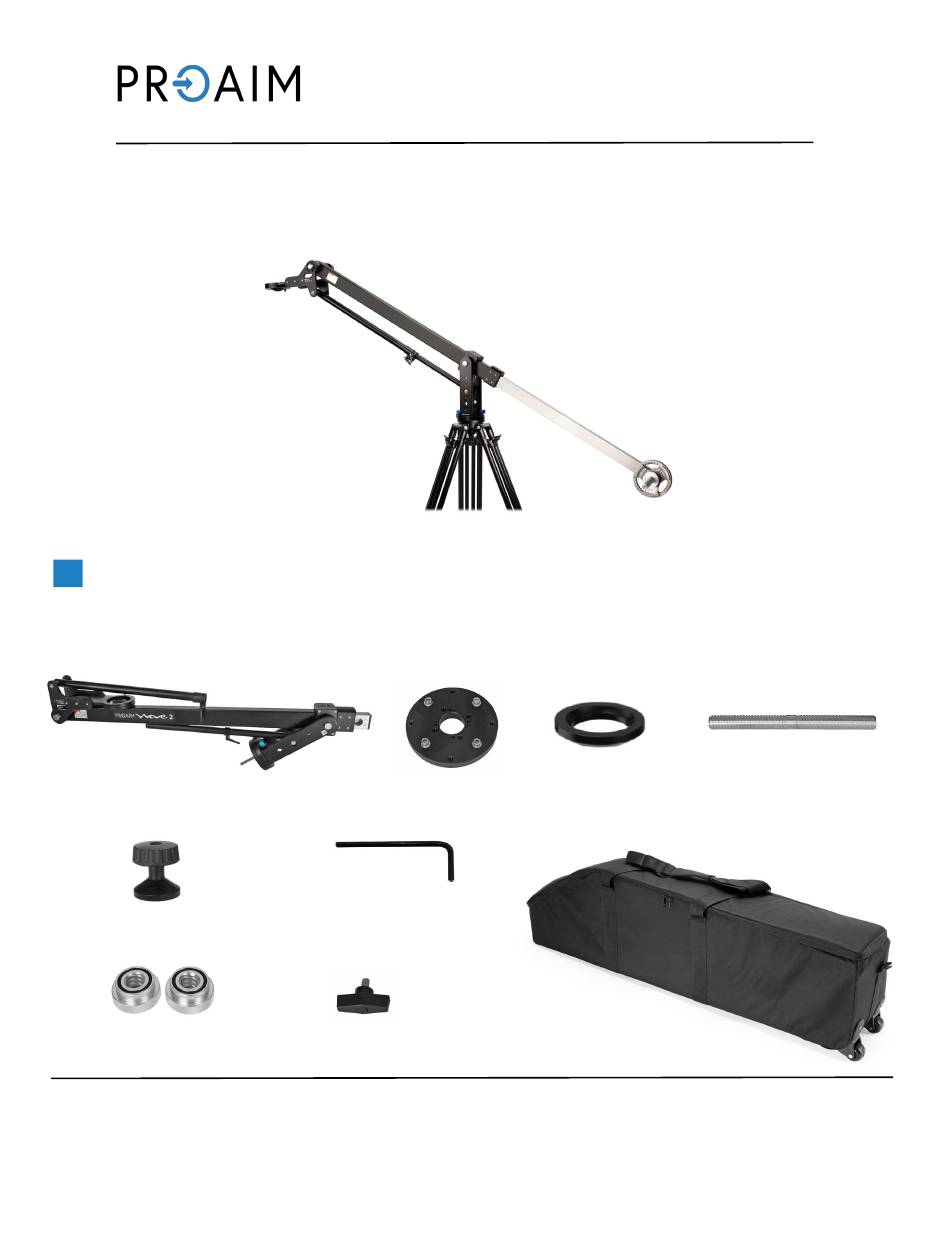

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
75 mm
Weight Rod
7' Wave Jib Crane with 100mm
Flat Base plate
conversion Ring
Bowl
1 X L-Type Allen Key
Locking Knob
(Size: 3/16")
Storage Bag
Knob
Weight Closers
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Related Manuals for PROAIM P-WV-2
Summary of Contents for PROAIM P-WV-2
- Page 1 7' Wave-2 Jib Crane for Camera/Gimbals/Pan Tilt Heads (P-WV-2) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 INDEX Sr. No Particulars Page No. Jib Section Assembly 75mm Conversion Ring setup 100mm Bowl setup Flat Base Plate Setup Balancing Tips Final Setup...
- Page 3 Camera Jib Setup Jib Section Assembly • Open the first section of the Camera plate adjustment rod. • Now, align both the Camera plate adjustment rod sections as shown in the image. • Connect the first section of the Camera plate adjustment rod with the second section.
- Page 4 • Once loosened, extend the telescopic weight section. • Insert the Weight rod into the weight section. • Put the weight (Not Included) on the weight Rod. • After adding weight, insert a weight closure to secure the weight from falling. NOTE: Please ensure that the opposite end of the jib arm is properly secured to prevent any...
- Page 5 75mm conversion Ring 100mm conversion Ring Flat Base Plate...
- Page 6 75mm Conversion Ring Setup NOTE: Wave jib has a 100mm bowl attached to its Camera plate. • Attach the 75mm conversion ring to the 100mm bowl. • Now, mount 75mm Fluid head (Not Included) on the Conversion ring and secure it using the locking knob. •...
- Page 7 • The Camera is now securely mounted on the fluid head. • The setup is ready to use. • To remove the 100mm bowl, loosen the Allen bolt and remove it. • The bowl has been removed as shown in the pictures.
- Page 8 • The Camera is now securely mounted on the Sr. pan tilt head. • Attach the 4-pin male connector of Cable to 4-pin female connector of Head for Panning & Tilting. • Attach the joystick box by sliding it onto the weight rod (Not Included) and then securely...
-
Page 9: Balancing Tips
Camera Weight Counter Balance Length 7 ft 4.10 ft 1 Kg 3.74 kg 43.32 kg YOUR PROAIM 7' WAVE-2 JIB CRANE FOR CAMERA / GIMBALS / PAN TILT HEADS ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) - Page 10 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
