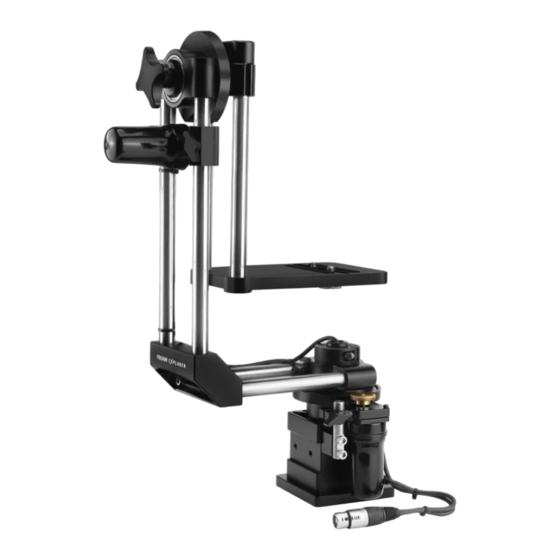

Explorer Pan Tilt Head for Camera Jib Crane
(PT-EXPR-01)
A s s e m b l y M a n u a l
What's In The
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Universal
3mtr Cable
15mtr Cable
12V AC Adapter
Adapter
Controller Box
4 x Bolts
2 x Camera Bolts
(Sizes: 1/4"-1")
(Sizes: 1/4"-20 , 3/8"-16)
4 x Knobs
Pan Tilt Head
O-Ring
4 x Bolts
4 x Bolts
Bolt
4 x Washers
(Sizes: 1/4"-3/4")
(Sizes: 1/4"-5/8")
2 x Fuse
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PROAIM Explorer
Summary of Contents for PROAIM Explorer
- Page 1 Explorer Pan Tilt Head for Camera Jib Crane (PT-EXPR-01) A s s e m b l y M a n u a l What’s In The Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 NOTE: You can only balance the camera on the head after detaching the motor gear; otherwise, the motor will not function properly. • Then mount your camera on the explorer head's camera plate. • Horizontally balance your camera by placing the camera in the center of the camera plate.
- Page 3 Explorer Pro Pan Tilt Head Setup NOTE: Proaim Explorer Pan-Tilt head is precisely engineered, easy to operate & a silent companion for accurate panning & tilting motions. • Loosen the Pan Tilt Head’s Knob and increase its height.
- Page 4 • Connect the female end of the cable to the controller box. NOTE: Any 12 volt battery may operate this Pan Tilt Head as long as the Connector and the #1 Negative pin & #4 Positive pin of Cable meet together.
- Page 5 • To change the direction of Panning move the joy-stick to the left and right. And to change the direction of the Tilt, move the joystick back and forth/ up and down. NOTE: Joystick remote controller provides a great range of pan and tilt speed control with an excellent rotation for a complete revolution in any axis.
- Page 6 & it is Suitable for surroundings such as sports events, small and large studios, churches, parliaments, etc. YOUR PROAIM EXPLORER PAN TILT HEAD ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
