1
Multi-Monitor VESA Mount System
(P-MLMT-01)
A s s e m b l y M a n u a l

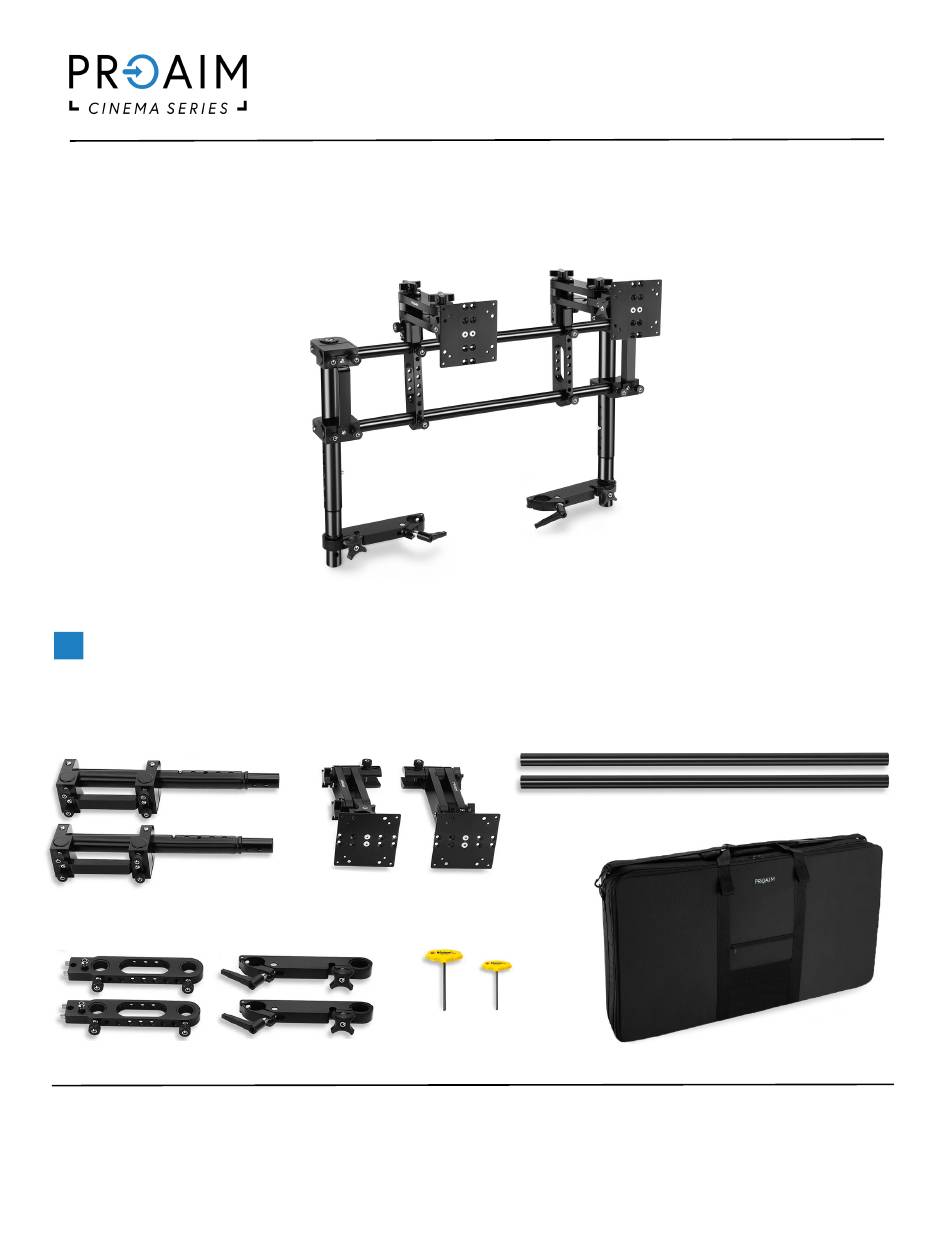

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
2 x Cross Tubes
2 x VESA Mounts
2 x Poles
With Adjustable Arm
2 x T-Type Allen Keys
2 x Cross Bars
2 x Clamps
Bag Packing
(Sizes: 3x16" & 4mm)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CINEMA P-MLMT-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROAIM CINEMA P-MLMT-01

Summary of Contents for PROAIM CINEMA P-MLMT-01

  • Page 1 Multi-Monitor VESA Mount System (P-MLMT-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

  • Page 2: Table Of Contents

    INDEX Sr. No Particulars Page No. Multi-Monitor VESA Mount Setup Clamp Assembly Pole Mounting Cross Tube Mounting Cross Bar Mounting VESA Mount Mounting with Adjustable Arm LCD Monitor Mounting Sound Chief Cart Setup VESA mounting with clamp Clamp Mounting VESA Mount Mounting VESA mounting without clamp VESA Mount Mounting with Adjustable Arm Cross Tube Mounting...

  • Page 3: Multi-Monitor Vesa Mount Setup

    Multi-Monitor VESA Mount Setup Clamp Assembly • Loosen the ratchet knob and open the clamp. • Align and attach the clamp to the rod and tighten it using the ratchet knob. • Similarly, attach the other clamp to the rod as shown in the image.

  • Page 4: Cross Tube Mounting

    • Follow the same procedure to attach the other pole. NOTE: Five position holes are provided on the pole so that height be adjusted according to the setup requirement. Feature: The provided holes helps in adjusting the height at five different positions for seated/ standing monitor viewing angles.

  • Page 5: Cross Bar Mounting

    • Similarly, insert the second cross tube. Cross Bar Mounting • Loosen both the knobs of the cross bar. • Now align the holes of the cross bar to cross tubes, and then insert the cross bar by simply sliding it in. •...

  • Page 6: Vesa Mount Mounting With Adjustable Arm

    • Properly tighten the knobs of the pole to secure the assembly. • Then insert the rod end cap to secure the cross tube. • Now, secure it using the provided knob on the pole. VESA Mount Mounting • Loosen the knob of the Adjustable Arm. •...
  • Page 7 • Now, insert the bolt by aligning the thread holes of the Cross Bar with the VESA Mount and securely tighten it using a 4mm Allen key. • Tighten the knob of the Adjustable Arm and secure it on the cross bar. •...

  • Page 8: Lcd Monitor Mounting

    • Now detach the VESA Mount. LCD Monitor Mounting • Place the VESA Mount to the LCD monitor by aligning it with the thread hole at the back of the LCD monitor (Not Included). • Insert the bolt and tighten it using a 3/16”mm Allen key.

  • Page 9: Sound Chief Cart Setup

    Sound Chief Cart Setup Method 1 : VESA mounting with clamp Clamp Mounting • Loosen the ratchet knob and open the clamp. • Align and attach the clamp with the rod and then tighten it using the ratchet knob. VESA Mount Mounting •...

  • Page 10: Vesa Mounting Without Clamp

    Method 2 : VESA mounting without clamp VESA Mount Mounting • Insert the pole into the rod of the Sound chief cart. • Now loosen the knobs of the top and bottom clamp and slide the pole downwards and then tighten both the knobs. NOTE: The pole's joint should fall in the center of the clamp and then it should be secured by tightening the knob.

  • Page 11: Crossbar Mounting

    Crossbar Mounting • Loosen both the knobs of the cross bar. • Now align the holes of the cross bar to cross tubes, and then insert the cross bar by simply sliding it in. • After inserting the cross bar, securely tighten the knobs, and similarly insert the second cross bar.

  • Page 12: Assembly Of Vesa Mount

    • Insert the rod end cap to secure the cross tube. • Now, secure it by tightening the pole’s knob. Assembly of VESA Mount with Adjustable Arm • Loosen the knob of the Adjustable Arm. • Loosen and remove the bolt present on the side of the Adjustable Arm.

  • Page 13: Lcd Monitor Mounting

    • Tighten the knob of the Adjustable Arm to secure it on the cross bar. • Follow the same procedure to attach the other Adjustable Arm and Mount. • Detach the VESA Mount by loosening the knob attached to it. LCD Monitor Mounting •...

  • Page 14: Final Setup

    Now our Multi-Monitor VESA Mount System setup is ready to use. You can mount two monitors to your cart. YOUR PROAIM MULTI-MONITOR VESA MOUNT SYSTEM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
