1

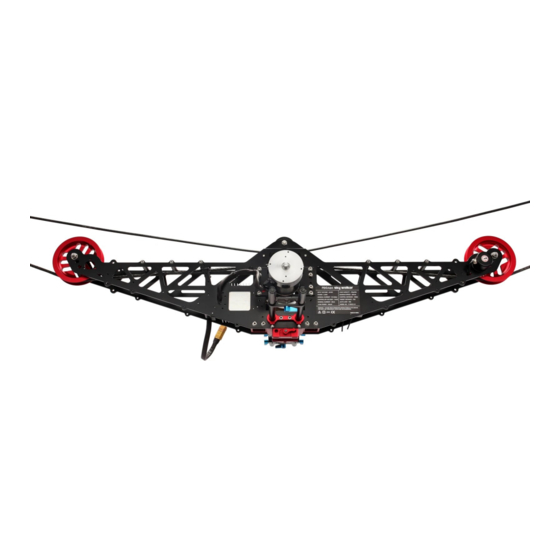

Sky-Walker Pro Cinema Cable cam System
(P-SWCC-10)
A s s e m b l y M a n u a l

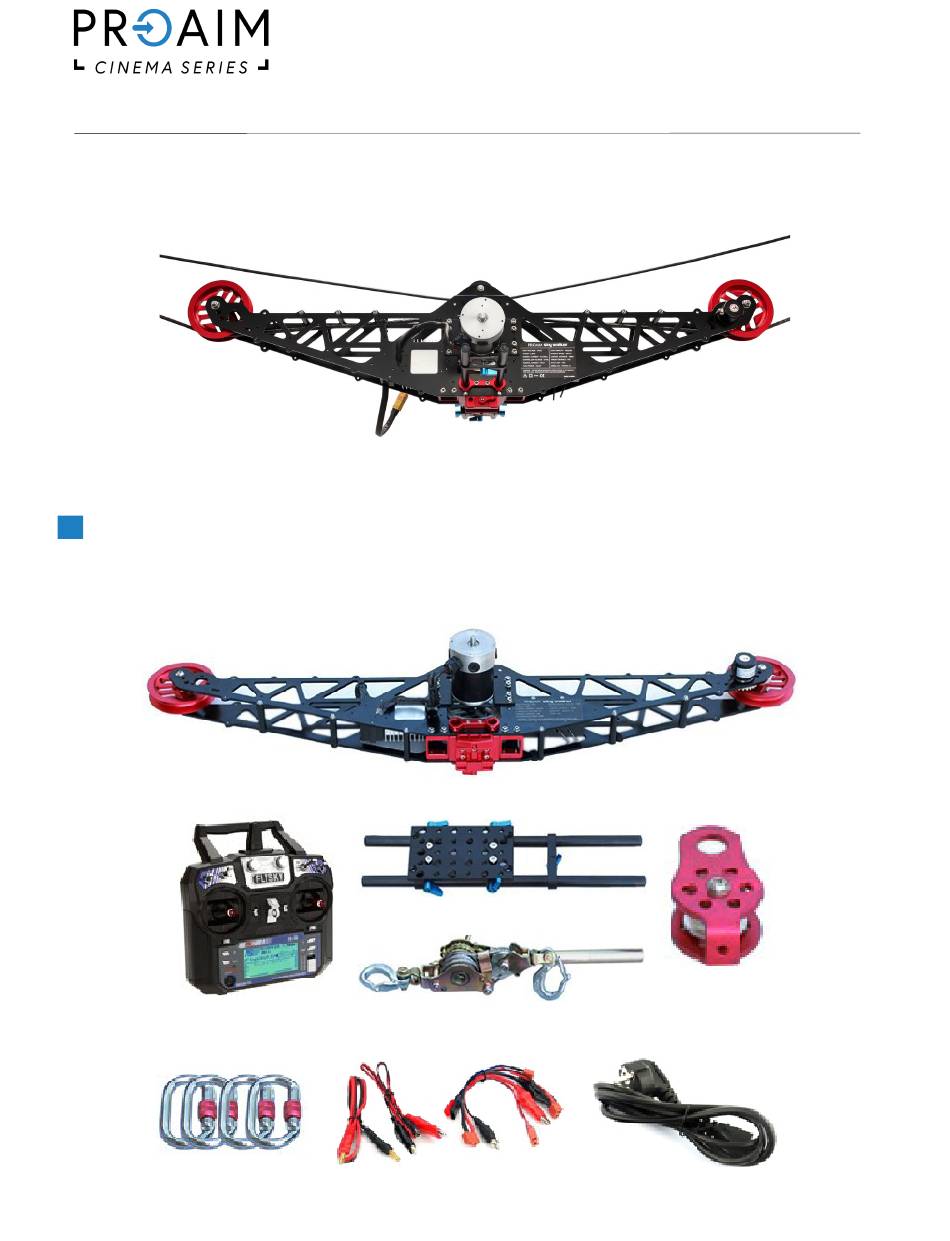

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Cablecam
Balance Assembly
Chain Pulley
Remote
Chain Puller
Climbing Hooks
Power Cable
Charger Accessories
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PROAIM CINEMA P-SWCC-10
Summary of Contents for PROAIM CINEMA P-SWCC-10
- Page 1 Sky-Walker Pro Cinema Cable cam System (P-SWCC-10) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Stand With 100mtr Dyneema Rope 100mtr Steel Safety Cable Flight Transport Case Specifications Input Voltage Power 2.2KW Nominal Current 91A (Max) Controller voltage Nominal Current 85mA Tx/Rx Power 100mw Load Capacity 10Kg/22lb Maximum Speed 40km/h Control Distance 100mtr Target Distance Auto Loop Product size (L x W x H) 113cm x 20cm x 23.5cm...
- Page 3 Sky-Walker Setup • Loosen bolts and slide out the ends of the leg till fully opened. Then tighten the bolts again. • Open Wing Nut from Threaded Rod and attach it with one side each of both the legs of Stand. •...
- Page 4 • Attach one end of the cable to an anchor. Then pull the chain puller to drag the rope. • Insert the rope into Pulley and attach Climbing Hook. • Attach this pulley with Climbing Hook on the same anchor but slightly above Chain Pulley.
- Page 5 NOTE: The Main Drive Wheel and two Outer Wheels can be adjusted depending on the rope tension. Adjustment of the hooks will cause the rope to be pushed harder or less hard against the Main Drive Wheel. Since the Main Wheel relies on tension against the cable, it is important to adjust the hooks properly.
- Page 6 NOTE: Kindly check the gap between rope & wheels for proper functioning of Cable cam. In case, there is a gap between the rope & wheel, please minimize it by adjusting the motor clamp. To do the same, unscrew the Motor Clamp bolts with an Allen key on both sides as shown in the image.
- Page 7 • Do not touch any part of the model that may generate heat during operation, or immediately after use. The engine, motor or speed control, may be very hot and can cause serious burns. • Misuse of this product may lead to serious injury or death. To ensure the safety of you and your equip- ment, read this manual and follow the instructions carefully.
- Page 8 Safety Zone. It is not recommended for your Cable Cam running at high speed to move within 3mtr of Danger Zone. While selecting target distance lock points; it is suggested to consider speed & precau- tious zones. YOUR PROAIM SKY-WALKER PRO CINEMA CABLE CAM SYSTEM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase.
