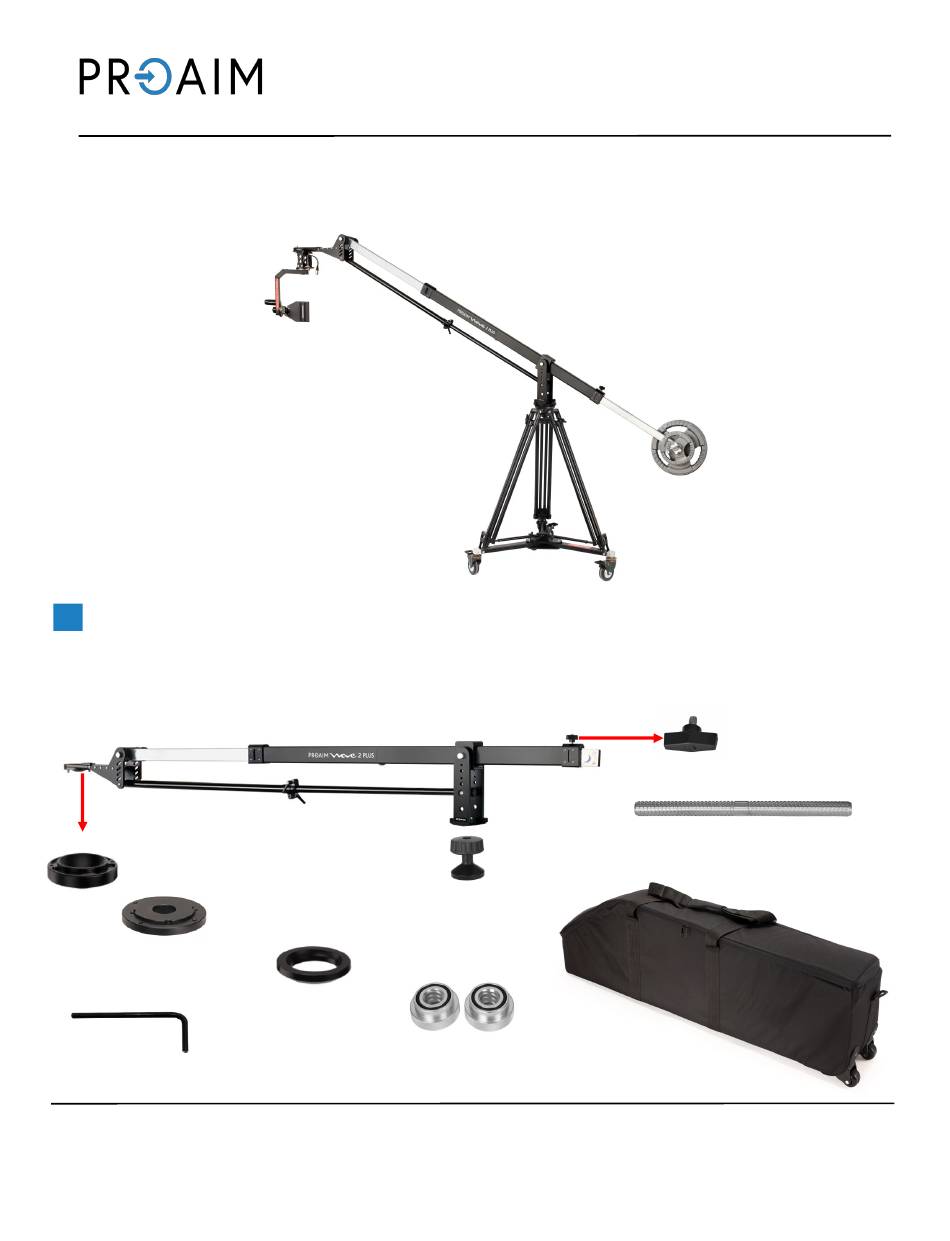

10' Wave-2 Camera Jib Crane, Pan Tilt, Dolly Stand |
Gimbal Compatible
(P-WV-2PL-PP)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Knob
Weight Rod
10' Wave-2 Jib Crane w 100mm Bowl
Locking Knob
Flat Base Plate
75 mm
Storage Bag
Conversion Ring
Weight Closures
1 X 3/16" L-Type Allen Key
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Related Manuals for PROAIM P-WV-2PL-PP
Summary of Contents for PROAIM P-WV-2PL-PP
- Page 1 10' Wave-2 Camera Jib Crane, Pan Tilt, Dolly Stand | Gimbal Compatible (P-WV-2PL-PP) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Sr. Pan-Tilt Head 12V AC Adapter 3 m Cable 15 m XLR Cable 12V Joystick Controller 2 x Fuse Safety cap Universal Adapter Sr. Pan -Tilt Head 1/4” MS Check 2 X L-Type Allen Keys 4 x Wings Nut (Size: 2mm, 3/16”) CST-100 Tripod Stand , Spreader &...
-
Page 3: Table Of Contents
INDEX Sr. No Particulars Page No. CST-100 Tripod Stand Assembly Aluminum Tripod Spreader Portable Dolly Assembly CST-100 Stand Mounting on Dolly Jib Section Assembly Jib mounting on Tripod Stand Weight Rod & Weight Mounting 75mm Conversion Ring setup 10-11 100mm Bowl setup 11-12 Flat Base Plate Setup Sr. -
Page 4: Cst-100 Tripod Stand Assembly
Camera Jib Setup CST-100 Tripod Stand Assembly • Stretch and open the legs of the Tripod Stand. • To adjust the height of the tripod, loosen all three adjustment knobs. • You can adjust the tripod to the desired height and re-tighten the knobs to secure it. NOTE: The Stand has a minimum and maximum height of 33.5"... -
Page 5: Aluminum Tripod Spreader
Aluminum Tripod Spreader • Take out the Spreader and spread it on the floor. • Loosen the Spreader's knob and extend the feet's length. Re-tighten the knob to secure them at the desired length. Feature: Each leg has adjustable knobs that allow for stable adjustment of the tripod's height. -
Page 6: Portable Dolly Assembly
Portable Dolly Assembly • Loosen the side bolt of the Portable Dolly using the 13mm spanner. • Remove the Bolt nut, washer, and Bolt. • Follow the same steps to remove the side Bolt from other sides of the Dolly. •... -
Page 7: Cst-100 Stand Mounting On Dolly
CST-100 Stand Mounting on Dolly • Place the tripod feet on the Dolly and secure them using the elastic clips. • Press the clamps to lock the wheels at a static position. Feature: The Tripod with Spreader provides immense support with an incredible payload of up to 80kg / 176lb, ensuring your setup is highly stable and secure. -
Page 8: Jib Mounting On Tripod Stand
NOTE: Ensure the central fork is properly seated in the tripod bowl, maintaining a perpendicular position. Any off-axis installation can hinder the jib's movement. During installation, the arm will be front-heavy; therefore, use a grip stand or have an assistant hold the camera end to prevent it from falling. Similarly, when mounting the camera, you may need a grip stand or assistance at the rear of the jib to ensure stability and prevent any mishaps. - Page 9 • After adding the weight, insert a weight closure to secure the weight from falling. NOTE: It's crucial to ensure that the opposite end of the jib arm is correctly secured to prevent any sudden upward movement when adding additional weights. •...
-
Page 10: 75Mm Conversion Ring Setup
75mm conversion Ring 100mm Bowl Flat Base Plate 75mm Conversion Ring Setup NOTE: Wave jib has a 100mm bowl attached to its Camera plate. • Attach the 75mm conversion ring to the 100mm bowl. • Mount 75mm Fluid head (Not Included) on the Conversion ring and secure it using the locking knob. -
Page 11: 100Mm Bowl Setup
• Unlock the Red knob and mount the Camera (Not Included) on the fluid head. • Your Camera is now securely mounted on the Fluid head. 100mm Bowl Setup • Mount the 100mm Fluid head (Not Included) on the 100mm bowl and secure it using the locking knob. -
Page 12: Flat Baseplate Setup
• Remove the bowl. Flat Baseplate Setup NOTE: Remove the 100mm Bowl before mounting the Flat baseplate. • Remove the bolts and attach the Flat Baseplate on the bottom of the camera mount. • Insert the bolts. NOTE: Attach the flat base plate to the bottom camera mount underslung... -
Page 13: Joystick Controller Box Mounting
Joystick Controller Box Mounting • Attach Joystick Controller by sliding it on the weight rod and securely tighten it using the provided knob. Balancing Chart Counter Weight 15kg 20kg 25kg Counter Balance 30kg 40kg 50kg Measured Length 305cm 259cm 208cm Length from U Fork to 201cm 172cm... -
Page 14: Final Setup
YOUR PROAIM 10 WAVE-2 JIB CRANE, PANTILT, DOLLY STAND FOR CAMERA ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer a one-year warranty for our products from the date of purchase. Within this period of time, we will repair it without charge for labor or parts.
