I/O Panel Connectors

This section describes the input/output panel connectors for each configuration of the
Workstation 625/655.
• I/O Panel Connectors
I/O Panel Connectors
This section depicts the input/output panel connectors.
•

IDN RS422/232

• Powered RJ45
• Series 2 Cash Drawer
• Customer Display
IDN RS422/232
You can configure the IDN connector to run in RS422 mode or RS232 mode as shown
in the following table.
Table 11-1
RS422
Figure 11-1

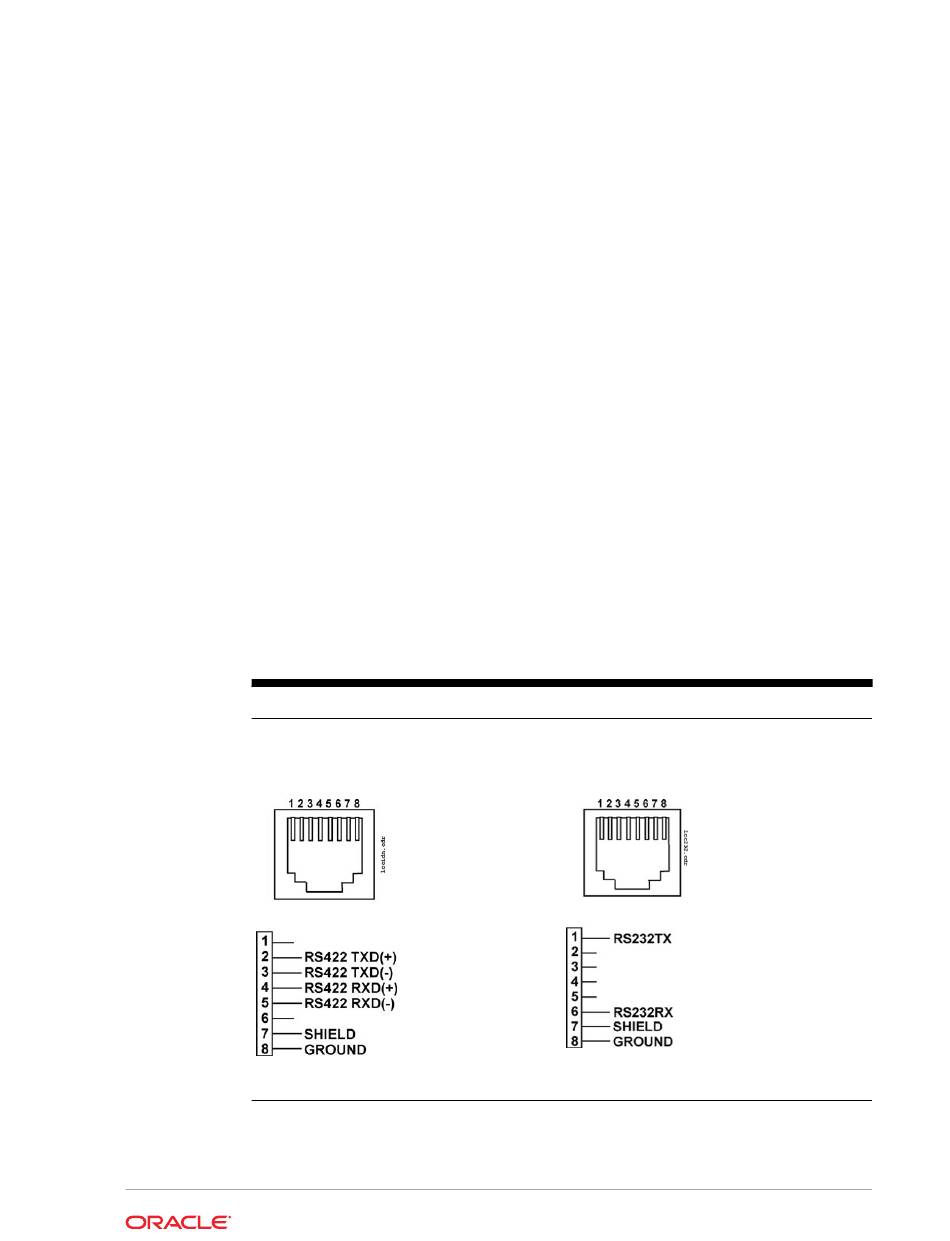

IDN Pin Reference
RS422 Mode
RS232
Figure 11-2 RS232 Mode
11-1
