11
I/O Panel Connectors and System
Diagrams
This section describes the input/output panel connectors and the system block
diagrams for each configuration of the Workstation 6 Series.
•
I/O Panel Connectors
•
System Block Diagrams
I/O Panel Connectors
This section depicts the input/output panel connectors.
•
IDN RS422/232
•
Powered RJ45
•
Series 2 Cash Drawer
•
Customer Display
IDN RS422/232

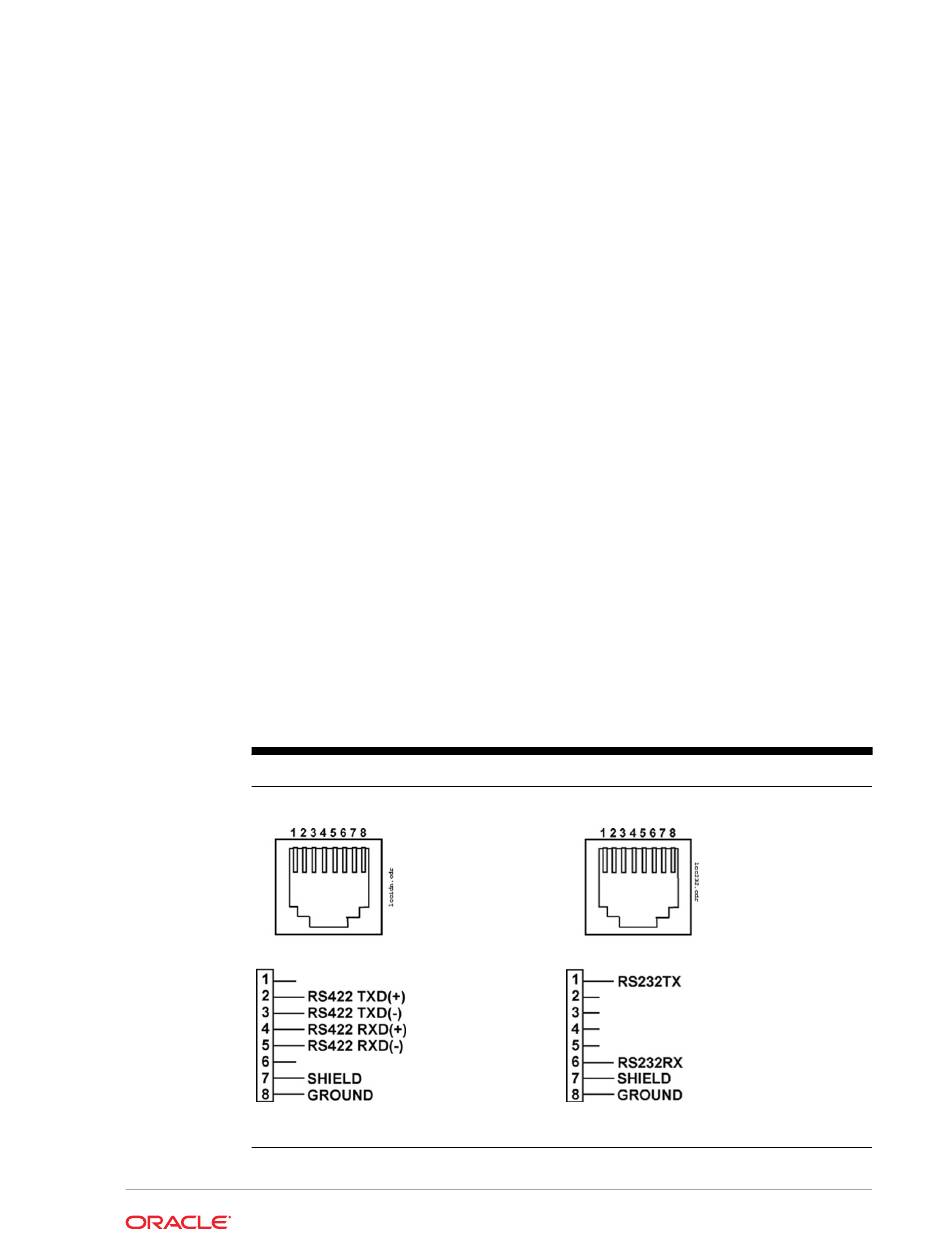

You can configure the IDN connector to run in RS422 mode or RS232 mode as shown
in the following table.
Table 11-1
RS422
IDN Pin Reference
RS232
11-1
