Powered Rj45; Series 2 Cash Drawer - Oracle MICROS 6 Series Setup Manual

Powered RJ45

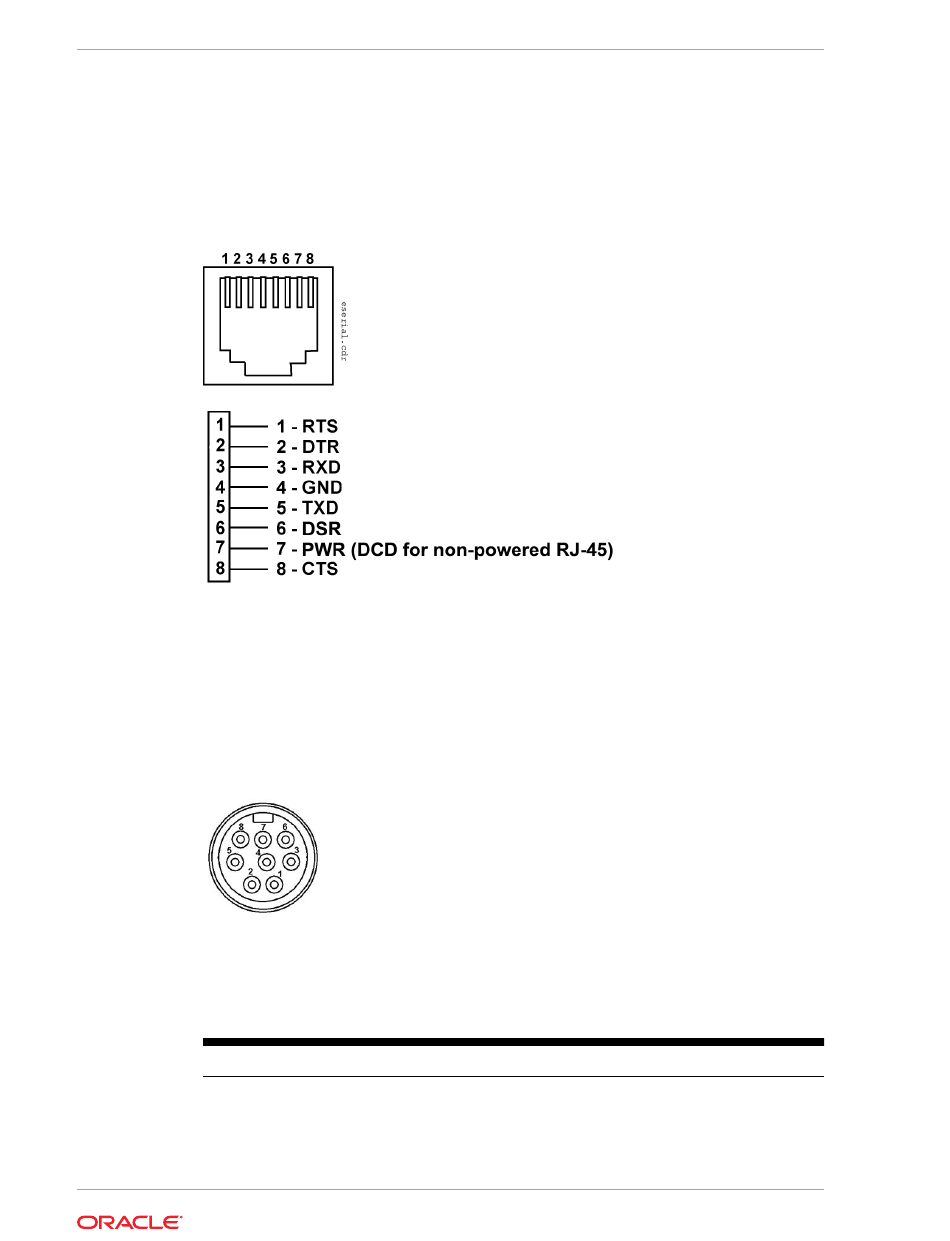

The powered RJ45 connector contains the following pins.
Figure 11-3

Series 2 Cash Drawer

The Series 2 Cash Drawer connector is an 8-pin Mini-DIN. You can convert this
connector into a traditional 4-pin DIN connector by using a P/N 300290-020-PT cable.
Figure 11-4
The following table describes the signal name and function of each pin.
Table 11-2
Pin #
1
2
3, 7, 8
Powered RJ45 Pin Reference
Series 2 Cash Drawer Pin Reference
Series 2 Cash Drawer Pin and Signal Reference
Signal Name
VCC12 or VCC24
CD_OPEN
Ground
I/O Panel Connectors
Description
Cash drawer power
Open drawer
Signal grounds
Chapter 11
11-2
