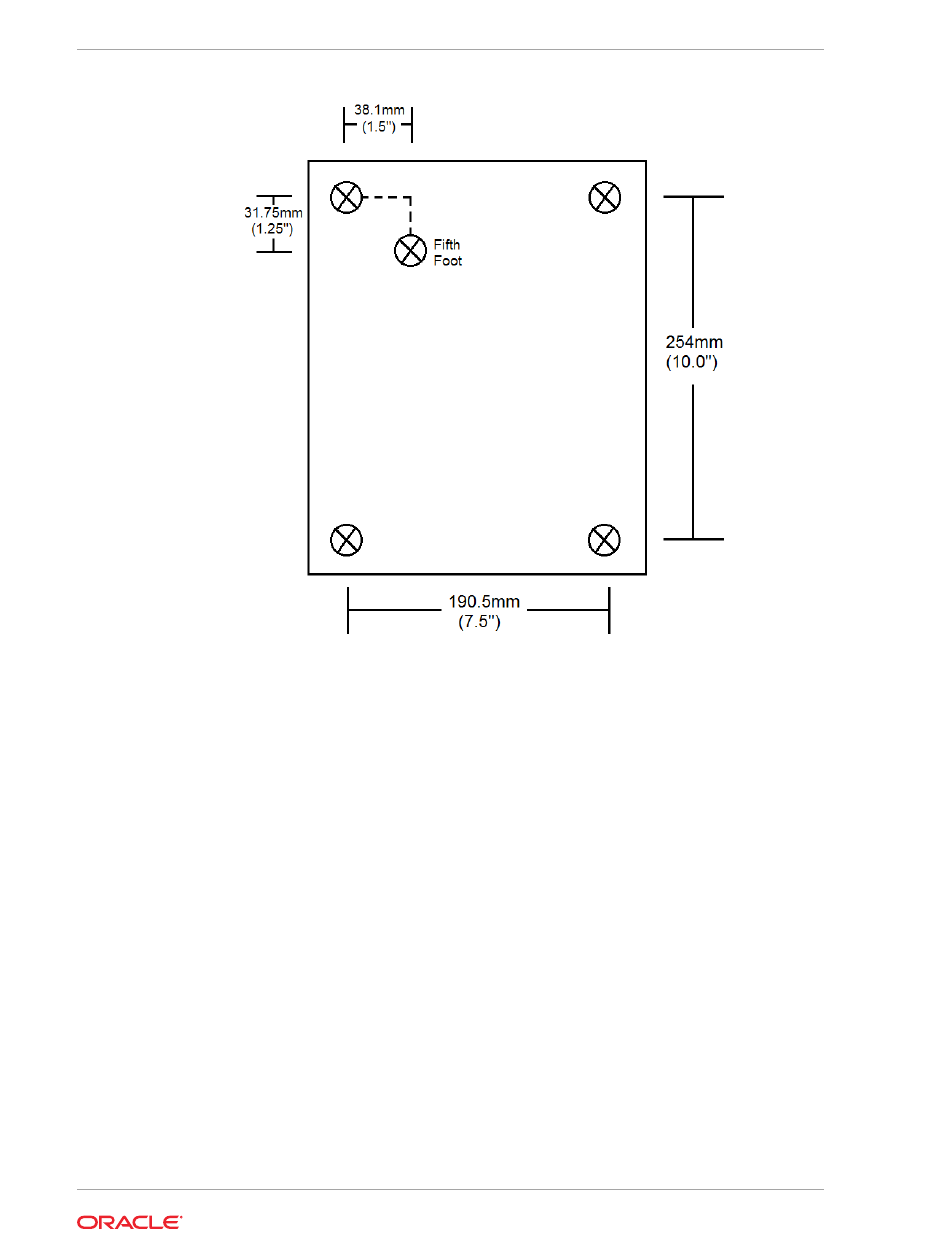

Mark the position of the hole for the fifth foot on the counter, and then use a drill to
4.
create the hole.
Place the Adjustable Stand on the counter and align the hole for the fifth foot to its
5.
matching hole on the counter.
Secure the Adjustable Stand to the counter using a mounting screw. The mounting
6.
screw is not provided. Ensure that you are using the correct screw that meets the
needs of the installation. The screw thread is M4 and the length is a minimum of
one inch plus the thickness of the counter.
Attaching the Epson PS-180 Power Supply to the Adjustable
Stand
Place the Workstation 6 Series Adjustable Stand upside down on a flat surface.
1.
Note the location of the Epson PS-180 power supply mounting bracket.

Attaching the Epson PS-180 Power Supply to the Adjustable Stand
