Removing the Workstation from the Adjustable Stand

Disconnect all cables from the I/O ports.
1.
Tilt back the workstation, and then
2.

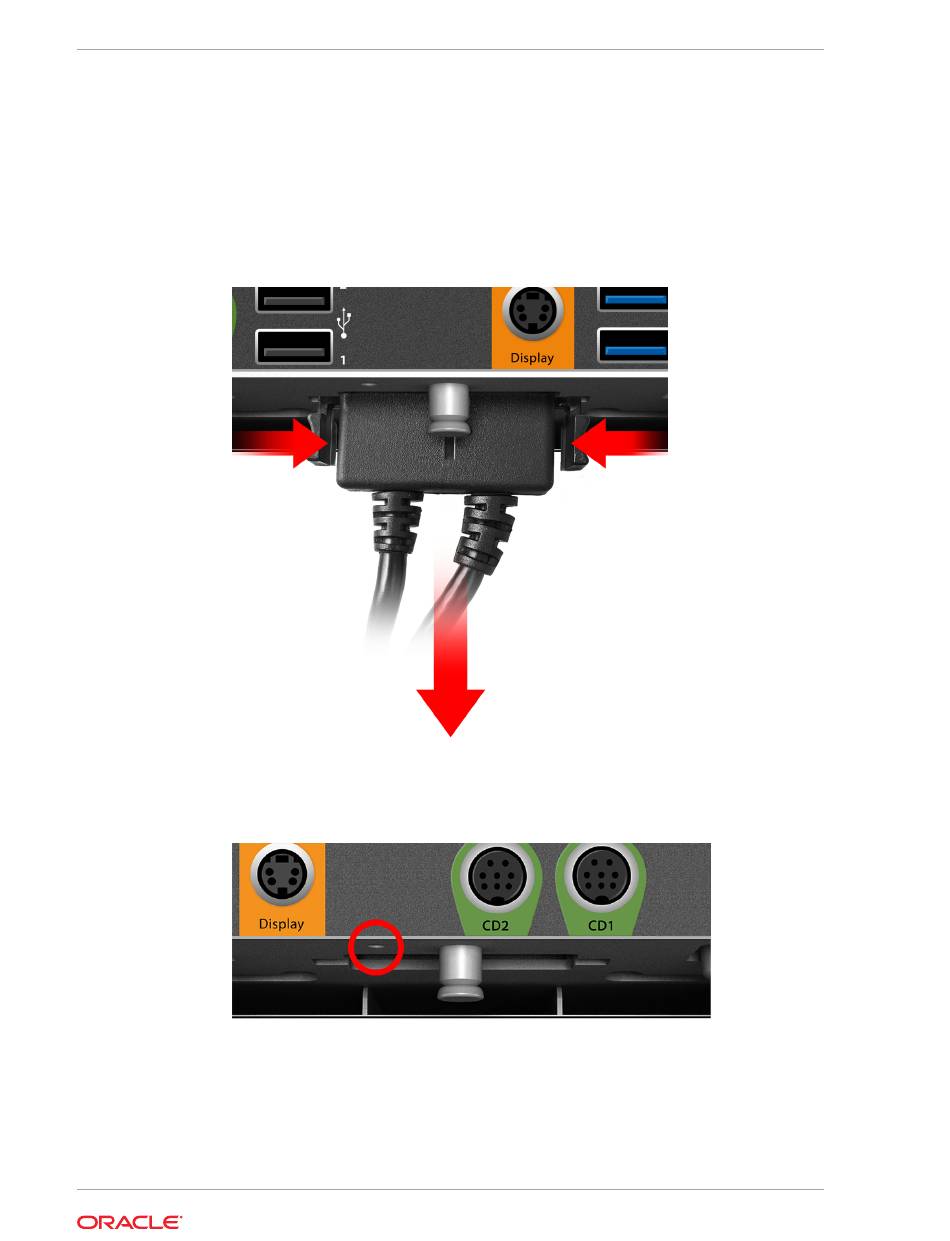

Squeeze the tabs on each side of the DC power cable, and then pull the connector
3.
out of the workstation power port.
If you secured the workstation to the Adjustable Stand using a security screw,
4.
remove the security screw.
Pull down the quick release pin, and then gently push the workstation.
5.
Removing the Workstation from the Adjustable Stand
Chapter 12
12-2
