Mounting the Battery Enclosure on the Flexible Stand

Mounting the Enclosure on the Flexible Stand

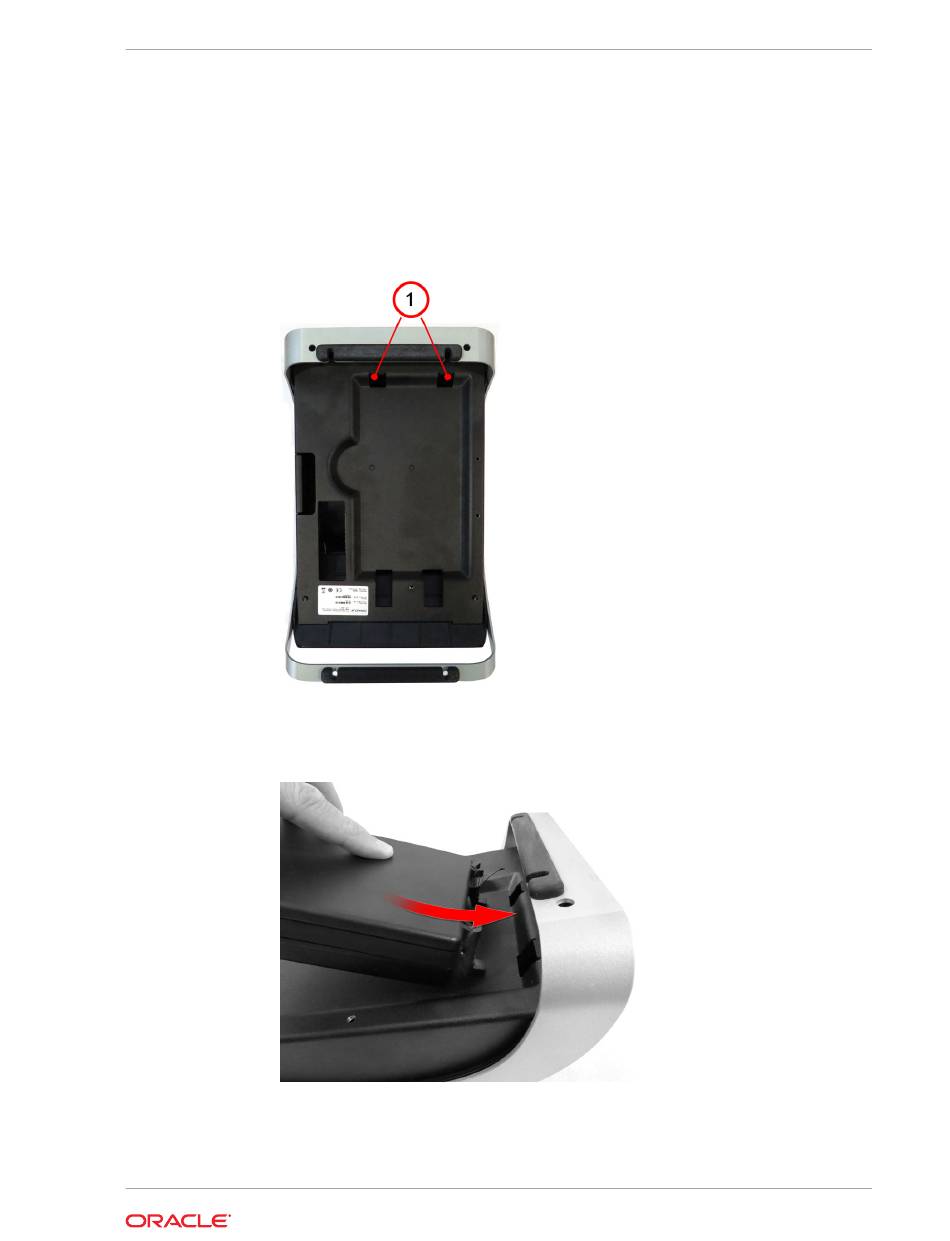

Place the stand upside down on a flat surface. Note the location of the two
1.
enclosure mounting slots (1).
Place the enclosure into the recessed compartment, and then slide up to join the
2.
enclosure mounting tabs with the stand.
Tighten the stand thumbscrew (2) to secure the enclosure to the stand.
3.
Mounting the Battery Enclosure on the Flexible Stand
Chapter 4
4-13
