Figure 4-3

Securing the Workstation 625/655 to a VESA Mount

The Workstation 625/655 supports mounting the workstation display to a VESA mount.
The workstation display is engineered in accordance with the Flat Display Mounting
Interface (FDMI) Standard, otherwise known as the Mounting Interface Standard
(MIS), defined by VESA. The VESA standard defines the dimensions of a display's
four-hole attachment panel and dictates the placement of the hole pattern on the back
of the workstation display.
When choosing a mounting bracket, look for VESA-compliant brackets.
During installation, follow the directions provided with the mounting bracket. When
mounting the workstation display to the bracket, the External Power supply for Oracle
MICROS Workstation 6 Series (Part Number 7601142) is required and includes the
following:
• External Power Supply for Workstation 6 Series
• 4 Stainless Steel Spacers (8.15mm)
• 4 Stainless Steel Washers
The stainless steel spacers allow for clearance of the external power supply. When
mounting the workstation display to the bracket, insert the washers and spacers
between the bracket and the workstation display, and then secure using the bracket's
mounting screws.

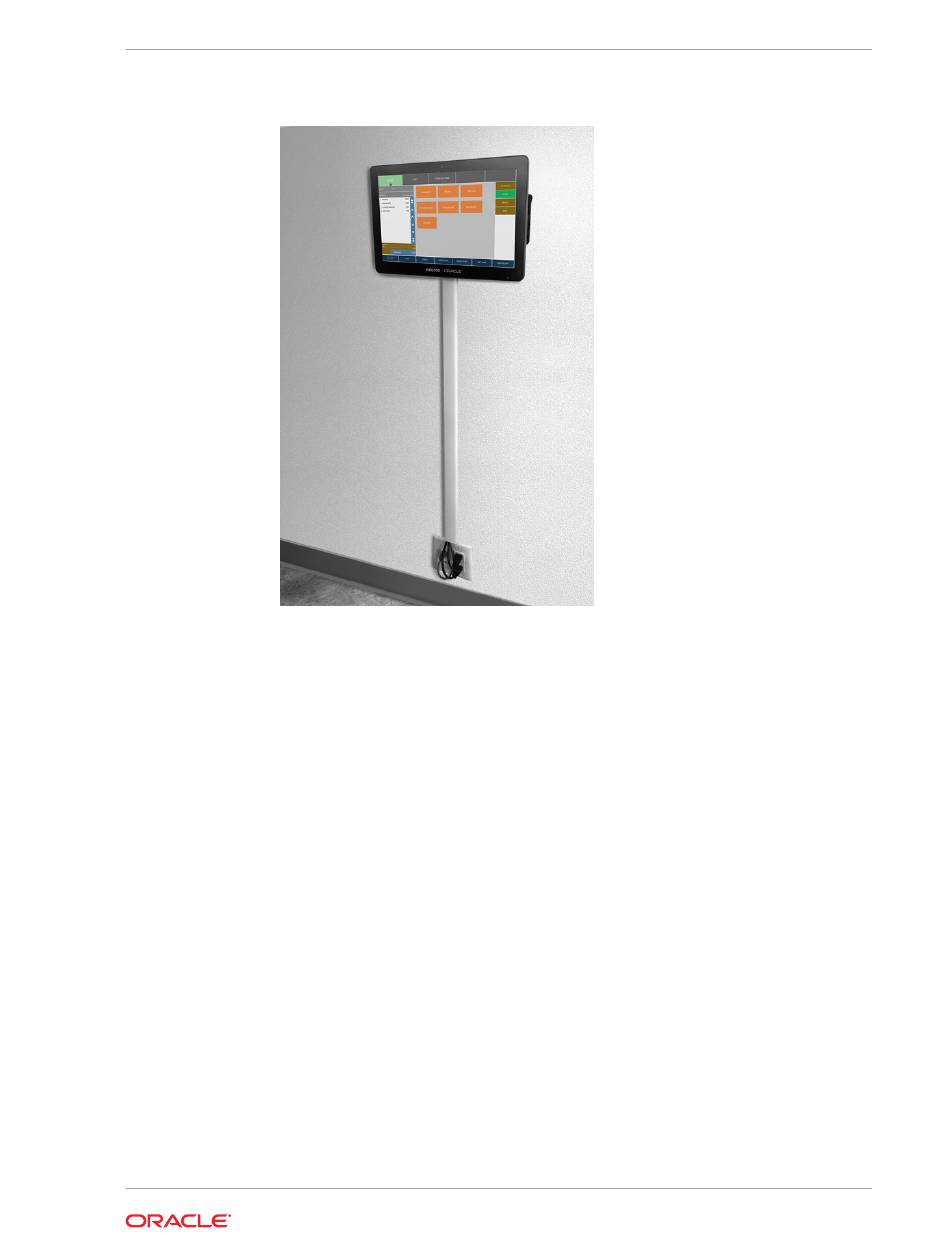

Example Wall-Mounted Workstation (Recessed/In-Wall Cage)
Securing the Workstation 625/655 to a VESA Mount
