Installing the 10-Inch Customer Display with High Mount on the Workstation 6 Series Adjustable Stand

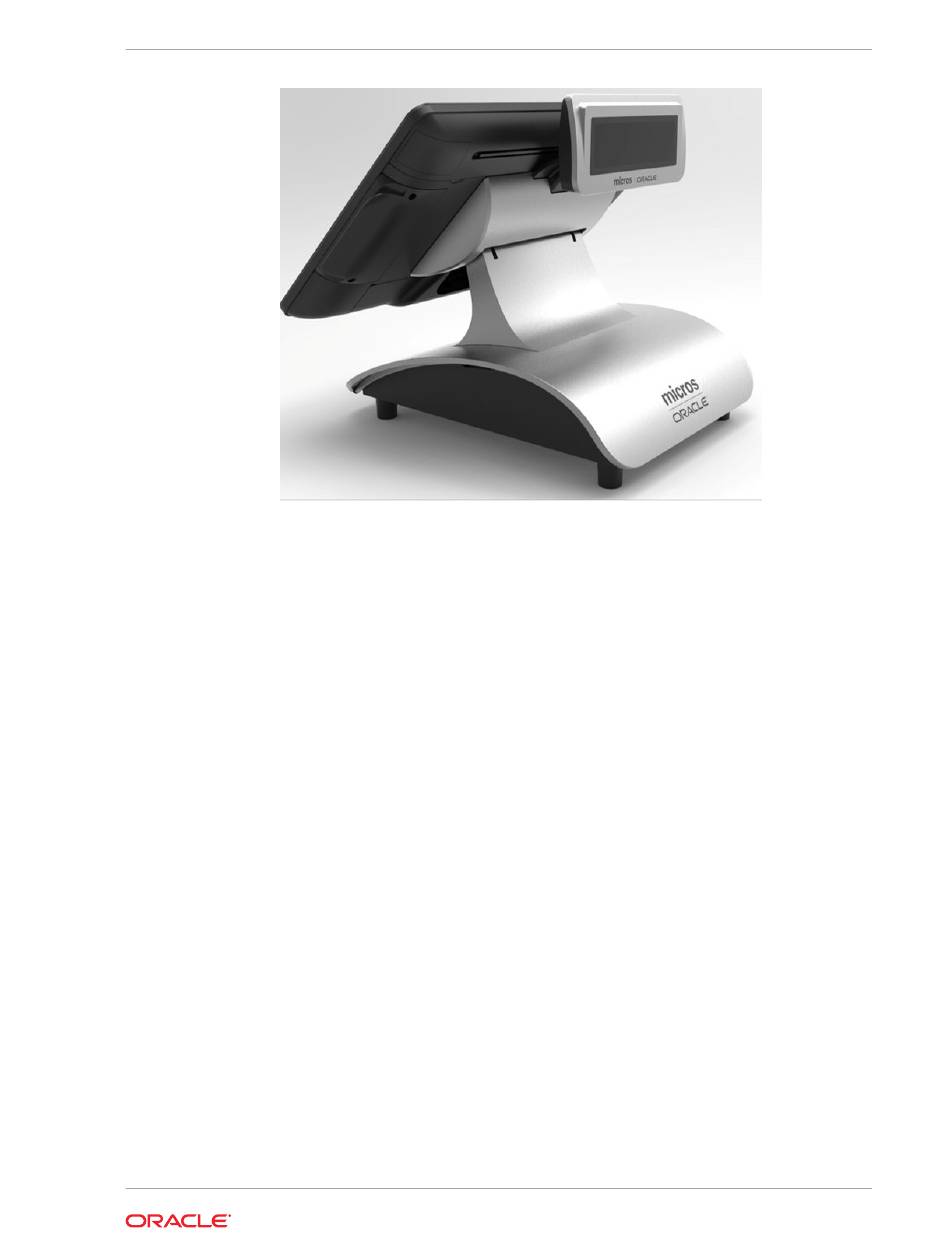

Installing the 10-Inch Customer Display with High Mount on
the Workstation 6 Series Adjustable Stand
To install the 10-Inch Customer Display with High Mount on the Workstation 6 Series
Adjustable Stand:
Place the Adjustable Stand upright on a flat surface, and then tilt the mounting
1.
plate upwards to a vertical position.
Remove the High-Mount slot cover.
2.
Slide the 10-Inch Customer Display power cord through the High-Mount slot and
3.
down through the mounting plate.
Insert the display and bracket assembly into the High-Mount slot. The bracket
4.
should be firmly locked into place.
To adjust or remove, press the release button on the bottom of the bracket to
5.
unlock.
Secure the display and bracket assembly to the Adjustable Stand using the
6.
provided security screws (2) and a No. 2 (1/4") Phillips screwdriver.
Connect the 10-Inch Customer Display with High Mount power cord and HDMI
7.
cable to the Workstation 6 Series I/O panel.

Installing the 10-Inch Customer Display with Pole Mount

To attach the 10-Inch Customer Display with Pole Mount to a cash drawer or other
1.
surface without a cable routing hole:
a.
b.
Tighten the pole base plate captive screws, if required.
Use pliers or similar tool to break off a cable routing tab located along the rear
edge of the pole base plate.
Chapter 4
4-19
