Oracle MICROS 6 Series Setup Manual page 73

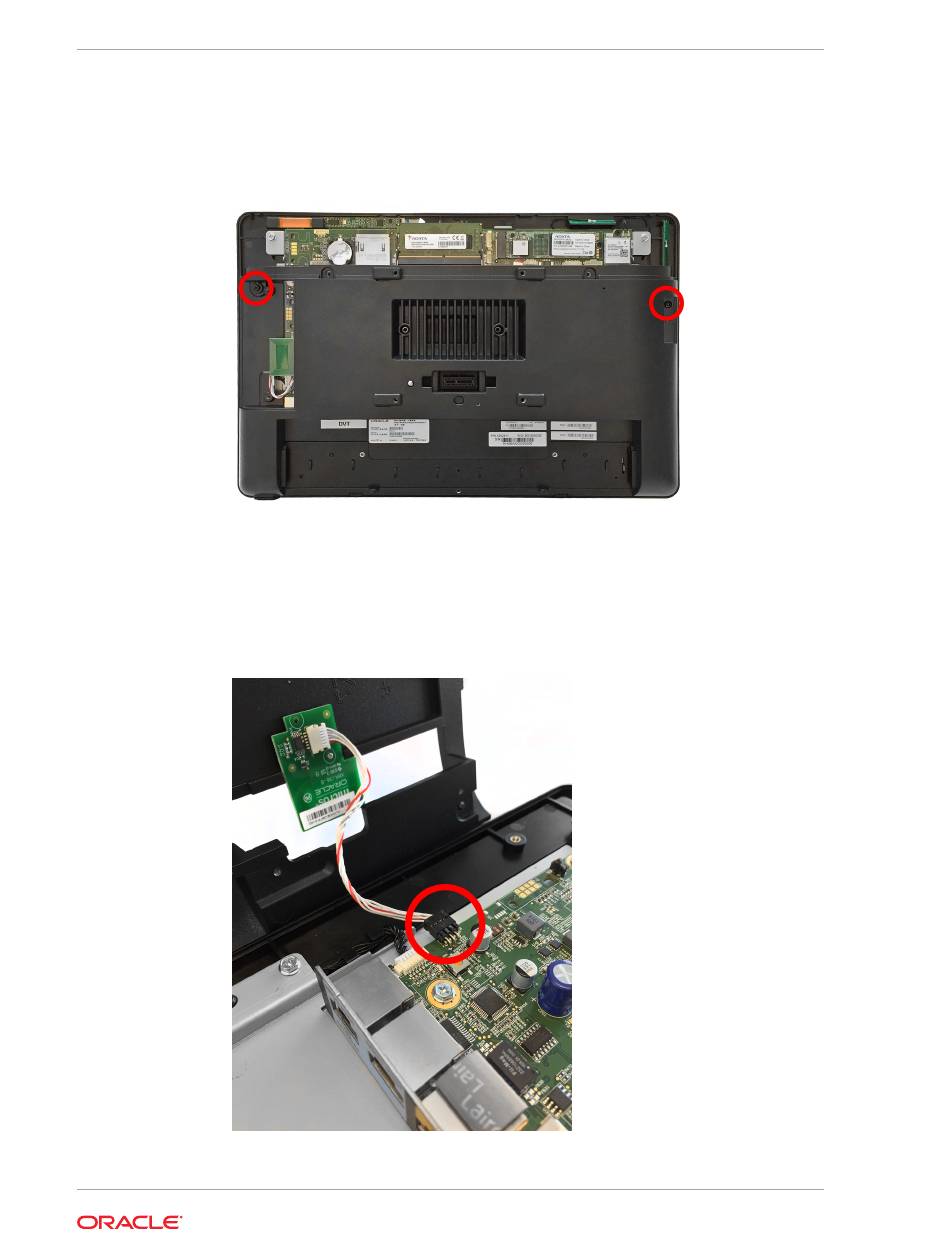

Lift the top cover off of the workstation, and then remove the expansion slot cover
4.
and the magnetic stripe reader.
Remove the screw in the magnetic stripe reader compartment, and then remove
5.
the screw in the expansion slot.
Carefully lift the rear housing away from the body of the workstation to avoid
6.
damaging the RFID tag cable.
Disconnect the RFID tag 8-pin modular cable. The RFID tag is factory-
7.
programmed with information specific to the workstation in which it is installed. The
RFID tag is bonded to the workstation casework; do not attempt to remove it.
Chapter 12
Disassembling the Workstation
12-4
