Installing the 10-Inch Customer Display with High Mount on the Workstation 6 Series Adjustable Stand

Slide the Customer Display power cord through the High-Mount slot and down
3.
through the mounting plate.
Insert the display and bracket assembly into the High-Mount slot. The bracket
4.
should be firmly locked into place.
To adjust or remove, press the release button on the bottom of the bracket to
5.
unlock.
Secure the display and bracket assembly to the Adjustable Stand using the
6.
provided security screws (2) and a No. 2 (1/4") Phillips screwdriver.
Insert the Customer Display power cord into the Customer Display slot on the I/O
7.
Panel.

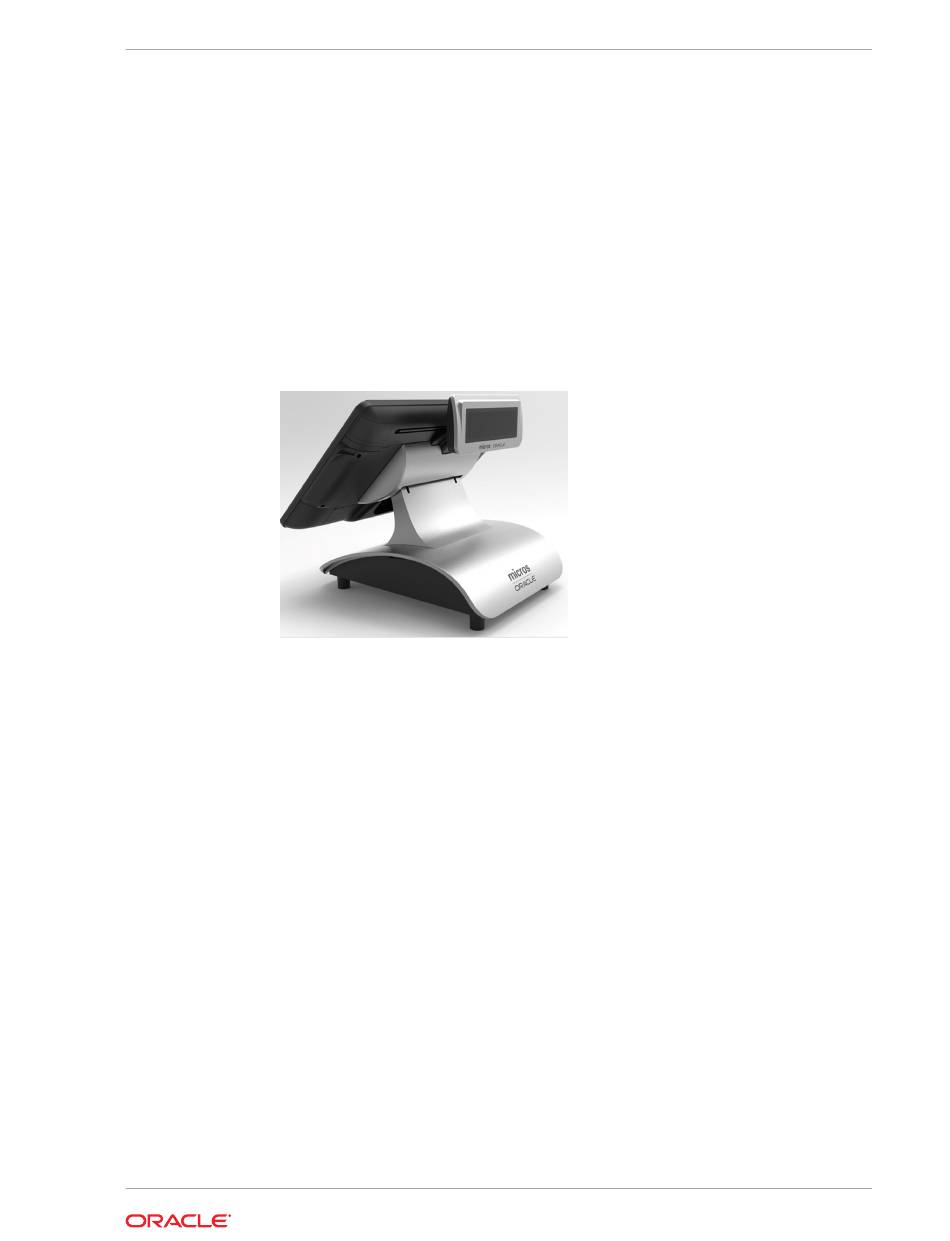

Workstation 6 with High-Mount Customer Display on the Adjustable Stand
Installing the 10-Inch Customer Display with High Mount on
the Workstation 6 Series Adjustable Stand
To install the 10-Inch Customer Display with High Mount on the Workstation 6 Series
Adjustable Stand:
Place the Adjustable Stand upright on a flat surface, and then tilt the mounting
1.
plate upwards to a vertical position.
Remove the High-Mount slot cover.
2.
Slide the 10-Inch Customer Display power cord through the High-Mount slot and
3.
down through the mounting plate.
Insert the display and bracket assembly into the High-Mount slot. The bracket
4.
should be firmly locked into place.
To adjust or remove, press the release button on the bottom of the bracket to
5.
unlock.
Secure the display and bracket assembly to the Adjustable Stand using the
6.
provided security screws (2) and a No. 2 (1/4") Phillips screwdriver.
Connect the 10-Inch Customer Display with High Mount power cord and High
7.
Definition 2nd Display Output Connector cable to the Workstation 6 Series I/O
panel.
