3 Components and Power Supply
Teldat 4Ge User Manual for further information on how to access the device and its configuration.
To find out what type of license you have, execute a ping to IP address 192.168.1.1. The device, previously con-
figured with the default configuration and correctly connected through an Ethernet cable, will respond to the ping in-
dicating whether you are dealing with a router or a 4Ge.
Note
Some devices leave the factory with customized settings. As a result of this personalization, the device
may have a different default configuration from the one shown above.

3.5 Connecting data

The Teldat 4Ge has the following data connections.

3.5.1 ETHERNET Connection

The Teldat 4Ge incorporates an Ethernet 10/100/1000 BaseT Switch port with automatic MDI/MDIX.

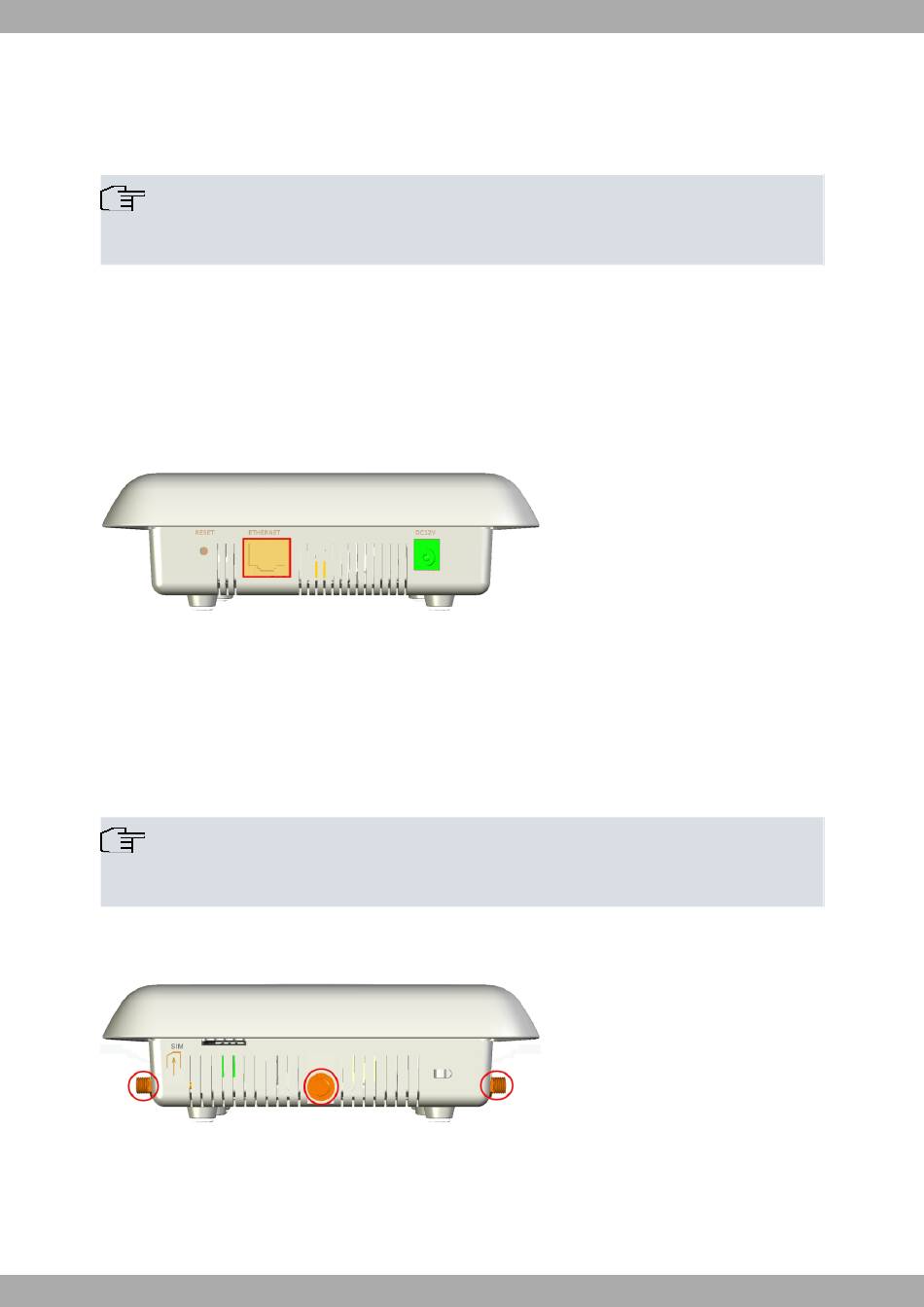

Ethernet Port
Fig. 12:

3.5.2 Connecting the WWAN Antenna

The Teldat 4Ge has three connectors for WWAN antennas. To assemble and disassemble the antennas, simply
screw them into the connectors labeled Cell (found in the router's front panel).
Installing these antennas in the Teldat 4Ge is essential to improve the quality of the signal received and transmitted
by the cellular model.
Note
To achieve good quality performance, the Teldat 4Ge device should always have the WWAN antennas
installed.
Some cellular telephony technologies use the antenna diversity technique to improve the quality of the signal re-
ceived (HSUPA, CDMA EV-DO, etc.). Consequently, the Teldat 4Ge incorporates various WWAN connectors.
WWAN connectors seen from the front panel
Fig. 13:
When the antennas are not directly connected to the router but installed through extension cords, the minimum dis-
tance between the two of them must be 7 cm. The maximum recommended distance between the two is 25 cm.
To achieve optimum performance, the radio frequency accessories installed (antennas and cables) should be those
recommended by Teldat.
