By closing the switch SW at time t
But at the port pin Pxy on point (B) the following voltage can be measured:
By closing the switch SW the circuit becomes a parallel oscillator with the wire-inductivity LX, the debouncing capacity
C and the damping RPD of the pull-down resistor (Assume the power supply to be ideal, i.e. it has no internal
X
resistance):
www.cypress.com
the following voltage can be measured at point (A):
0

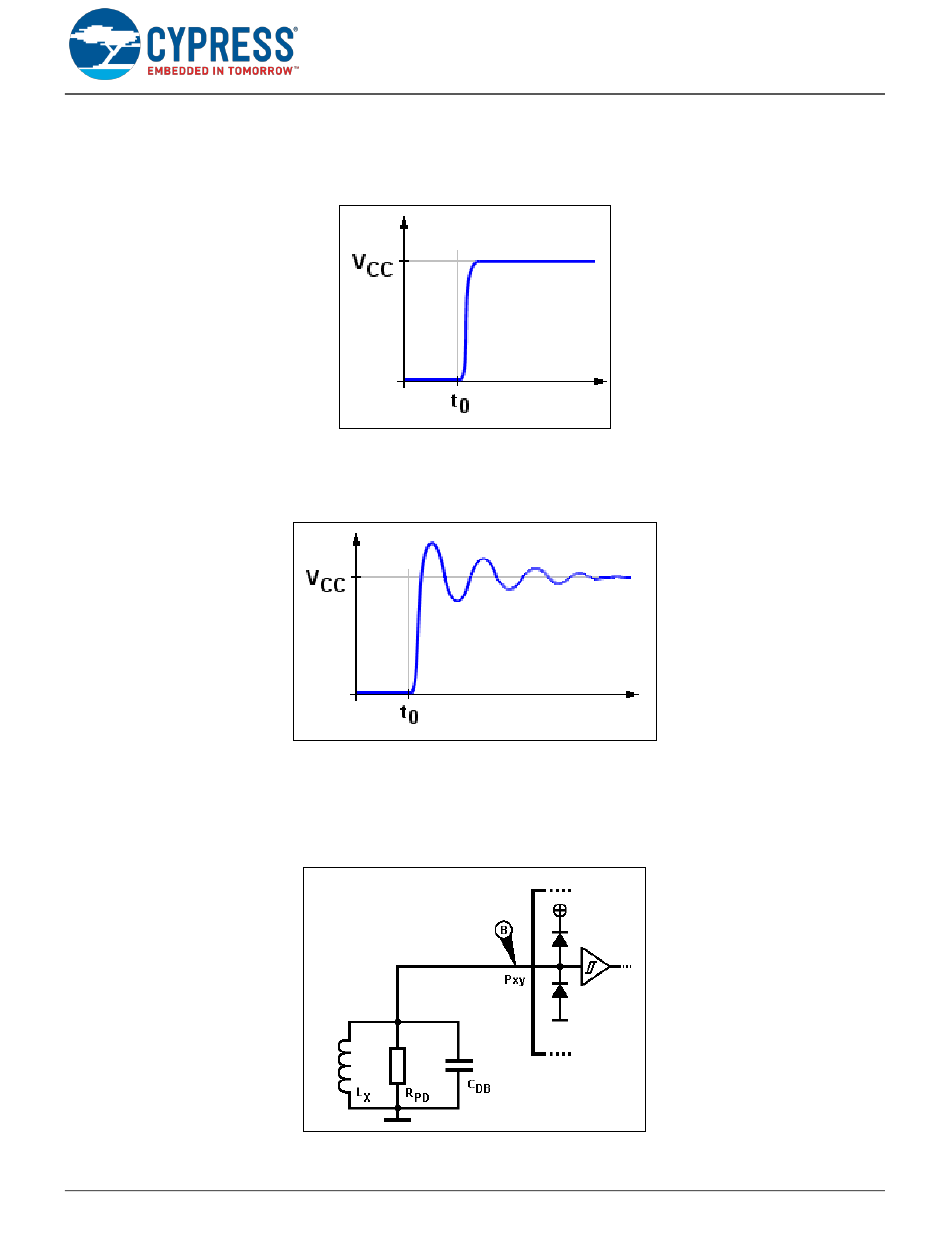

Figure 22. Signal rise on switch closing (Point A)
Figure 23. Signal rise on switch closing (Point B)
Figure 24. Equivalent circuit on switch closed
