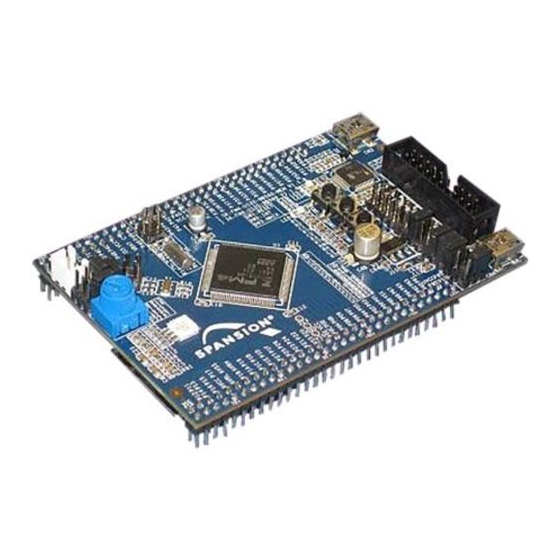

Starter Kit User Guide
FM4-U120-9B560
FM4-U120-9B560-MEM
Hardware V1.1 / Documentation V1.8
Document Number: 002-09878 Rev. *B

Advertisement

loading
Need help?

Need help?

Do you have a question about the FM4-U120-9B560 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cypress FM4-U120-9B560

  • Page 1 Starter Kit User Guide FM4-U120-9B560 FM4-U120-9B560-MEM Hardware V1.1 / Documentation V1.8 Document Number: 002-09878 Rev. *B...
  • Page 2 (“Unintended Uses”). A critical component is any component of a device or system whose failure to perform can be reasonably expected to cause the failure of the device or system, or to affect its safety or effectiveness. Cypress is not liable, in whole or in part, and you shall and hereby do release Cypress from any claim, damage, or other liability arising from or related to all Unintended Uses of Cypress products.
  • Page 3 Please ensure you have copied the complete software package related to this starter kit to use and run the links and examples given on the next pages. ▪ Please contact the Cypress Support for any question. SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 4 Peripheral Manual (Timer Part) ▪  Peripheral Manual (Analog Part) KEIL µVision  Peripheral Manual (Communication Part) ▪ Contacts More  Flash Programming Manual Errata Please visit www.cypress.com to find latest releases of the above mentioned documents. SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 5 Features of the Microcontroller ▪ The FM4-U120-9B560 and FM4-U120-9B560-MEM ® ® are based on the Cypress Arm Cortex -M4 device MB9BF568R ▪ The MB9B560R Series includes the following features: • Up to 1 MByte Flash Memory and 32 KByte Work Flash Memory •...
  • Page 6 Features of the Board ▪ The FM4-U120-9B560(-MEM) is available in two versions: Feature FM4-U120-9B560 FM4-U120-9B560-MEM External Power Supply USB, DAP, JTAG or from FM4-U-PERIPHERAL On-board Voltage 3.3 V or 5 V 3.3 V User-LEDs, Reset-LED 3x User-LEDs (R,G,B) + Reset...
  • Page 7 Contents FM4-U120-9B560 ▪ The FM4-U120-9B560(-MEM) contents • The FM4-U120-9B560 or FM4-U120-9B560-MEM evaluation board • One USB mini cable • 1-page flyer Additional information FM4-U120-9B560(-MEM) USB cable SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 8 Please Check Jumper Setting Note: FM4-U120-9B560 supports 5 V and 3.3 V operation Please set J9 (USB) instead of J7 (CMSIS-DAP) FM4-U120-9B560-MEM supports only 3.3 V operation Please set J19 and J20:1-2 (SIN0/SOT0) USBF USBF SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 9 Test it by Terminal using USB ▪ The microcontroller on the FM4-U120-9B560(-MEM) is already preprogrammed with a test application (<drive:>\sw-examples\testsoftware) • Install the USB driver first <drive:>\drivers\driverinstaller.exe • Connect the starter kit to CN4 (USB) with your PC ✓ Ensure jumper J9 (USB) is set for correct power supply ✓...
  • Page 10 Test it by a GUI ▪ The microcontroller on the FM4-U120-9B560(-MEM) is already preprogrammed with a test application (<drive:>\sw-examples\testsoftware) • Install the USB driver first <drive:>\drivers\driverinstaller.exe • Connect the starter kit to CN4 (USB) with your PC • Open the PC software <drive:>\sw-examples\testsoftware\SK-FM4-U120-9B560_demo.exe...
  • Page 11 Test it ▪ You finished successfully the first test. ▪ Next section covers: • The onboard features • How to program the Flash ✓ Serial ROM Boot loader USB Direct UART0 ✓ On-board CMSIS-DAP ✓ JTAG with optional emulator • How to start with IAR-Embedded-Workbench and KEIL µVision SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 12 Hardware SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 13 The Hardware (Top Side) – Jumper Overview CMSIS- Expansion Header Pin 1-60 Virt. COM VBat 3V/5V USB- Device- Expansion Header Pin 61-120 Port SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 14 The Hardware (Top Side) – Jumper Function Overview CMSIS- Expansion Header Pin 1-60 Virt. COM VBat MD1/LED Variable Resistor AN18 JTAG JTAG 3V/5V USBF USBF USB- Device- Expansion Header Pin 61-120 Prog/Run Port SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 15 The Hardware (Bottom Side) 2.54mm x 30 Expansion Header Pin 1-60 SD-Card interface (only FM4-U120-9B560) Expansion Header Pin 61-120 2.54mm x 29 SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 16 The Hardware – Pin Overview 1 - 20 Microcontroller-Function FM4-U120-9B560 FM4-U120-9B560-MEM VCC_MCU 3V3 or 5V0 VCC_MCU 3V3 or 5V0 P50/CTS4_0/AIN0_2/RTO10_0/INT00_0/MADATA00_0 SDRAM, NAND FLASH P51/RTS4_0/BIN0_2/RTO11_0/INT01_0/MADATA01_0 SDRAM, NAND FLASH P52/SCK4_0/ZIN0_2/RTO12_0/MADATA02_0 SDRAM, NAND FLASH P53/TIOA1_2/SOT4_0/RTO13_0/MADATA03_0 SDRAM, NAND FLASH P54/TIOB1_2/SIN4_0/RTO14_0/INT02_0/MADATA04_0 SDRAM, NAND FLASH P55/ADTG_1/SIN6_0/RTO15_0/INT07_2/MADATA05_0...
  • Page 17 The Hardware – Pin Overview 21 - 40 Microcontroller-Function FM4-U120-9B560 FM4-U120-9B560-MEM P37/SOT5_2/IC01_0/INT05_2/MNREX_0 NAND FLASH P38/SCK5_2/IC00_0/INT06_2 LED_G LED_G P39/ADTG_2/DTTI0X_0/RTCCO_2/SUBOUT_2/MSDCLK_0 SDRAM P3A/TIOA0_1/AIN0_0/RTO00_0/MSDCKE_0 SDRAM P3B/TIOA1_1/BIN0_0/RTO01_0/MRASX_0 SDRAM P3C/TIOA2_1/ZIN0_0/RTO02_0/MCASX_0 SDRAM P3D/TIOA3_1/RTO03_0/MAD00_0 SDRAM P3E/TIOA4_1/RTO04_0/MAD01_0 SDRAM P3F/TIOA5_1/RTO05_0/MAD02_0 SDRAM VCC_MCU 3V3 or 5V0 VCC_MCU 3V3 or 5V0 P40/TIOA0_0/RTO10_1/INT12_1...
  • Page 18 The Hardware – Pin Overview 41 - 60 Microcontroller-Function FM4-U120-9B560 FM4-U120-9B560-MEM P48/VREGCTL P49/VWAKEUP Pull-Down resistor Pull-Down resistor VBAT Battery (CN1) Battery (CN1) Capacitor 4u7 Capacitor 4u7 VCC_MCU 3V3 or 5V0 VCC_MCU 3V3 or 5V0 P4B/TIOB1_0/SCS7_1/MAD03_0 SDRAM P4C/TIOB2_0/SCK7_1/AIN1_2/MAD04_0 SDRAM P4D/TIOB3_0/SOT7_1/BIN1_2/INT13_2/MAD05_0 SDRAM...
  • Page 19 The Hardware – Pin Overview 61 - 80 Microcontroller-Function FM4-U120-9B560 FM4-U120-9B560-MEM VCC_MCU 3V3 or 5V0 VCC_MCU 3V3 or 5V0 P10/AN00/RX1_2/SIN1_1/FRCK0_2/INT02_1/MAD07_0 SDRAM P11/AN01/TX1_2/SOT1_1/IC00_2/MAD08_0 SDRAM P12/AN02/SCK1_1/IC01_2/RTCCO_1/SUBOUT_1/MAD09_0 SDRAM P13/AN03/SIN0_1/IC02_2/INT03_1/MAD10_0 SDRAM P14/AN04/SOT0_1/IC03_2/MAD11_0 SDRAM P15/AN05/SCK0_1/MAD12_0 P16/AN06/SIN2_2/INT14_1/MAD13_0 P17/AN07/SOT2_2/WKUP3/MAD14_0 SDRAM AVCC VCC_MCU VCC_MCU AVSS AVRL AVRH VCC_MCU...
  • Page 20 The Hardware – Pin Overview 81 - 100 Microcontroller-Function FM4-U120-9B560 FM4-U120-9B560-MEM P1F/ADTG_4/TIOB6_2/RTO05_1 P27/TIOA6_2/RTO04_1/INT02_2 LED_R LED_R P26/TIOB5_0/SCK2_1/RTO03_1 P25/TX1_0/TIOA5_0/SOT2_1/RTO02_1 P24/RX1_0/SIN2_1/RTO01_1/INT01_2 P23/AN15/TIOA7_1/SCK0_0/RTO00_1/MAD22_0 P22/CROUT_0/AN16/TIOB7_1/SOT0_0/ZIN1_1 JTAG JTAG P21/AN17/SIN0_0/BIN1_1/INT06_1/MAD23_0 JTAG JTAG P20/AN18/AIN1_1/INT05_0/MAD24_0 Potentiometer R11 Potentiometer R11 VCC_MCU 3V3 or 5V0 VCC_MCU 3V3 or 5V0 P0E/TIOB5_2/SCS6_1/IC13_0/S_CLK_0/MDQM1_0 SD-Card...
  • Page 21 The Hardware – Pin Overview 101 - 120 Microcontroller-Function FM4-U120-9B560 FM4-U120-9B560-MEM P05/AN23/ADTG_0/TRACECLK/SIN7_0/INT01_1/MCSX2_0 P04/TDO/SWO JTAG JTAG P03/TMS/SWDIO JTAG JTAG P02/TDI/MCSX6_0 JTAG JTAG P01/TCK/SWCLK JTAG JTAG P00/TRSTX/MCSX7_0 JTAG JTAG P68/TIOB7_2/SCK3_0/INT00_2 Button INT Button INT P67/TIOA7_2/SOT3_0 P66/ADTG_8/SIN3_0/INT11_2 P65/TIOB7_0/SCK5_1 P64/TIOA7_0/SOT5_1/INT10_2 P63/CROUT_1/RX0_2/SIN5_1/INT03_0/S_CD_0/MWEX_0 SD-Card P62/ADTG_3/TX0_2/SIN5_0/INT04_1/S_WP_0/MOEX_0 SD-Card...
  • Page 22 J1 (2 pin) (Do not change!) Closed: 48MHz Open: 3V3 J2 (2 pin) VBUS detection of CMSIS-DAP Closed: 5V (only for FM4-U120-9B560) Open: CMSIS-DAP normal operation J3 (2 pin) CMSIS-DAP reset Closed: CMSIS-DAP reset assert Open: Run-Mode J4 (2 pin)
  • Page 23 See also J10 1-2: MCU is powered from 3V3 MCU voltage selection J15 (3 pin) 2-3: MCU is powered from 5V (not FM4-U120-9B560-MEM) FM4-U120-9B560-MEM can be used with 3V3 only Open: Run-Mode and Programming-Mode Operation of MD1 J17 (2 pin)
  • Page 24 Jumper – Default (Run mode, CMSIS-DAP) FM4-U120-9B560 supports 5V and 3.3V operation FM4-U120-9B560-MEM supports only 3.3V operation USBF USBF SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 25 Jumper – Programming Mode (USB Direct Mode) (U5V) 3V/5V USBF USBF (U5V) Prog SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 26 USB-host (CN4): Close jumper J9 ▪ 3.3V or 5V • Jumper J15 selects the target voltage ✓ FM4-U120-9B560 can operate 3.3V or 5V ✓ FM4-U120-9B560-MEM can operate 3.3V only • Default: J15: 1-2 (3.3V) SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 27 Software SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 28 Software Examples (1/2) Simple Software ▪ Simple example that demonstrates the usage of some peripherals • Available for IAR EWARM or KEIL µVision: <drive:>\sw-examples\ www.cypress.com • mb9bf56xr_template ✓ ‚Empty‘ project as base for user applications • mb9bf56xr_adc_dvm ✓ Digital Voltage Meter based on the A/D-Converter and UART •...
  • Page 29 : Example for serial communication (UART) mb9bf56xr_pdl_template : Project frame for user applications based on PDL ▪ Functional test • tp_sk-fm4-u120-9b560 ✓ Program for Please check the jumper setting the board features (LEDs, buttons, ADC, USB, ...) SLIDE OWNER...
  • Page 30 USB Virtual-COM port ✓ Allows UART communication via the PC’s USB connection ✓ Onboard UART-2-USB converter (via CN3, CMSIS-DAP) ✓ Install the latest version from here: http://www.cypress.com/documentation/software-and-drivers/cmsis-dap- spansion-cypress-fm-link • FLASH USB DIRECT Programmer ✓ Microcontroller Flash programming (via CN4, USB-Device-Port) ✓...
  • Page 31 Flash Programming SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 32 ▪ • FLASH USB DIRECT Programmer via CN4 (USB) ✓ Install the latest version from here: http://www.cypress.com/documentation/software-and-drivers/flash-usb-direct- programmer-1 ✓ USB driver is located in subdirectory of FLASH USB DIRECT Programmer • FLASH MCU Programmer via CN3 (Serial by use of virtual COM-port) ✓...
  • Page 33 Connect the board via USB-Device (CN4) to the USB-Port of the PC ✓ If connected for first time Windows OS may ask for a driver See subfolder ‚driver‘ of USBdirect installation path <drive:>\tools\USBDIRECT\driver • Start the FLASH USB DIRECT Programmer ✓ Install from here: http://www.cypress.com/documentation/software-and- drivers/flash-usb-direct-programmer-1 SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 34 Flash Programming via CN4 (USB Direct) Jumper setting PRG-mode using USB direct (U5V) 3V/5V USBF USBF Connect (U5V) Prog SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 35 Flash Programming via CN4 (USB Direct) ▪ Choose the right target MCU MB9BF568M/N/R ▪ Browse for the programming file (*.srec or *.hex) • IAR: see subfolder <project>\example\IAR\output\release\exe • ARM/KEIL: see subfolder <project>\example\ARM\output\release ▪ Adjust the corresponding virtual COM-port Select MCU: MB9BF568M/N/R Select file (*.srec;...
  • Page 36 Flash Programming via CN4 (USB Direct) Jumper setting RUN-mode using USB direct (U5V) 3V/5V USBF USBF Connect (U5V) SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 37 When connected for first time Windows OS may ask for ‚spansionusbvcomm.inf‘ <drive:>\drivers\cmsis-dap • Use the FLASH MCU Programmer for FM3/FM4 ✓ Install the latest version from here: http://www.cypress.com/documentation/software-and-drivers/flash-mcu- programmer-1 Note: Do not connect CN4 to PC/USB while using serial programming SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 38 Flash Programming via CN3 (Serial) Jumper setting PRG-mode using CMSIS-DAP (serial communication) Connect (U5V) 3V/5V USBF USBF (U5V) Prog SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 39 Flash Programming via CN3 (Serial) ▪ Choose the right target MCU MB9BF568M/N/R ▪ Select 4MHz Crystal Frequency ▪ Browse for the programming file (*.srec or *.hex) • IAR: see subfolder <project>\example\IAR\output\release\exe • ARM/KEIL: see subfolder <project>\example\ARM\output\release ▪ Adjust the corresponding virtual COM-port Select MCU: MB9BF568M/N/R Select 4MHz Crystal Frequency Select file (*.srec / *.hex)
  • Page 40 Flash Programming via CN3 (Serial) Jumper setting RUN-mode using CMSIS-DAP (serial communication) Connect (U5V) 3V/5V USBF USBF (U5V) SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 41 JTAG Debugger SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 42 Select used JTAG-adapter within IDE tool chain (No jumper setting is required) ▪ Additional virtual COM port is provided by CN3 ✓ Install the latest version from here: http://www.cypress.com/documentation/software-and-drivers/cmsis-dap- spansion-cypress-fm-link ✓ Please set jumper J19 and J20 accordingly SIN0/SOT0 CN3 (USB)
  • Page 43 CMSIS-DAP Firmware Update Please see instructions coming with Firmware update package! Install latest version from here: http://www.cypress.com/documentation/software-and-drivers/cmsis-dap- spansion-cypress-fm-link CMSIS- Virt. COM (U5V) 3V/5V USBF USBF (U5V) Prog/Run Prog/Run SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 44 Test it by Terminal using CMSIS - DAP ▪ The microcontroller on the FM4-U120-9B560(-MEM) is already preprogrammed with a test application (<drive:>\sw-examples\testsoftware) • Install latest version from here: Install latest version from here: http://www.cypress.com/documentation/software-and-drivers/cmsis-dap- spansion-cypress-fm-link • Connect the starter kit to CN3 (CMSIS-DAP) with your PC ✓...
  • Page 45 JTAG Adapter CMSIS-DAP – Using IAR Setup in IAR EWARM (1) Navigate to project options: Via Files-List Right-click at the project Select [Options...] Or via menu tab [Project] Select [Options...] SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 46 JTAG Adapter CMSIS-DAP – Using IAR Setup in IAR EWARM (2) Setup Project Debbuger Options (1) Navigate to [Debugger] (2) Select tab [Setup] (3) Select driver [CMSIS-DAP] (4) Select in [CMSIS-DAP] (5) Select tab [JTAG/SWD] (6) Select [SWD] SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 47 JTAG Adapter CMSIS-DAP – Using Keil Setup in Keil µVision (1) Navigate to project options: Via Project Right-click at the project Select [Options...] Or via menu tab [Project] Select [Options...] SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 48 JTAG Adapter CMSIS-DAP – Using Keil Setup in Keil µVision (2) Setup Debug & Utilities (1) Select tab [Debug] (2) Select [CMSIS-DAP Debugger] (3) Select tab [Utilities] (4) Select [CMSIS-DAP Debugger] SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 49 IAR Embedded Workbench Installation Getting Started Open Project Build Project Debug Project SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 50 IAR Workbench Getting Started ▪ Install EWARM from IAR-CD or download latest version from IAR Website • EWARM size-limited (32k) or time-limited (full) Evaluation Version ✓ http://supp.iar.com/Download/SW/?item=EWARM-EVAL ▪ Start EWARM Workbench ▪ Choose File → Open → Workspace • e.g.: <drive:>\sw-examples\mb9bf56xr_gpio-v11\example\IAR\mb9bf56xr_io.eww SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 51 IAR Workbench – Main Window ▪ IAR Workbench • Workspace on left side of Workbench window ✓ If hidden then View→Workspace • Source files on right side of Workbench window as tabbed windows • Project open File → Open → Workspace → *.eww •...
  • Page 52 IAR Workbench – Menu Bar ▪ IAR Menu Bar File Control Configuration Build Control (new, open, (compile, make, Control save, etc.) stop build) (e.g. RAM or ROM debugging) Navigation Control Debug Control Edit Control (Find, Bookmarks, File (Breakpoint, start (cut, copy, Navigation, etc.) Debug w/ and w/o paste, undo,...
  • Page 53 IAR Workbench – Workspace ▪ IAR Workspace Window Project Name Sub Folder Modules Main Modules Module Includes Project Description Project Built Output SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 54 IAR Workbench – Making Project ▪ Making the Project • Use Make-Icon ( ), <F7> or Menu: Project→Make • Check for no errors in Output window below • Build errors are indicated by In Output window and Source view SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 55 IAR Workbench – Download to Target ▪ Download to Target and Start Debugging • Icon, <Ctrl>-D, or Project→Download and Debug • A new menu bar will occur on sucessful connection to target Step Run to Reset Step Debugging Cursor Target Over Stop Step...
  • Page 56 IAR Workbench – Debug (1) ▪ Source Window • The Source windows do not change contents but get additional information ✓ Current line (PC): ✓ Halted on Breakpoint: ✓ Halted on Data break (example): ▪ Disassembly Window • Shows ‘pure‘ disassebly view •...
  • Page 57 IAR Workbench – Debug (2) ▪ Watch Window • Watch ✓ Expressions/Variables have to be added by user and are updated by Halt/Breakpoint • Quick Watch ✓ The Quick watch allows the user to calculate and recalculate expressions even with variables ✓...
  • Page 58 IAR Workbench – Simulator ▪ Simulator • Mark Project File in Workspace • Choose Project→Options • Choose Simulator in Debugger Setup • Start Simulator with usual Icon SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 59 KEIL µVision Installation Getting Started Open Project Build Project Debug Project SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 60 KEIL µVision IDE and Debugger Getting Started ▪ Install µVision from KEIL-CD or download latest version from KEIL Website • Evaluation Version ✓ https://www.keil.com/demo/eval/arm.htm ✓ Registration required ▪ Install ULINK-ME • Special installation is not needed, because ULINK-ME acts as a USB Human Interface Device (HID) and thus needs no extra USB driver ▪...
  • Page 61 KEIL µVision – Getting Started ▪ Choose Menu: Project→Open Project... • Browse to: <drive:>\sw-examples\mb9bf56xr_gpio-v11\example\ARM\ • Choose mb9bf56xr_gpio.uvproj SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 62 KEIL µVision – Main Window ▪ KEIL µVision • Project window on left side of IDE window ✓ Choose: View→Project Window if hidden • Source files on right side of IDE window as tabbed windows • Output window on bottom side of IDE window SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 63 KEIL µVision – Menu Bars (1) ▪ Menu Bar 1 • Can be moved in bar window area or set floating File Control Navigation Control Project (new, open, (Bookmarks + search, etc.) Window View save, etc.) (Text search, search in files, etc.) Edit Control Debug Control (cut, copy, paste, etc.)
  • Page 64 KEIL µVision – Menu Bars (2) ▪ Menu Bar 2 • Can be moved in bar window area or set floating Configuration Build Control Manage Books, Control (Compile [Translate], File Extensions, (e.g. RAM or ROM Build, Rebuild, etc.) Environment debugging) MB9BF51x Release Download Target...
  • Page 65 KEIL µVision – Project Window ▪ µVision Project Window Project Name Startup Code Subfolder Startup Code Source and Header Files Main Project Code Subfolder Main Project Code Source and Header Files Project Description Subfolder and Abstract File SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 66 KEIL µVision – Making Project ▪ Making the Project • Use Rebuild Icon ) or Project→Rebuild all target files • Check for no errors in Output window below • Build errors are shown in Output window. ✓ Can be double-clicked by showing the source line with a blue arrow SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 67 KEIL µVision – Debug (1) ▪ Start Debugging • Download to target first, when MCU Flash does not contain the current application openend and built in the IDE ✓ Use Download Icon ( ) or Menu: Flash→Download • Start Debug Session ✓...
  • Page 68 KEIL µVision – Debug (2) ▪ Debugging Icon Bar • During a Debug Session there will be visible a new icon bar Reset Step Control Show Windows Tool Box (Command, (Step in, out, etc.) Disassembly, Symbols, (can be Target Registers, Call Stack) customized) Debug Start/...
  • Page 69 KEIL µVision – Debug (3) ▪ Source View • The Source windows do not change contents but get additional information Active Breakpoint Disabled Breakpoint Current Program Counter Current Cursor Line of Source Code Code Lines with compiled Instructions (dark grey SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 70 KEIL µVision – Debug (4) ▪ Disassembly View • Mixed mode is selectable and deselectable Active Breakpoint Disabled Breakpoint Current Program Counter Current Cursor Line of Code highlighted in yellow background ( ) SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 71 KEIL µVision – Debug (5) ▪ Memory Window • Up to 4 Memory windows can be displayed in tabs • Memory is updated during runtime • Memory window tabs are shared with Watch windows ▪ Register View • Register view is a tab of the Project window •...
  • Page 72 KEIL µVision – Debug (6) ▪ Variable Windows • Watch Windows ✓ Up to 2 Watch windows are sharing their tabs with e.g. Memory and Local views ✓ Updated during runtime ✓ Any changes are highlighted in dark blue text backround color ✓...
  • Page 73 KEIL µVision – Trace (ULINK ME) ▪ Trace via ITM • Simple Trace views via Instrumentation Trace Macro is supported by µLINK ME ✓ Records ✓ Exceptions ✓ Counters SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 74 KEIL µVision – Trace (ULINK Pro) (1) ▪ Trace via ETM • Check settings in menu: Flash→Configure Flash Tools... Tab:Debug enables ETM pins SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 75 KEIL µVision – Trace (ULINK Pro) (2) ▪ Instruction Trace • Real Time Trace recording • Output can be filtered by several ETM and ITM events • Trace buffer is held in PC memory and transfered to µVision on break SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 76 KEIL µVision – Simulator ▪ Simulator • The Core Simulator can be selected by the menu: [Flash] → [Configure Flash Tools...] → [Debug] and then choosing [Use Simulator] • Look & feel is like using ULINK debugger • Controlable also with *.ini files SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 77 Finally SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 78 Cypress Support ▪ Please check the following website, for any available updates www.cypress.com SLIDE OWNER SHOW TITLE MM/DD/YY...
  • Page 79 According to the European WEEE-Directive and its implementation into national laws we take this device back. • For disposal please send the device to the following address: Cypress Semiconductor 198 Champion Court San Jose, CA 95134 USA Tel: +1-408-943-2600 ▪...
