As you can see in Figure 16 the routing of these components is very important in order to reduce EMI effects. These
components have to be placed on the same layer as the MCU. The connection of C1 and C2 to the Vss pin must be
routed in a star way and so close as possible. The only vias should be placed to connect this ground star routing to the
ground plane in other layer, never use vias to connect these components with the corresponding MCU pins.
C3*
C1
4MHz
C2
Rd
0R
C3*, C4* : Stray
C4*
capacitance of PCB
For a proper performance of the oscillator circuit it is necessary to match the load capacitors (C
when the MCU, PCB or crystal are replaced for a different one.
As a result of this matching test the value of C
the Equation.
www.cypress.com

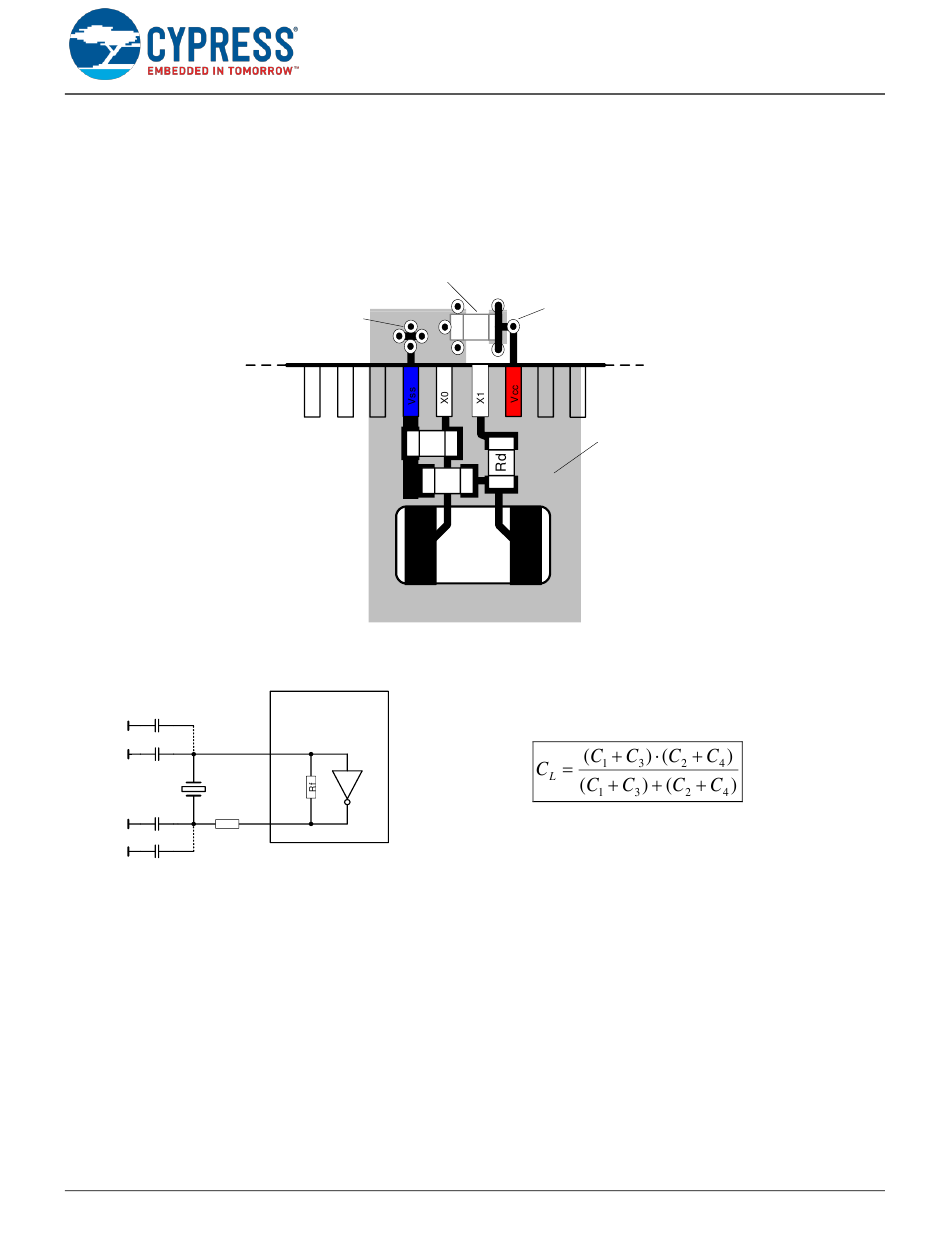

Figure 16. Layout example for crystal oscillator circuit
