Test points

The FR81S devices support several clock output functions for failure analysis in development, mass production or in
the field. MONCLK out could be used e.g. for clock calibration of main or sub oscillator.
3.10

Other documents

For further detailed information please refer to the application notes on the web page.
www.cypress.com

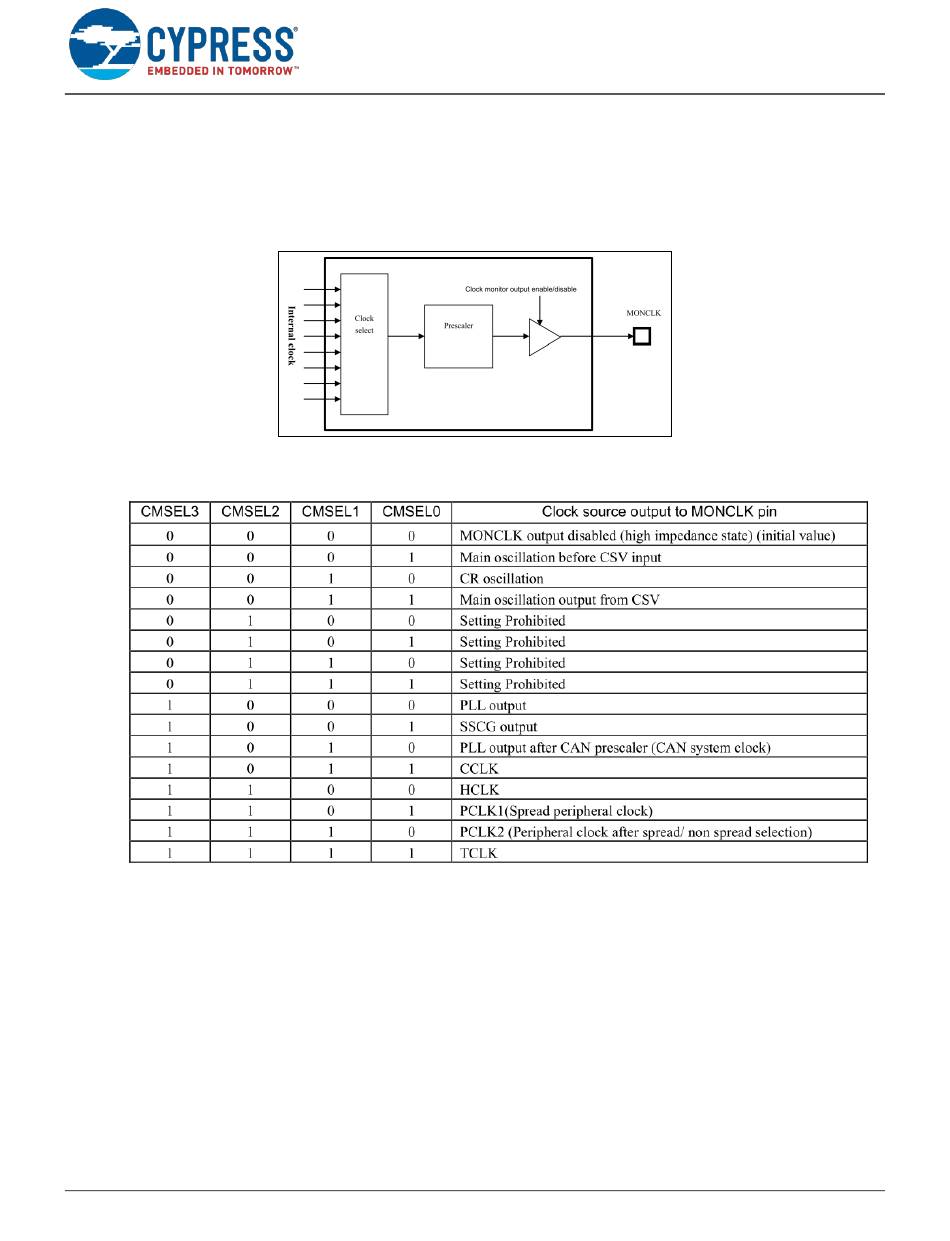

Figure 18. MONCLK internal clock select and prescaler
Table 8. Supported output functions for test purposes
