STEP 1 (Continued)

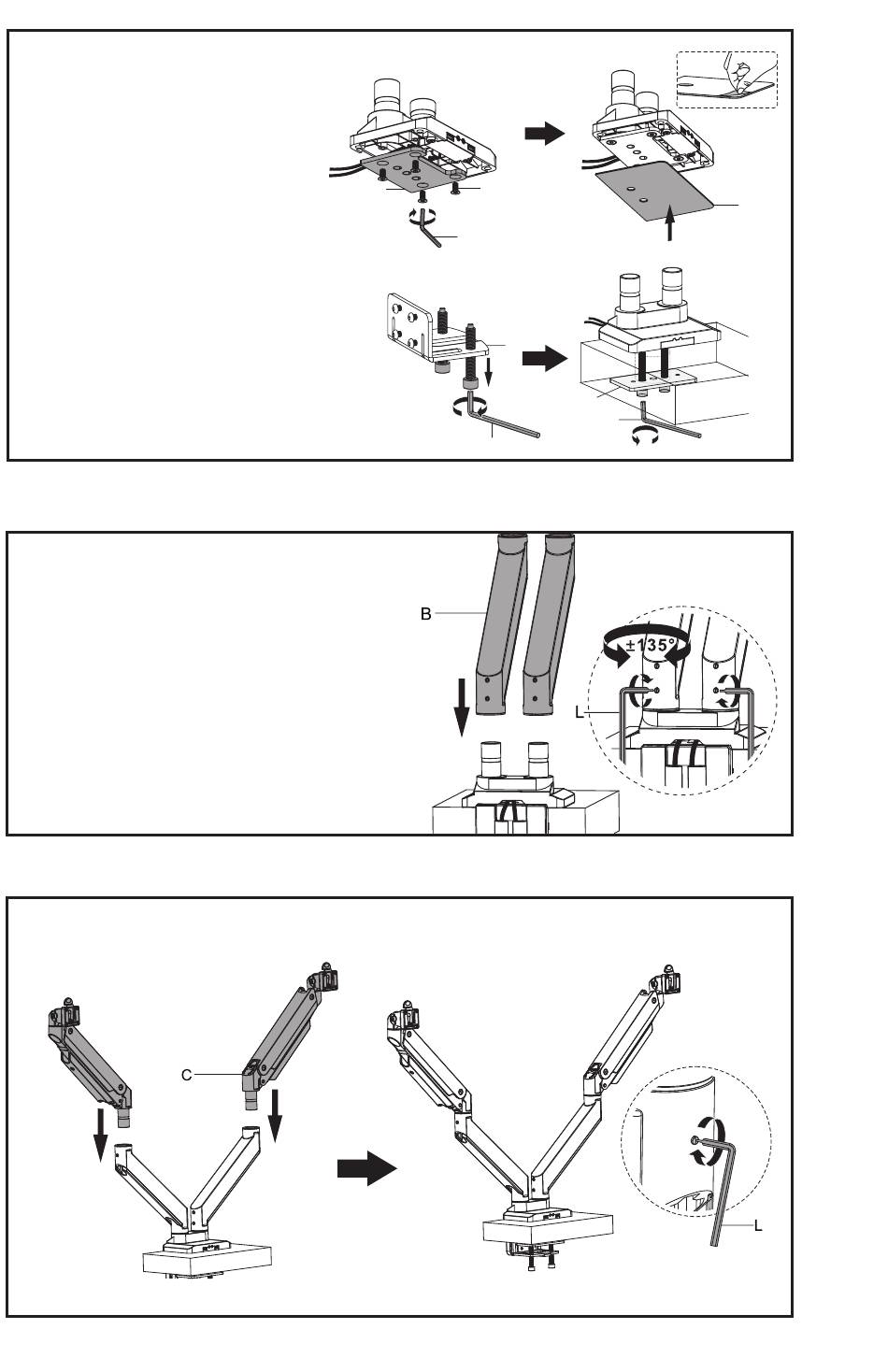

OPTION B: Grommet Base
Installation
Attach grommet plate (F) to base (A)
using flat head bolts (K) and tighten
with 4mm Allen wrench (M). Apply
soft pad (G) to underside of base.
Position base over grommet hole in
desktop, or drill two 3/8" (10mm)
holes 1-25/32" (45mm) apart through
the desk for installation. Remove
clamp bolts from clamp (J) using
6mm Allen wrench (N) if needed.
Insert clamp bolts with clamp plate
(E) up through the underside of the
desk and tighten to the base using
the 6mm Allen wrench (N).
STEP 2
Place lower arms (B) on top of base, and secure by turning
the lower screws in back with 3mm Allen wrench (N).
(NOTE: The upper screws in back do not have a function on
this model).
STEP 3
Place gas spring arms (C) on top of lower arm, and secure by turning the screw in back with 3mm
Allen wrench.
4
K
F
M
J
N
G
E
N
