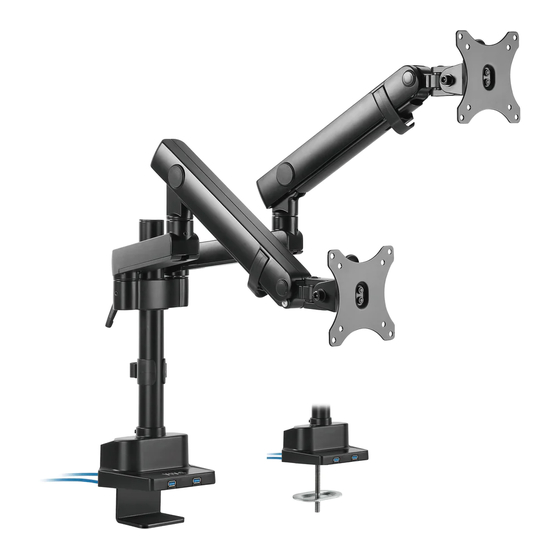

Pneumatic Arm Dual Monitor Desk Mount with USB
Instruction Manual
SKU: STAND-V102BDU
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v102bdu
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo STAND-V102BDU
Summary of Contents for Vivo STAND-V102BDU
- Page 1 Pneumatic Arm Dual Monitor Desk Mount with USB Instruction Manual SKU: STAND-V102BDU Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v102bdu GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 17.6lbs Failure to do so may result in serious injury. (8 kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Insert 6mm Allen wrench (L) into socket on top of base (A) and turn screw counter-clockwise to lower clamp. - Page 4 STEP 2 Screw pole (D) into base, and tighten the grub screw using the 3mm Allen wrench (K). STEP 3 Attach cable clip (H) to pole. Slide arm support (F)) onto pole and tighten the knob to secure. Turn the handle upward to the limit to tighten the dual arm adapter to the pole.
- Page 5 STEP 5 Install the VESA plates (E) to monitors using M4x12 bolts (M-A) or M5x12 bolts (M-B) with washers (M-C), making sure the arrow in back is pointing up. STEP 6 Pull back the release levers on the support brackets, then place the monitors with VESA plates into the support.
- Page 6 STEP 8 Slide cable covers on lower arms forward to remove. STEP 9 Install lower cable clip (G) to base. Organize cables, then reinstall cable covers to lower arms.
- Page 7 Adjust as Desired...
